Installation Instructions
Preparing for Installation
WARNING
• If the gas or electric service provided does not meet the
product specifications, do not proceed with the installation.
Call the dealer, the gas supplier or a licensed electrician.
• Before installing the range, you must locate and secure the
anti-tip bracket as instructed.
• Be sure that the unit is not connected to gas or power
before proceeding with the following sections.
IMPORTANT: Within the Commonwealth of Massachusetts, this
appliance must be installed by a licensed plumber or gas fitter.
Unpacking the Range
Unpack the range and verify that all required parts have been
provided. If any item is missing or damaged, please contact
your dealer immediately. Do not install a damaged or incomplete
appliance. The customer must report cosmetic issues within 30
days of installation.
Parts List
• 2 grates
• 1 small standard burner cap
• 1 small standard burner ring
• 2 large standard burner caps
• 2 large standard burner rings
• 1 inner SimmerSear™ burner cap
• 1 outer SimmerSear burner cap
• 1 SimmerSear burner ring
• 2 standard oven racks
• 1 GlideRack oven rack
• Anti-tip bracket w/screws and anchors
• Meat probe
• Dacor Stainless Steel Cleaner
• Literature kit
Install the Anti-Tip Bracket and Foot
Locate the anti-tip bracket included in the parts box.
There are two ways to mount the anti-tip bracket:
• Floor mounting (preferred method)
• Wall mounting (alternate method). Use this method if floor
mounting is not suitable. If the front panel of range is further
than 27 1/2” (69.9 cm) from the back wall or if the flooring is
too thick (see Installing the Anti-Tip Bracket on the Wall),
the wall mounting method may not be used and the floor
mounting method must be suitable.
Installing the Anti-Tip Bracket on the Floor
WARNING
To perform its intended function, the anti-tip bracket must be
attached as instructed to the concrete slab or wood sub-floor
below any floor coverings (including cement board) on top. Do
not attach the anti-tip bracket directly to floor coverings such as
ceramic/asphalt tile or linoleum.
Four (4) plastic anchors are provided along with three sizes (4
each) of #8 or #12 Phillips head screws for attaching the anti-
tip bracket to the floor. Use both the anchors and four (4) of the
screws when attaching the bracket to a concrete sub-floor. Do not
use the anchors when attaching to a wood sub-floor.

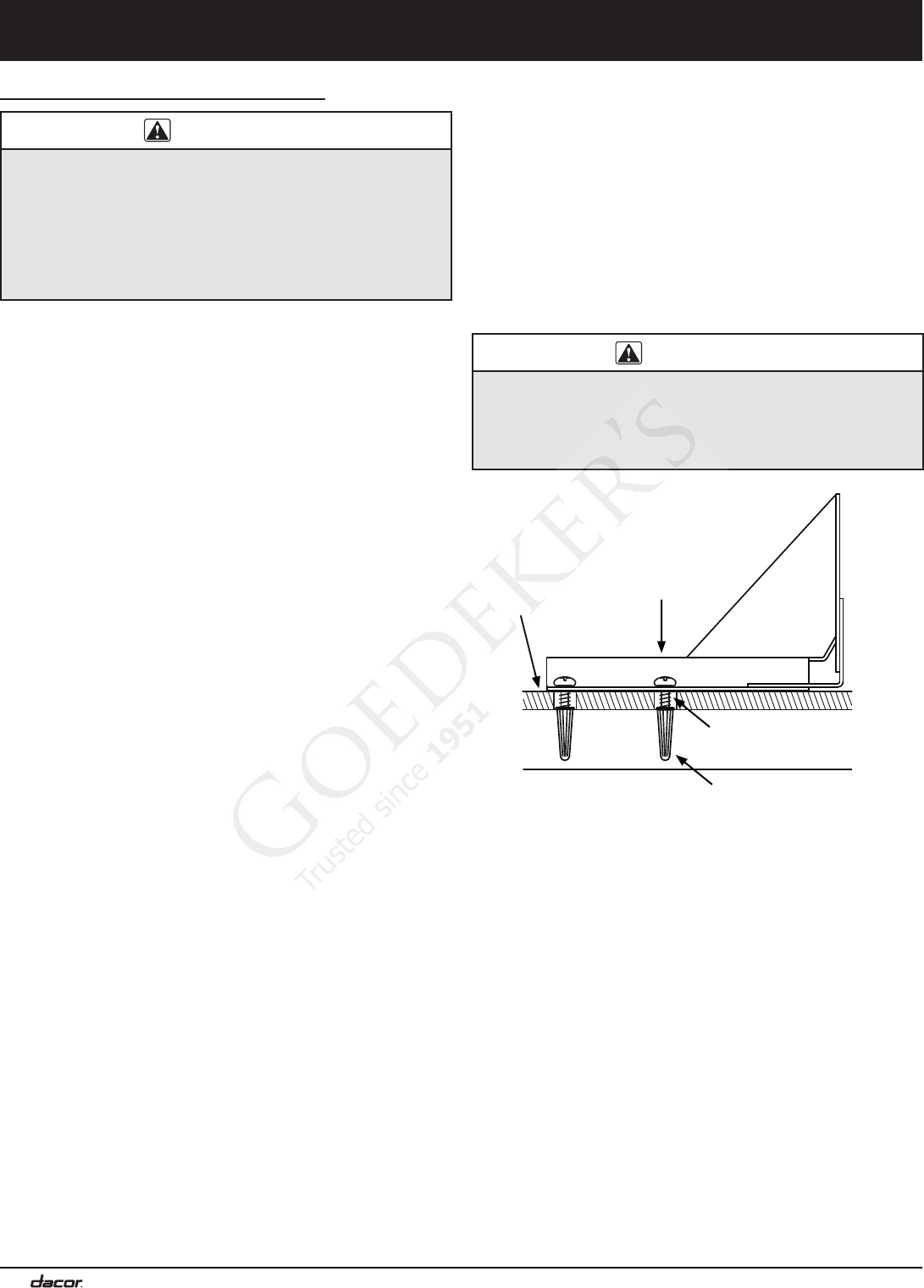

Screws attached to sub-
floor below floor covering
Floor
covering
Anti-tip
bracket
Sub-floor
Concrete anchors shown, do
not use for wood sub-floor
