Data Sheet
DATEFILEREV BY EDV NO
Date
Checked
Drawn
Name
Scale
DESCRIPTION
Position
GENERAL TOLERANCE Basic material
Projection
Drawing.- No.
c Washable Definition
14-03-05
DaF
d
revised MatchCode
14-07-25
AL

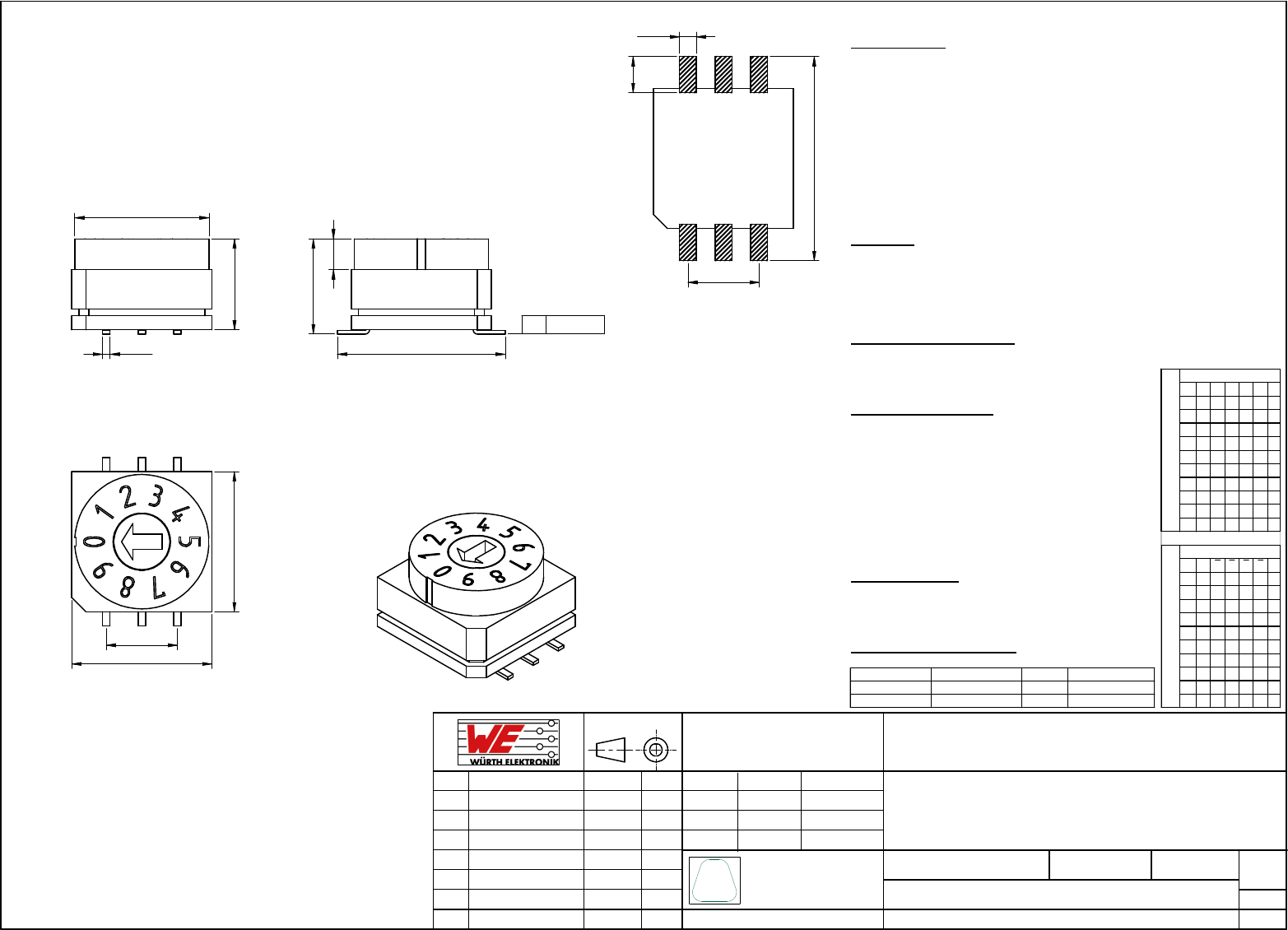

WS-ROSV Rotary Switch 10x10mm, 10 position, SMD version
42852132081x
42852132081x.dft
09-11-05
Jelisarow
3:1
System :Solid Edge V20
WE
eiCan
CAD
Würth Elektronik
eiCan
.x = +/- 0,2
.xx = +/- 0,15
A4
SIZE
11-09-30
warning text
a
WJ
This electronic component is designed and developed with the intention
for use in general electronics equipments.
Before incorporating the components into any equipments in the field
such as aerospace, aviation, nuclear control, submarine, transportation,
(automotive control, train control, ship control), transportation signal,
disaster prevention, medical, public information network etc. where
higher safety and reliability are especially required or if there is possibility
of direct damage or injury to human body, Wurth Elektronik must be
asked for a written approval.
In addition, even electronic component in general electronic equipments,
when used in electrical circuits that require high safety, reliability
functions or performance, the sufficient reliability evaluation-check for the
safety must be performed before by the user before usage.
12-02-02new contact ratingb WJ
09-11-05
HSU
14,60
2,60
5,08
1,20
C 41
C 28
RECOMMENDED LAYOUT
TECHNICAL CHARACTERISTICS
SPECIFICATION
>Contact Rating:
Switching: 150mA, 24VDC
Non-Switching: 400mA, 24VDC
>Contact Resistance:
Initial: 80mOHM max.
After Life Test: 200mOHM max.
>Insulation Resistance: min. 100MOHM at 250VDC
>Dielectric Strength: 250VAC for 1 minute
>Operating Force: 700g max.
>Life cycle: 10.000 steps
>Position: 10
>Actuator: Arrow type
MATERIAL
>Cover: LCP UL 94V-0, color grey
>Base: LCP UL 94V-0, color grey
>Actuator: PA 66 UL 94V-0
>Contact: Gold Plated
>Terminal: Gold Plated
SOLDERING INFORMATION
>Terminal in SMD version
>Reflow soldering according to
JEDEC J-STD 020 Hot Air
WASHABLE DEFINITION
Please do not submerse washable products into water
or cleaning agents or put them in locations exposed to
water or liquids completely. When cleaning by hand
(brushing), please do not use excessive force on our
switch to avoid malfunction afterwards, because you
could deform function relevant areas or you could
damage sealing functions. Do not clean washable
series immediately after soldering. The cleaning agent
may be absorbed into the switch through respiration
while the switch cools.
ENVIRONMENTAL
>Storage condition: -40°C ~ +85°C
>Operation condition: -40°C ~ +85°C
>Compliance: Lead Free, ROHS, Reach
PACKAGING INFORMATION
>Tape and Reel
2,20
6,80
12,00
6,50
0,54
10,00
5,08
10,00
C 1 2 4 8
0
0
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
C 1 2 4 8
0
0
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
Real Code
10 Position
Complement Code
10 Position
Part number Color of Actuator Position Code
428 521 320 810 light grey 10 Real Code
428 521 320 811 blue 10 complement code
h 0,10 Ref.
Scale - 3:1
9,60 ±0,1
