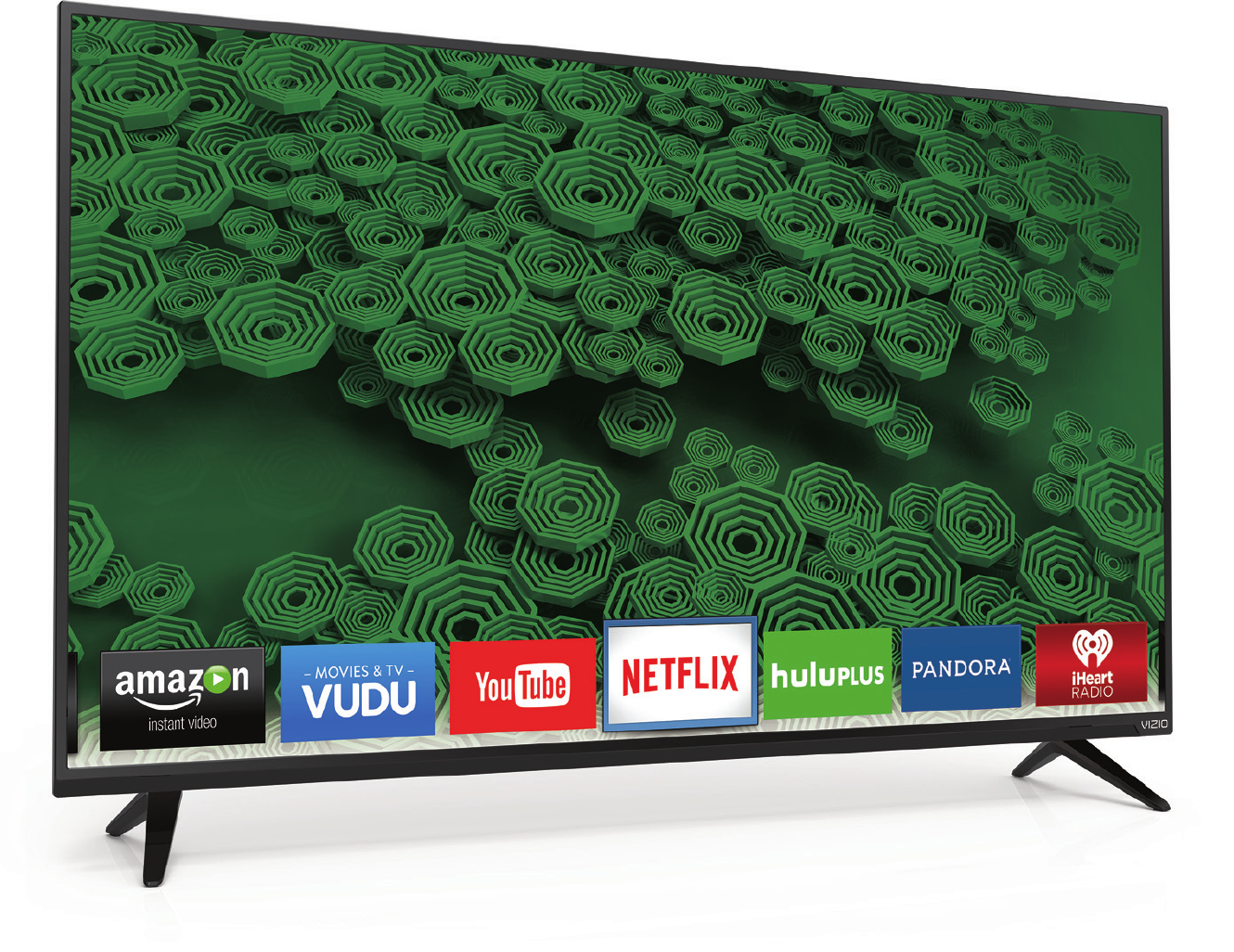

VIZIO USER MANUAL Models D40u-D1, D50u-D1, & D55u-D1
Safety & Certification THANK YOU FOR CHOOSING VIZIO IMPORTANT SAFETY INSTRUCTIONS And congratulations on your new VIZIO HDTV. Your TV is designed and manufactured to operate within defined design limits. Misuse may result in electric shock or fire. To prevent your TV from being damaged, the following instructions should be observed for the installation, use, and maintenance of your TV. Read the following safety instructions before operating your TV.
• Do not apply pressure or throw objects at your TV. This may compromise the integrity of the display. The manufacturer’s warranty does not cover user abuse or improper installations. • Do not use your TV if any abnormality occurs. If any smoke or odor becomes apparent, unplug the power cord and contact your dealer immediately. Do not try to repair your TV yourself. • The power cord must be replaced when using different voltage than the voltage specified. For more information, contact your dealer.
TELEVISION ANTENNA CONNECTION PROTECTION If an outside antenna/satellite dish or cable system is to be connected to the TV, make sure that the antenna or cable system is electrically grounded to provide some protection against voltage surges and static charges.
For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS Studio Sound is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved. This product qualifies for ENERGY STAR in the “factory default” settings and this is the setting in which power savings will be achieved.
Table Of Contents Getting to Know Your TV..............................................7 Deleting the Custom Audio Mode...................................................32 Changing the DLNA Name of Your TV.............................................46 Inspecting the Package Contents.......................................................7 Setting Timers......................................................................................33 Adjusting the CEC Settings....................................
Getting to Know Your TV 1 INSPECTING THE PACKAGE CONTENTS Before installing your new TV, take a moment to inspect the package contents. Use the images below to ensure nothing is missing or damaged.
1 INSTALLING THE TV To install the stands: After removing the TV from the box and inspecting the package contents you can begin installing the TV. Your TV can be installed in two ways: • On a flat surface, using the included stand • On a wall, using a VESA-standard wall mount (not included) Installing the TV Stand Your TV includes a stand designed to support the weight of the TV and keep it from falling over.
1 Installing the TV on a Wall To mount your TV on a wall, you will need a wall mount. Consult the information below to find the appropriate mount for your TV model: Installing a TV on a wall requires lifting. To prevent injury or damage to the TV, ask someone to help you. Screw Size: Hole Pattern: Weight w/o Stand: D40u-D1 D50u-D1 D55u-D1 M6 M6 M6 200mm (V) x 200mm (H) 200mm (V) x 200mm (H) 300mm(V) x 300mm(H) 17.19 lbs (7.8 kg) 30.3 lbs (13.62 kg) 36.6 lbs (16.
1 REMOTE SENSOR & POWER INDICATOR When using the remote, aim it directly at this sensor. The power indicator flashes on when the TV turns on, then goes out after several seconds. To keep the power indicator on as long as the TV is on, see Turning the Power Indicator On or Off on page 46.
1 USB - Connect a USB thumb drive to play photo, music, or video. HDMI - Connect an HDMI device. Component/Composite - Connect a component or composite device. HDMI - Connect an HDMI device. Optical Audio Out - Connect an optical/SPDIF audio device, such as home audio receiver. Stereo Audio Out - Connect an RCA audio device, such as sound bar. Coaxial - Connect a coaxial cable from cable, satellite, or antenna. Ethernet - Connect an Ethernet cable from home network. Power - Press to turn on the TV.
1 Replacing the Batteries APP LAUNCHER Quickly launch the pictured App. INPUT Change the currently displayed input. A/V CONTROLS Control the USB media player and streaming video playback. CLOSED CAPTIONS Turn closed captions on and off. EXIT Close the on-screen menu. OK Select the highlighted option. BACK Go to the previous on-screen menu. VOLUME UP/DOWN Increase or decrease loudness of the audio. MUTE Turn the audio off or on. WIDE Change the display mode. NUMBER PAD Manually enter a channel.
Connecting Your Devices 2 CONNECTING A DEVICE Your TV can be used to display output from most devices. 1. Verify that your device has a video port that matches an available port on the TV (HDMI, Component, etc.). 2. Turn the TV and your device off. 3. Connect the appropriate cable (not included) to the TV and the device. 4. Turn the TV and your device on. Set the TV’s input to match the connection you used (HDMI-1, HDMI-2, etc.).
2 CONNECTING A DEVICE - AUDIO & VIDEO CABLE TYPES AV CABLE COAXIAL CABLE COMPONENT CABLE HDMI CABLE AV cables (or Composite cables) are the traditional way of connecting your devices to your TV. Video signals are sent over the yellow connector while audio is sent over the red and white connectors. Coaxial cables are the traditional way of connecting antennas and cable television signals to your TV. Coaxial cables carry both audio and video signals through a single connector.
2 CONNECTING AN AUDIO DEVICE Your TV can output sound to an audio device, such as a receiver or sound bar. 1. Verify that your device has an audio port that matches an available port on the TV (Optical, RCA, or HDMI). 2. Turn the TV and your audio device off. 3. Connect the appropriate cable (not included) to the TV and the device. Home Audio Receiver VIZIO Sound Bar 4. Turn the TV and your device on. RCA CABLE GOOD • ANALOG STEREO CONNECTION • 2.
2 CONNECTING AN AUDIO DEVICE - AUDIO CABLE TYPES RCA CABLE OPTICAL/SPDIF CABLE HDMI CABLE RCA cables (or Composite cables) are the traditional way of connecting your devices to your audio device. Audio signals are sent over the red and white connectors. Optical/SPDIF cables transmit audio signals as pulses of light through a cable made of plastic fibers. Audio signals are digitally transmitted between devices.
2 CONNECTING AN AUDIO DEVICE - ARC Without HDMI ARC With HDMI ARC Without an HDMI ARC setup, your TV will transmit audio signal from the built-in tuner and VIA apps to your home audio receiver through a separate audio connection. With an HDMI ARC setup, the audio connection between your TV and Home Audio Receiver can be removed. The HDMI cable will transmit audio signal to and from your TV with an all-digital audio/video connection.
2 CONNECTING TO YOUR NETWORK Your TV is Internet-ready. It can be connected to your home network with a Wired or Wireless connection. Connecting to a Wired Network (Best) 1. Connect an Ethernet cable to your router and to the Ethernet port on the back of the TV. See below. Connecting to a Wireless Network 1. Ensure you have a router or modem broadcasting as high-speed wireless signal (802.11n recommended). 2. Use the Guided Network Setup to configure the TV. See Using Guided Setup on page 48. 2.
Completing The First-Time Setup The first time you turn on the TV, the Setup App will guide you through each of the steps necessary to get your TV ready for use. Before you begin the first-time setup: • Your TV should be installed and the power cord should be connected to an electrical outlet. • Your devices should be connected. • If you have a wireless network, have the network password ready. • If you are connecting to your network with an Ethernet cable, connect it to the Ethernet port on the TV.
3 5 6 Select your time zone and press OK. 7 Use the Arrow and OK buttons on the remote to review the Terms Of Service and Privacy Policy. Select the name of your wireless network from the list of available networks and press OK. When you are finished, highlight I Accept and press OK. 8 Enter the network password using the on-screen keyboard, then highlight Connect and press OK. Enter your E-mail Address, First Name, Last Name, and Zip Code using the on-screen keyboard. Highlight Next and press OK.
3 10 9 Use the Arrow buttons on the remote to highlight your TV source and press OK. If the TV Signal channel scan screen appears, the TV will need to scan for channels, which takes several minutes. Use the arrow buttons on the remote to highlight Begin Scan and press OK. Note: Number of ports may differ by TV. If you have cable TV, select whether you have a cable box or if you connect the TV directly to a cable from the wall.
Using the On-Screen Menu 4 Your TV features an easy-to-use on-screen menu. NAVIGATING THE ON-SCREEN MENU CHANGING THE INPUT SOURCE To open the on-screen menu, press the MENU button on the remote. You can also open the on-screen menu by pressing the VIA button and selecting HDTV Settings from the VIA Dock, then pressing OK. To open the on-screen menu, press the MENU button on the remote. External devices such as DVD players, Blu-ray Players, and video game consoles can be connected to your TV.
4 CHANGING THE SCREEN ASPECT RATIO not stretched, but the sides of the image are extremely stretched. If you are watching widescreen (1.85:1 or 2.35:1) content with black bars on the top and bottom, the black bars will still appear on the top and bottom of the display image. The TV can display images in five different modes: Normal, Stretch, Panoramic, Wide, and Zoom. Each mode displays the picture differently.
4 VIZIO VIEWING VIDEO WITH THE MENU OPENWide Zoom Normal Panoramic VIZIO When the on-screen menu opens, it covers the left-hand portion of the picture. The picture can be displayed in three different ways: • • • PICTURE Picture Mode 2D Brightness 3D Contrast Color Tint Sharpness + 50 + 50 Timer + 2. Press OK to cycle through the three display methods. 3. Press the Up Arrow button on the remote to the menu.
4 ADJUSTING THE PICTURE SETTINGS Your TV display can be adjusted to suit your preferences and viewing conditions. If you’ve changes to the settings for a picture mode, an asterisks appears after its name (see Saving a Custom Picture Mode on page 27). 3. Use the Arrow buttons on the remote to highlight Picture Mode, then use the Left/Right Arrow buttons to change the picture mode: • • To adjust the picture settings: 1. Press the MENU button on the remote. The on-screen menu is displayed. 2.
4 • Adjusting More Picture Settings To adjust more picture settings: 1. From the PICTURE menu, use the Arrow buttons to highlight More Picture, and then press OK. 2. Use the Arrow buttons to highlight the setting you wish to adjust, then press the Left/ Right Arrow buttons to change the setting: • • • • • Color Temperature See Adjusting the Color Temperature on page 26this page. Black Detail - Adjusts the average brightness of the picture to compensate for large areas of brightness.
4 Adjusting the Picture Mode Edit Settings Saving a Custom Picture Mode Locking/Unlocking a Custom Picture Mode Picture Mode Edit Settings allow you to make precise adjustments to the picture and to create picture modes to save groups of picture settings. Custom picture modes allow you to save a group of custom settings for various viewing conditions and video sources. • Changes made while on any preset picture mode will add an asterisk on the top right corner of the preset mode.
4 Deleting a Custom Picture Mode Custom picture modes that are no longer needed can be deleted. Inputs assigned to a deleted custom picture mode become assigned to the Calibrated picture mode. To delete a custom picture mode: 1. From the PICTURE MODE EDIT menu, use the Arrow buttons to highlight Delete Picture Mode, and then press OK. The DELETE PICTURE MODE window is displayed. To delete the user created Custom 1 picture mode, select the Delete button. Delete Cancel 2.
4 Adjusting the Color Tuner Settings The Color Tuner settings allow you to adjust the HSB color and 11 point white balance, turn color channels off for testing, and display color bar, flat, and ramp test patterns. The Color Tuner, 11 Point White Balance, and test patterns allow technicians to manually calibrate the TV. Calibration requires specialized training, an input with precisely set colors, and a specialized light meter. To adjust the HSB color settings: 1.
4 To show or hide the SMPTE Test Pattern: To show or hide the Flat Test Pattern: To show or hide the Ramp Test Pattern: 1. From the Color Tuner menu, use the Arrow buttons to highlight Color Tuner, and then press the Left/Right Arrow buttons until the SMPTE Test Pattern menu is displayed. 1. From the Color Tuner menu, use the Arrow buttons to highlight Color Tuner, and then press the Left/Right Arrow buttons until the Flat Test Pattern menu is displayed. 1.
4 ADJUSTING THE AUDIO SETTINGS • Lip Sync - Adjusts the synchronization between the display image and the accompanying audio track. To adjust the audio settings: • Digital Audio Out - Changes the type of processing for digital audio out and HDMI ARC output when connected to a home theater audio system. Select PCM or Bitstream. 1. Press the MENU button on the remote. The on-screen menu is displayed. 2. Use the Arrow buttons on the remote to highlight Audio and press OK. The AUDIO menu is displayed. 3.
4 Deleting the Custom Audio Mode To delete the custom audio mode that has been created: 1. Press the MENU button on the remote. The on-screen menu is displayed. 2. Use the Arrow buttons on the remote to highlight Audio and press OK. The AUDIO menu is displayed. 3. Use the Arrow buttons to highlight Delete Audio Mode and press OK. The TV displays, “To delete the user created custom audio mode, select the Delete button.” 4. Highlight Delete and press OK. 5. Press the EXIT button on the remote.
4 SETTING TIMERS Setting the Sleep Timer When activated, the TV’s sleep timer will turn the TV off after a set period of time. 1. Press the MENU button on the remote. The on-screen menu is displayed. 2. Use the Arrow buttons on the remote to highlight Timers and press OK. The TIMERS menu is displayed. 3. Use the Left/Right Arrow buttons on the remote to highlight the period of time after which you want the TV to go to sleep: 30, 60, 90, 120, or 180 minutes.
4 USING THE NETWORK CONNECTION MENU Your TV is Internet-ready, featuring both an Ethernet port and built-in high-speed Wireless-N. Connecting to a Wireless Network To connect to a wireless network whose network name (SSID) is being broadcast: If your TV is connected to a network with an Ethernet cable, you will not see the wireless network connection menu. You must disconnect the Ethernet cable to set up a wireless network connection. 1. Press the MENU button on the remote. The on-screen menu is displayed.
4 Connecting to a Hidden Network Testing Your Network Connection To connect to a wireless network whose network name (SSID) is not being broadcast: To test your network connection: 1. From the NETWORK menu, highlight Hidden Network and press OK. The ENTER ACCESS POINT NAME screen is displayed. 2. Using the on-screen keyboard, enter your network’s name (SSID), then highlight Connect and press OK. 3. Using the on-screen keyboard, enter your network’s password, then highlight Connect and press OK. 4.
4 SETTING UP CHANNELS You can use the TV’s Channels menu to: Selecting a Channel Source Adding New Channels Select the type of tuner input you will be using. You can select either Antenna (Over-the-air) or Cable (Out-of-the-wall) connections. Occasionally, you may need to add a new range of channels or add a new analog channel. You can do this by using the Partial Channel Search and Add Analog Channel options. This is quicker than scanning all possible channels.
4 Skipping Channels To add a single new analog channel: 1. From the CHANNELS menu, highlight Add Analog Channel and press OK. The ADD ANALOG CHANNEL menu is displayed. 2. Highlight Enter Channel # and use the Number Pad on the remote to enter the number of the channel you are adding. 3. Highlight Add Channel and press OK. The TV scans for the channel. 4. When the TV is done scanning for the channel, press the EXIT button on the remote.
4 LISTENING TO ALTERNATE AUDIO To use the Digital Language feature: Changing the Analog Audio Language Some analog over-the-air (free) and cable channels broadcast programs in more than one language. The TV’s Analog Audio feature allows you to listen to audio in an alternate language using Secondary Audio Programming (SAP). Not all programs are broadcast in SAP. The Analog Audio Language feature only works when the program being viewed is being broadcast with Secondary Audio Programming. 1.
4 SETTING UP CLOSED CAPTIONING Your TV can display closed captions for programs that include them. Closed captions display a transcription of a program’s dialogue. If the program you are viewing is not being broadcast with closed captions, the TV will not display them. The Closed Captions menu does not appear when an HDMI input is selected. 2. Use the Arrow buttons on the remote to highlight Closed Captions and press OK. The CLOSED CAPTIONS menu is displayed. 3.
4 Typical choices include: • Opaque background, transparent window—Only a strip of background appears behind the text, expanding as the text appears. This is the typical "As Broadcast" mode. • Opaque background and window in the same color—When text appears, the entire line fills with color at once. Text Background In the example below, the closed caption text is green, the background is black, and the window is red.
4 RENAMING DEVICES ON THE INPUT MENU You can rename the inputs to make them easier to recognize on the Input menu. For example, if you have a DVD player connected to the Component input, you can rename that input to display “DVD Player.” See Changing the Input Source on page 22. Input Port To change the name of an input: 1. Press the MENU button on the remote. The on-screen menu is displayed. 2. Use the Arrow buttons on the remote to highlight Devices and press OK. The DEVICES menu is displayed. 3.
4 CHANGING THE TV SETTINGS Using the System menu, you can: VIZIO • View system information • Change the on-screen menu language System Information Set time zone and local settings Time & Local Settings • • Set up parental controls • Resize the video size Wide • Change the TV’s DLNA Name • Adjust wide mode • Adjust the CEC settings • Adjust when the power indicator is illuminated • English Parental Controls View Mode TV Name To view technical data and status information about your TV
4 Setting the Time and Local Settings Using the Parental Controls Enabling or Disabling Program Ratings To ensure the correct time is displayed when you press the INFO button, set the TV’s time zone: The TV’s parental controls allow you to prevent the TV from displaying certain channels or programs without a password. To manage program content according to its rating, you must enable the Program Rating feature. 1. Press the MENU button on the remote. The on-screen menu is displayed.
4 Blocking and Unblocking Content by Rating A channel may sometimes broadcast programs that are meant for children, and at other times broadcast programs that are meant for mature audiences. You may not want to block the channel completely using a channel lock, but you may wish to block certain programs from being viewed. When this is the case, you can use the TV’s Rating Block feature to block content based on its rating. For a list of content ratings and their definitions, visit www.tvguidelines.org.
4 Changing the View Mode Settings You can resize the video content to fit while the menu is open. To change the view mode settings: 1. Press the MENU button on the remote. The on-screen menu is displayed. 2. Use the Arrow buttons on the remote to highlight System and press OK. The SYSTEM menu is displayed. VIZIO VIEW MODE Viewport Overlay Centered Overlay 3. Use the Arrow buttons on the remote to highlight View Mode and press OK. The VIEW MODE menu is displayed. 4.
4 Changing the DLNA Name of Your TV Adjusting the CEC Settings Turning the Power Indicator On or Off Enter a custom DNLA name for your TV (Up to 10 characters long). DNLA allows your TV to display content from DNLA-certified computers, cameras, tablets, and smartphones. The CEC function on your TV enables you to control devices connected to HDMI (ARC) input with the included remote, without any programming.
4 USING THE RESET & ADMIN MENU 5. If you have changed the default parental control PIN, enter it now. You can use the TV’s Reset & Admin menu to restore the TV to its factory default settings. Restoring the TV to Factory Default Settings All of the on-screen menu settings can be reset to the factory defaults. The TV displays, “Select Reset to restore all TV settings to factory defaults and clear all account information.” 6. Highlight Reset and press OK. 7. Wait for the TV to turn off.
4 USING THE GUIDED SETUP MENU USING THE INFO WINDOW Using Guided Setup The Info Window can be displayed by pressing the INFO or GUIDE button on the remote: The TV’s Setup App can be used to easily set up the TV channel or to connect the TV with your network. To use guided setup: 1. Press the MENU button on the remote. The on-screen menu is displayed. 2. Highlight Guided Setup and press OK. 3. Highlight the guided setup you want to use and press OK: • Channel Setup - Set up the TV channel.
Using the USB Media Player Using the USB Media Player The USB Media Player allows you to connect a USB thumb drive to your TV and play music, video, or photos. 5 Preparing Your USB Drive to Play USB Media Removing the USB Drive from the TV To play USB media, you must first save your files onto a USB thumb drive: To safely remove your USB drive from the TV: • The USB thumb drive must be formatted as FAT32. • Files on the USB thumb drive must end in a supported file extension (.mp3, .jpg, etc.).
5 Back Button Highlight this button and press OK to return to the previous screen. Connected Sources Displays connected USB devices. VIZIO Now Playing Information Displays song title, album title, and artist name. Progress Bar Displays the duration of the currently-playing song. The blue bar will lengthen as the song progresses.
5 Back Button Highlight this button and press OK to return to the previous screen. Connected Sources Displays connected USB devices.
5 Back Button Highlight this button and press OK to return to the previous screen. Connected Sources Displays connected USB devices. VIZIO Photo Start Fullscreen Slideshow Sort by Date or File Name View Thumbnails/Folders View Music Files Back Button Highlight and press OK to return to left column. Current Folder Displays the folder path. VIZIO_2GB\Photo\root USB1: Current Folder Adjust Slideshow Settings Folder Contents This area displays the contents of the currently selected folder.
Using VIZIO Internet Apps Plus® (V.I.A. Plus) 6 VIZIO Internet Apps Plus® (V.I.A. Plus) delivers popular online content to your TV. V.I.A. Plus features a selection of Apps that allow you to watch movies and TV shows, listen to music, get weather and news information, and more–all on demand. A high-speed Internet connection is required to receive product updates and to access online content. See Using the Network Connection Menu on page 34 if your TV is not yet connected to your home network.
6 USING THE FULLSCREEN V.I.A. APPS WINDOW The Fullscreen V.I.A. Plus Apps window allows you to add and store Apps. The Apps on the first page are displayed in the Dock and Apps on additional pages can be moved to the Dock. To open the Fullscreen V.I.A. Plus Apps Window: 1. Press the V Button on the remote twice. 2. Highlight an App by using the Arrow buttons on the remote. 3. Press the OK button on the remote to launch the App. 4.
6 FULLSCREEN V.I.A. PLUS APPS WINDOW OVERVIEW The Fullscreen V.I.A. Plus Apps Window allows you to add, delete and organize your Apps. The My Apps tab displays Apps that are already installed on your TV. The Apps on the first page are displayed in the V.I.A. Plus App Dock. Apps with a small lock icon in the right-hand corner cannot be deleted. The following tabs are located at the top of your Fullscreen V.I.A. Plus Apps Window: • My Apps: Displays apps that are installed on your TV.
6 CUSTOMIZING THE V.I.A. PLUS APPS WINDOW You can add, delete, and move apps around on your My Apps tab for a custom look and feel. Adding an App to the My Apps Tab To add an app to your TV: 1. Use the Arrow buttons on the remote to highlight one of the App Store tabs (Featured, Latest, All Apps, or Categories). Deleting an App from the My Apps Tab Moving an App in My Apps To delete an app from your TV: You can organize your Apps on your My Apps tab by moving them where you want. 1.
6 3. Use the Arrow buttons to move the app to the desired location and press OK to place the app. When you can move the app, it appears as shown below. Note: App location, appearance, and availability subject to change without notice.
Viewing Ultra HD Content 7 WHAT IS ULTRA HD? WHAT YOU NEED TO VIEW ULTRA HD CONTENT WHAT ARE HDMI 2.0 AND HDCP 2.2? Ultra HD (UHD) offers four times the resolution of 1080p (that’s twice as many pixels in each direction, horizontally and vertically). The detail and resolution available from UHD makes everything you watch more vibrant and lifelike, giving you a phenomenal viewing experience. To view Ultra HD content, you will need: Your E-Series TV supports the latest HDMI standards.
Troubleshooting & Technical Support A Do You Have Questions? Find Answers At SUPPORT.VIZIO.
A Take A Moment To Register Your Product At VIZIO.COM/PRODUCT-REGISTRATION Why Register? Customized Support Get assistance quickly with your information on-hand. News & Offers Take advantage of the latest news and special offers from VIZIO. Safety & Satisfaction Stay up to date with important product updates and notifications.
A The remote is not responding. • Make sure the batteries are properly inserted matching the - and + symbols. • Replace the batteries with fresh ones. The TV displays “No Signal.” • Press the INPUT button on the remote control to select a different input source. • If you are using cable TV or antenna connected directly to the TV, scan for channels. See Scanning for Channels on page 36. There is no power. • Ensure the TV is plugged into a working electrical outlet.
A I see “noise” or static on the screen. • When your TV’s digital capabilities exceed a digital broadcast signal, the signal is up-converted (improved) to match your TV’s display capabilities. This up-converting can sometimes cause irregularities in the image. • If you are using an antenna, the signal strength of the channel may be low. Ensure your antenna is connected securely to the TV and move the antenna around the room or close to a window for the best signal.
Specifications B D40u-D1 Screen Size: Viewable Area: Dimensions w/ Stand: w/o Stand: Weight w/ Stand: w/o Stand: LCD Backlight: Active LED Zones: 40" 39.96" 35.97" x 23.46" x 8.27" 35.97" x 23.46" x 2.68" 17.63 lbs 17.19 lbs Full-Array LED 8 Zones Refresh Rate: 120 Hz Effective Refresh Rate Clear Action: 240 Maximum Resolution: Dynamic Contrast Ratio: Pixel Pitch: Viewing Angle: Remote Control Model: XRT122 Certifications: UL, cUL, FCC Class B, HDMI 1.4/2.
B D50u-D1 Screen Size: Viewable Area: Dimensions w/ Stand: w/o Stand: Weight w/ Stand: w/o Stand: LCD Backlight: Active LED Zones: 50" 49.50" 44.24" x 28.27" x 10.04" 44.24" x 25.91" x 2.52" 30.87 lbs 30.0 lbs Full-Array LED 12 Zones Refresh Rate: 120 Hz Effective Refresh Rate Clear Action: 240 Maximum Resolution: Dynamic Contrast Ratio: Pixel Pitch: Viewing Angle: Remote Control Model: XRT122 Certifications: UL, cUL, FCC Class B, HDMI 1.4/2.
B D55u-D1 Screen Size: Viewable Area: Dimensions w/ Stand: w/o Stand: Weight w/ Stand: w/o Stand: LCD Backlight: Active LED Zones: 55" 54.64" 48.76" x 30.75" x 10.04" 48.76" x 28.39" x 2.52" 37.48 lbs 36.6 lbs Full-Array LED 14 Zones Refresh Rate: 120 Hz Effective Refresh Rate Clear Action: 240 Maximum Resolution: Dynamic Contrast Ratio: Pixel Pitch: Viewing Angle: Remote Control Model: XRT122 Certifications: UL, cUL, FCC Class B, HDMI 1.4/2.
Limited Warranty UNITED STATES AND CANADA BY USING YOUR VIZIO PRODUCT YOU AGREE TO BE BOUND BY ALL THE TERMS OF THIS WARRANTY. BEFORE USING YOUR VIZIO PRODUCT, PLEASE READ THIS WARRANTY CAREFULLY. IF YOU DO NOT AGREE TO THE TERMS OF THIS WARRANTY, DO NOT USE THE VIZIO PRODUCT AND, WITHIN THIRTY (30) DAYS OF THE DATE OF PURCHASE, RETURN IT FOR A REFUND TO THE AUTHORIZED RETAILER WHERE YOU PURCHASED IT.
C right to recover attorneys’ fees in connection with any arbitration under this warranty. If you are the prevailing party in an arbitration to which the Supplementary Procedures for Consumer-Related Disputes applies, then you are entitled to recover attorneys’ fees as the arbitrator may determine. The dispute will be governed by the laws of the state or territory in which you resided at the time of your purchase (if in the United States).
Mexico Limited Warranty VIZIO PRODUCT, PLEASE READ THIS WARRANTY CAREFULLY. IF YOU DO NOT AGREE TO THE TERMS OF THIS WARRANTY, DO NOT USE THE VIZIO PRODUCT AND, WITHIN THIRTY (30) DAYS OF THE DATE OF PURCHASE, RETURN IT FOR A REFUND TO THE AUTHORIZED RETAILER WHERE YOU PURCHASED IT. Warrantor The warrantor under this warranty is VIZIO Sales & Marketing Mexico S. de R.L. de C.V.
C THE POSSIBILITY OF SUCH DAMAGES, AND EVEN IF THE REMEDY FAILS OF ITS ESSENTIAL PURPOSE. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
Legal & Regulatory Information Software Licenses All software is provided subject to a software license agreement(s) and you agree that you will be bound by such license agreement(s) in addition to these terms. Your use of this product is subject to VIZIO’s privacy policy, which may be updated from time to time, and is available to view at http://www.vizio.com/privacy. configurations, performance, design and other product information described herein are subject to change without notice. VIZIO, Inc.
D FCC Class B Radio Interference Statement Notice Canada Notice for License-Exempt Radio Apparatus NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
© 2015 VIZIO INC. ALL RIGHTS RESERVED.
