Installation Guide

Last update: 2019-08-15 11:50 vebus_smart_dongle_manual https://www.victronenergy.com/live/vebus_smart_dongle_manual
https://www.victronenergy.com/live/ Printed on 2019-08-15 19:11

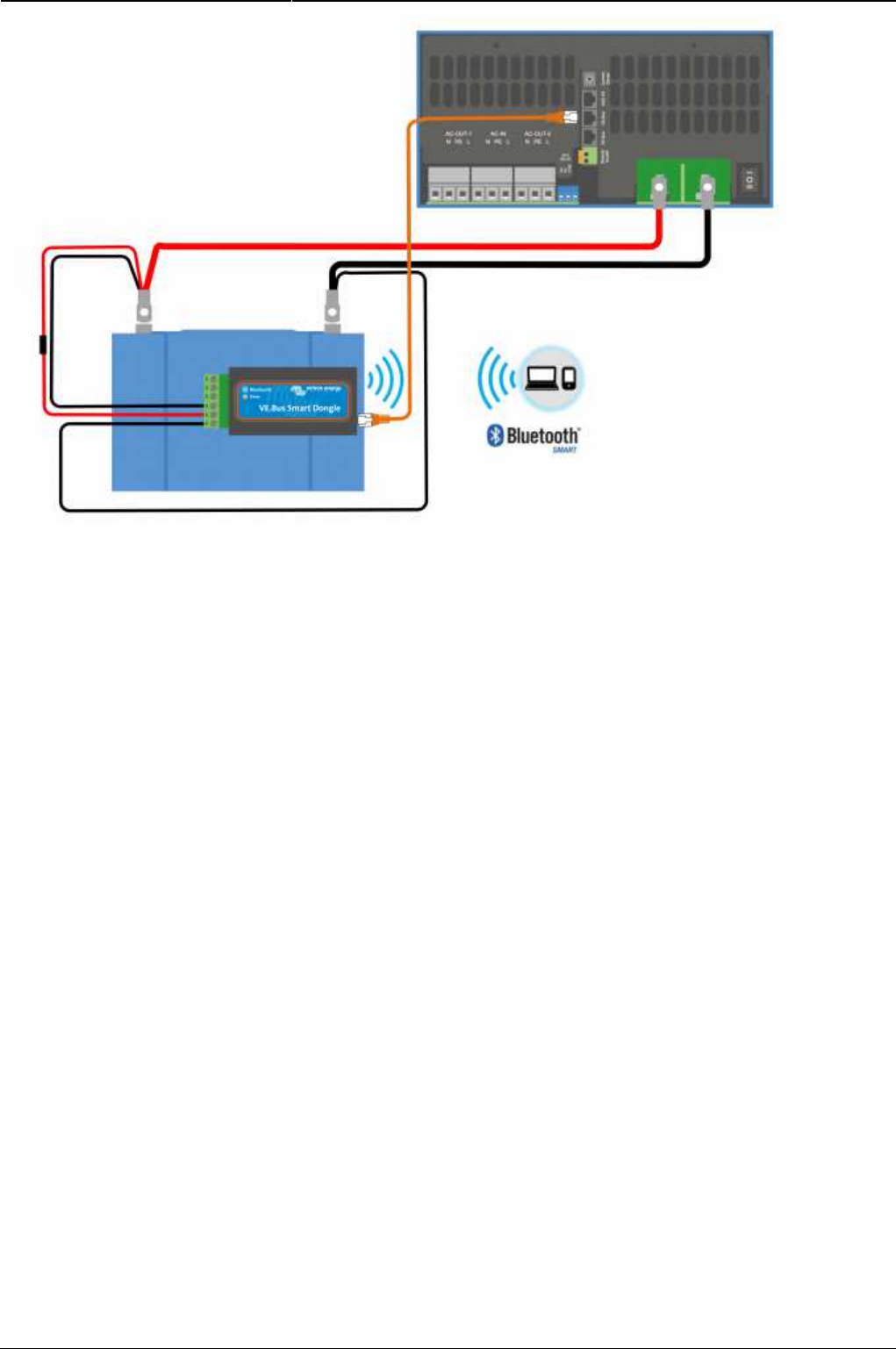

Installation with battery terminal temperature sensor:
The battery temperature sensor replaces the included red battery(+) connection wire.
Connect the temperature sensor's red connection wire to the B+ input on the connection block1.
Connect the temperature sensor's black connection wire to the T- input on the connection block2.
Connect the black connection wire to the B- input on the connection block3.
Connect the two eyelets to your battery terminal. Red wire eyelet on bat+ , black wire eyelet on4.
bat-
Mount the dongle on or near the battery using the dongle's adhesive mounting. If mounted near5.
the battery, screws can be used.
Plug the connector block into the dongle.6.
Connect the dongle to the Multi's Ve.Bus interface, using a standard RJ45 UTP cable7.
LED Status codes
Ve.Bus Smart has two LEDs: a Bluetooth status LED (blue), and an Error LED (red).
On power-up, the Bluetooth LED will be slow-blinking - indicating that the device is ready to accept a
Bluetooth connection.
If both LEDs remain illuminated, something is wrong with the Ve.Bus Smart unit (Hardware error).
When the LEDs are alternating quickly for more than 30 seconds, the Ve.Bus Smart is in firmware
update mode and will need to complete the update before it can be used. Firmware updates are
performed (where necessary) after connecting to VictronConnect.
