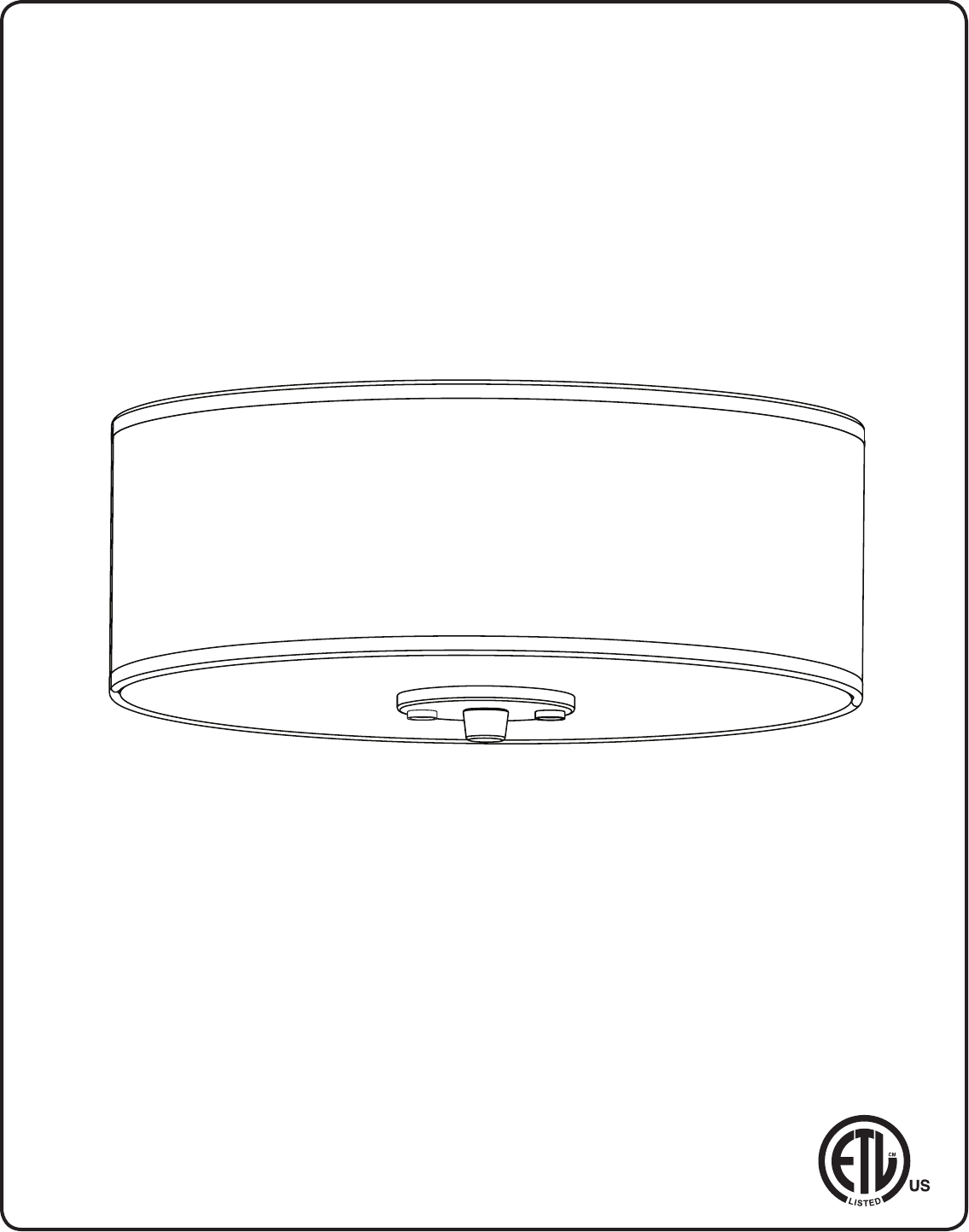

CEILING FAN LIGHT KIT Owner’s Manual If a problem cannot be remedied or you are experiencing difficulty in installation, please contact the Service Department.
PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: 5 1 PACKAGE CONTENTS 5. Fabric Shade 1. Light Kit 4 2 3 6 Owner’s Manual 7 2. Finial Cap (1 + 3 extra) 6. Lens 3. Finial (1 + 3 extra) 7. Hardware Kit 4. E-26 base LED bulb (x 2) 8. Owner’s Manual Hardware Kit 8 HARDWARE CONTENTS 9. Rubber Washer 11. Lock Washer (x2) 10. Washer Cover 12. Hex Nut (x2) Note: Some of the hardware listed is pre-assembled to other parts.
SAFETY INSTRUCTIONS READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE BEGINNING TO INSTALL THE LIGHT KIT AND SAVE INSTRUCTIONS. This fixture is intended for use with an indoor ceiling fan. Not suitable for damp or outdoor locations. The fan images and instructions in this manual are generic, but in most cases the installation will be easy to follow. If unsure about installation, consult a qualified licensed electrician for proper installation. The net weight of the light kit is less than: 4.
ASSEMBLY INSTRUCTIONS 1. Turn OFF the electrical power at the main fuse or circuit breaker. 1 A Fitter Plate Switch Housing B Switch Housing Cap 2 Switch Housing A Switch Housing Switch Housing Screw 3 B Switch Housing Cap Note: Save the three switch housing screws for later. 4. Use a screwdriver to push the plug button out of the switch housing (A) or switch housing cap (B). Plug Button B Switch Housing Cap 3.
ASSEMBLY INSTRUCTIONS 5. Install the E-26 base LED bulbs in sockets of the light kit fitter. 5 Rubber Washer Hex Nut Lock Washer Washer Cover A Switch Housing Center Ring Hex Nut B Lock Switch Washer Housing Cap 6 Hex Nut 5. Slide the center ring of the fabric shade onto the threaded rod at the top of the light kit. Then, place the washer cover on the threaded rod and secure with the lock washer and hex nut. Finally, drop the rubber washer over the hex nut located in the washer cover. 7.
ASSEMBLY INSTRUCTIONS A 9. Using the three previously removed switch housing screws, re-attach the switch housing to the fitter plate (A) or the switch housing cap to the switch housing (B). Switch Housing Screw 9 B Switch Housing Screw Light Kit Fitter Fan Pull Chain Lens Finial Cap 10 Finial 10. Remove the finial cap and finial from the threaded rod at the bottom of the light kit.
TROUBLESHOOTING If you have difficulty operating your new light kit, or have difficulty with installation, please contact Customer Service. WARNING: Ensure the power is turned off to the ceiling fan and light kit before performing any maintenance. PROBLEM SUGGESTED REMEDY Fixture does not light up when installed to fan. 1. Turn on wall switch, and check fuses or circuit breakers. 2. Check wire connections from fan to light kit, located in the switch housing of the ceiling fan. 3.
