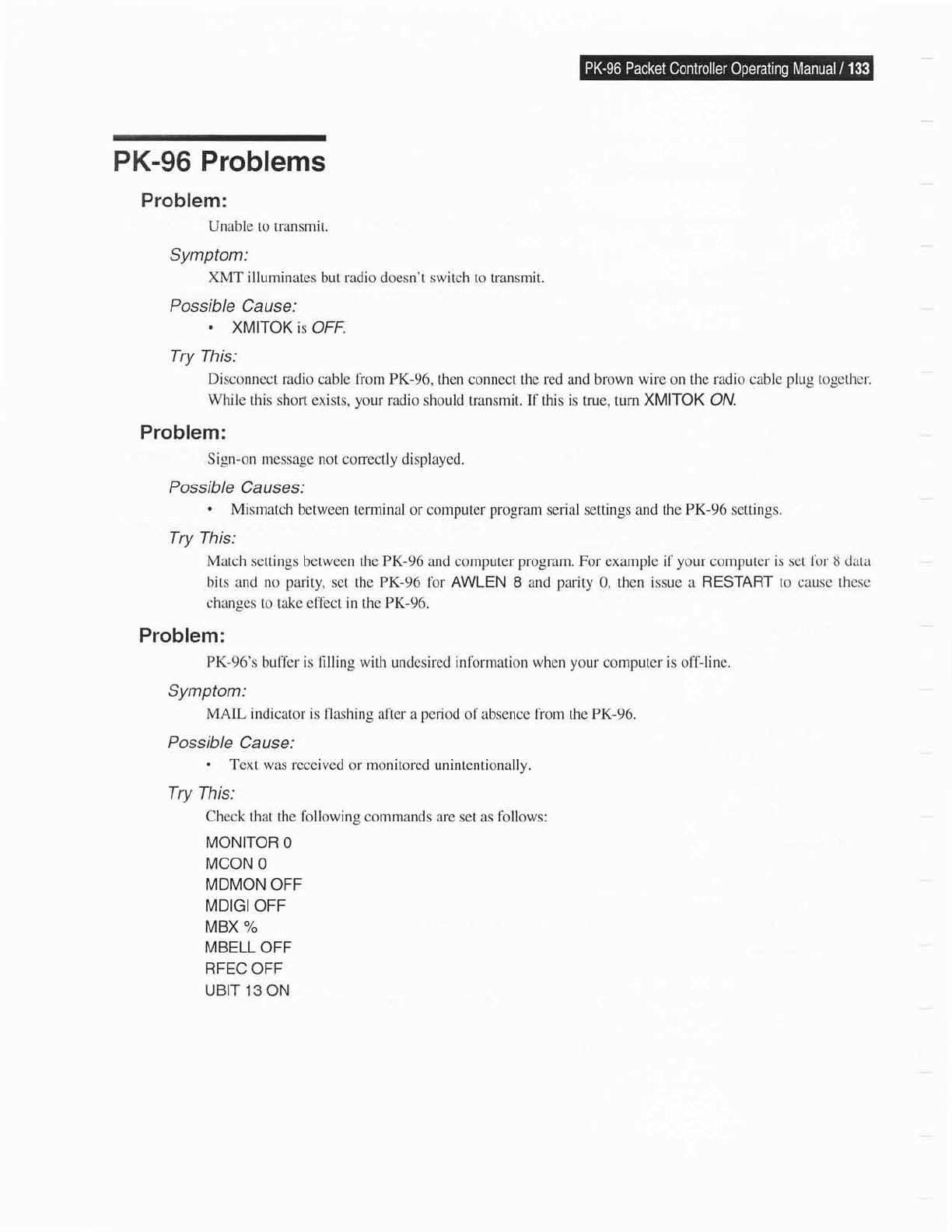

PK-96 Problems
Problem:
Unable
to transmit.
Symptom:
XMT illuminates
but radio doesn't switch to transmit.
Possible
Cause:
.
XMITOK
is OFF.
Try This:
Disconnect
radio cable fiom PK-96,
then
connect the red
and
brown wire on the radio cable
plug
together.
While
this short exists,
your
radio should transmit. If
this
is
true, turn
XMITOK ON.
Problem:
Sign-on message
not conectly displayed.
Possible
Causes:
.
Mismatch between
terminal or computer
program
serial settings and the
PK-96
settings.
Try This:
Match settings
between the
PK-96
and computer
program.
For
example
if
your
computer
is set tor 8 data
bits and no
parity,
set the PK-96 for AWLEN
8
and
parity
0, then
issue a RESTART to cause these
changes to take effect in
the
PK-96.
Problem:
PK-96's
buffer is filling with undesired information when
your
computer is off-line.
Symptom:
MAIL indicator is flashing
after a
period
of absence from the PK-96.
Possible
Cause:
.
Text
was received or monitored
unintentionally.
Try This:
Check that the followins commands
are set as follows:
MONITOR O
MCON
O
MDMON
OFF
MDIGIOFF
MBX
%
MBELL
OFF
RFEC OFF
UBIT
13
ON
