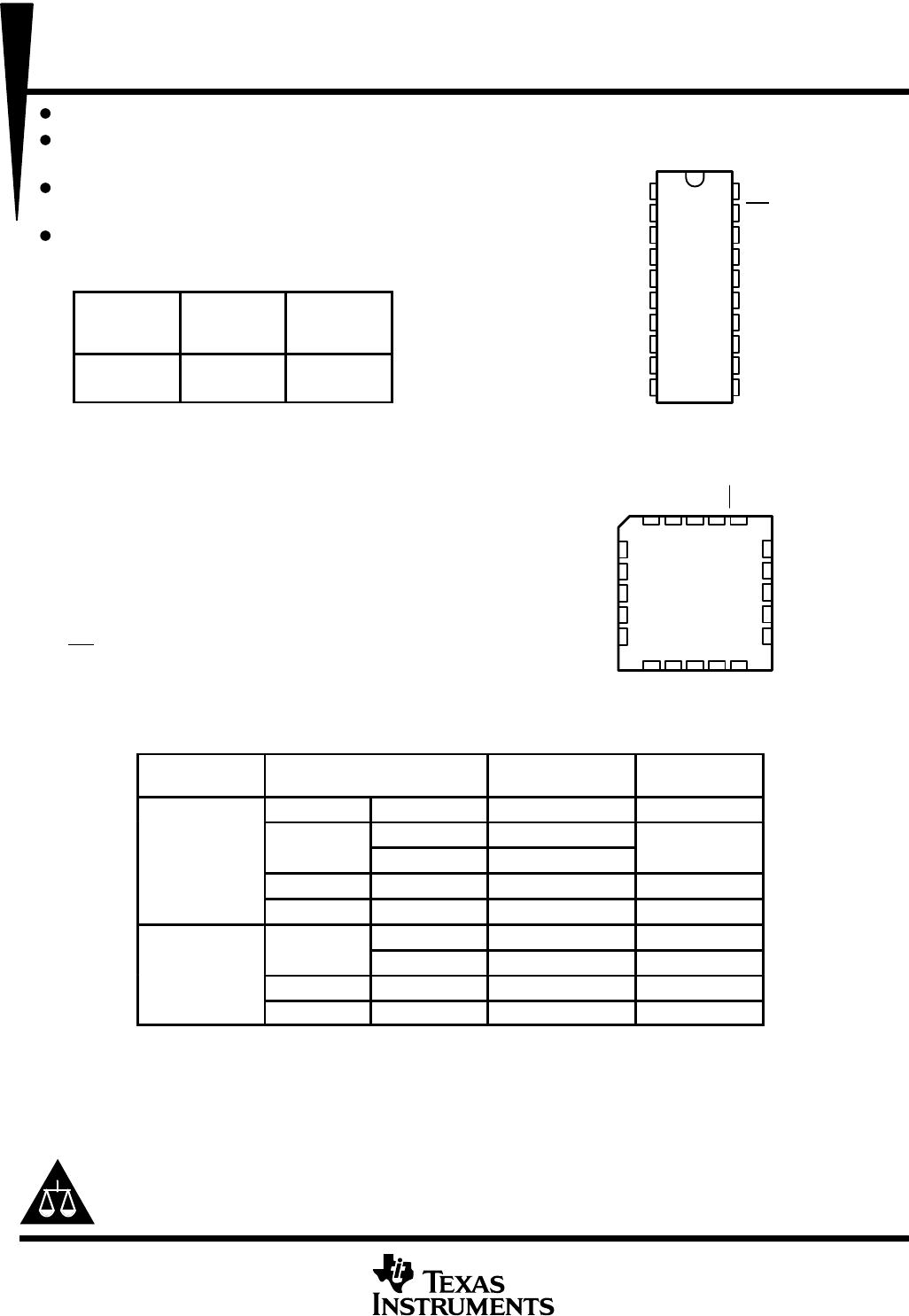

SN54LS245, SN74LS245

OCTAL BUS TRANSCEIVERS

WITH 3-STATE OUTPUTS

SDLS146A – OCTOBER 1976 – REVISED FEBRUARY 2002

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

3-State Outputs Drive Bus Lines Directly

PNP Inputs Reduce dc Loading on Bus

Lines

Hysteresis at Bus Inputs Improves Noise

Margins

Typical Propagation Delay Times Port to

Port, 8 ns

TYPE

(SINK

CURRENT)

(SOURCE

CURRENT)

SN54LS245 12 mA –12 mA

SN74LS245 24 mA –15 mA

description

These octal bus transceivers are designed for

asynchronous two-way communication between

data buses. The control-function implementation

minimizes external timing requirements.

The devices allow data transmission from the

A bus to the B bus or from the B bus to the A bus,

depending on the logic level at the

direction-control (DIR) input. The output-enable

(OE

) input can disable the device so that the

buses are effectively isolated.

ORDERING INFORMATION

PACKAGE

†

ORDERABLE

PART NUMBER

TOP-SIDE

MARKING

PDIP – N Tube SN74LS245N SN74LS245N

SOIC – DW

Tube SN74LS245DW

LS245

0°C to 70°C

SOIC

–

Tape and reel SN74LS245DWR

LS245

SOP – NS Tape and reel SN74LS245NSR 74LS245

SSOP – DB Tape and reel SN74LS245DBR LS245

CDIP – J

Tube SN54LS245J SN54LS245J

–55

Cto125

CDIP

–

Tube SNJ54LS245J SNJ54LS245J

–

55°C

125°C

CFP – W Tube SNJ54LS245W SNJ54LS245W

LCCC – FK Tube SN54LS245FK SN54LS245FK

†

Package drawings, standard packing quantities, thermal data, symbolization, and PCB design

guidelines are available at www.ti.com/sc/package.

PRODUCTION DATA information is current as of publication date.

Products conform to specifications per the terms of Texas Instruments

standard warranty. Production processing does not necessarily include

testing of all parameters.

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of

Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

3 2 1 20 19

910111213

DIR

GND

SN54LS245 . . . FK PACKAGE

(TOP VIEW)

DIR

GND

SN54LS245 ...J OR W PACKAGE

SN74LS245 ... DB, DW, N, OR NS PACKAGE

(TOP VIEW)

On products compliant to MIL-PRF-38535, all parameters are tested

unless otherwise noted. On all other products, production

processing does not necessarily include testing of all parameters.
