EVM Applications

2.6 EVM Applications

The PCM9211EVM contains an EEPROM that can store EVM applications; for example:

• Initialization scripts

• Parameter patch scripts

The CodecControl software also contains a browser to access the applications stored in the EEPROM. To

access the browser, select File->EVM Applications…. Figure 2-6 illustrates the EVM Applications window.

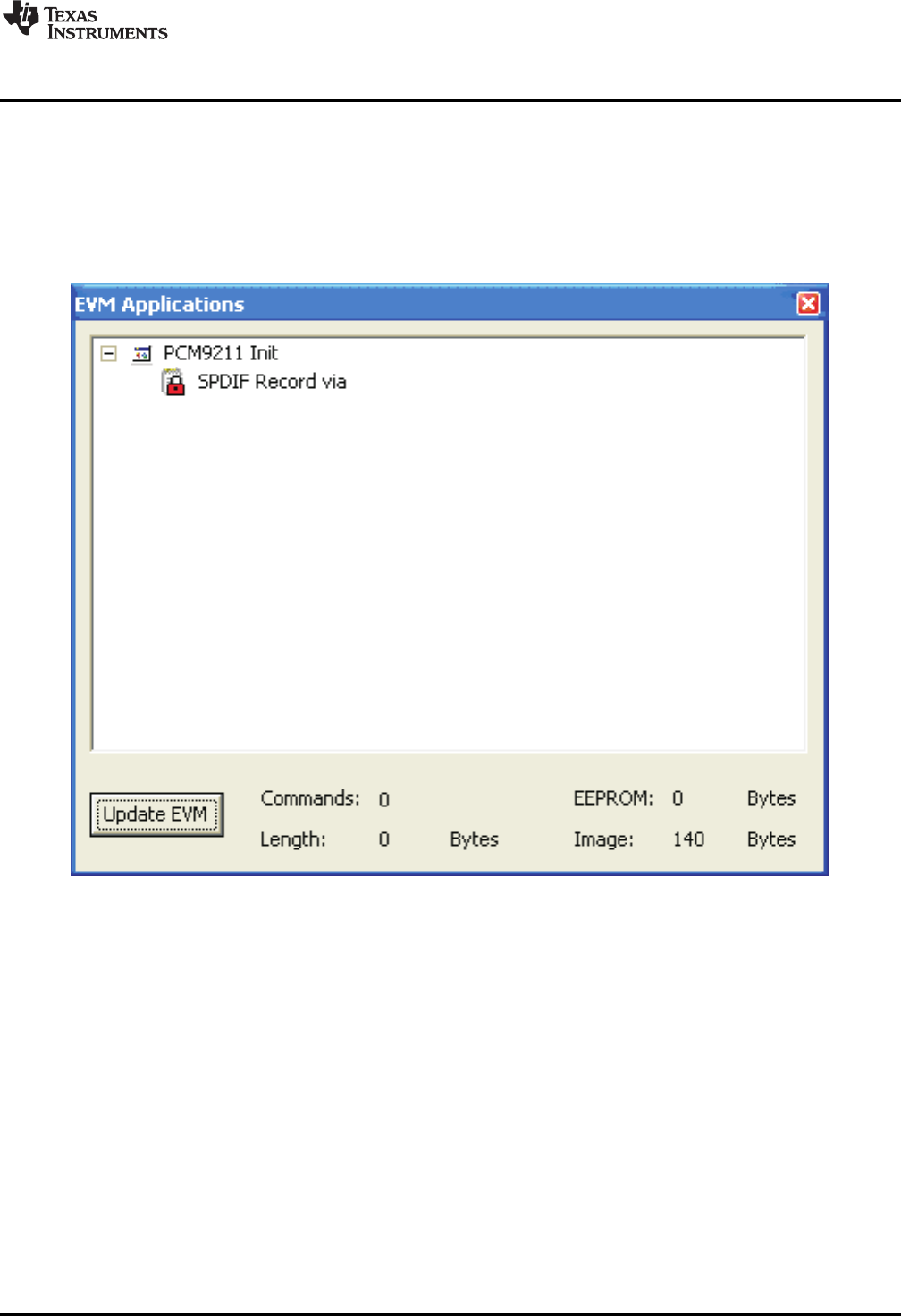

Figure 2-6. EVM Applications

Applications stored in the EEPROM are shown in a tree view.

To add an application, choose Add Application from the context menu (right-mouse click within the tree

view).

To change the name of an application, select the application, single-click on the application, then type the

new name.

Each application owns one or several scripts. The scripts consist of a sequence of commands that

program the TI audio codec (or EVM components).

To add a script to an application, choose Add Script from the context menu. Double-click on the script to

open a command window. The command window has an Open button to choose a script via a file dialog.

Alternatively, it is also possible to write the script within the command window.
