Application Circuits
Where: V
0
= V
1
+ V
2
− V
3
– V
4
(V
1
+ V
2
≥ (V
3
+ V
4
) to keep V
0
> 0V
DC

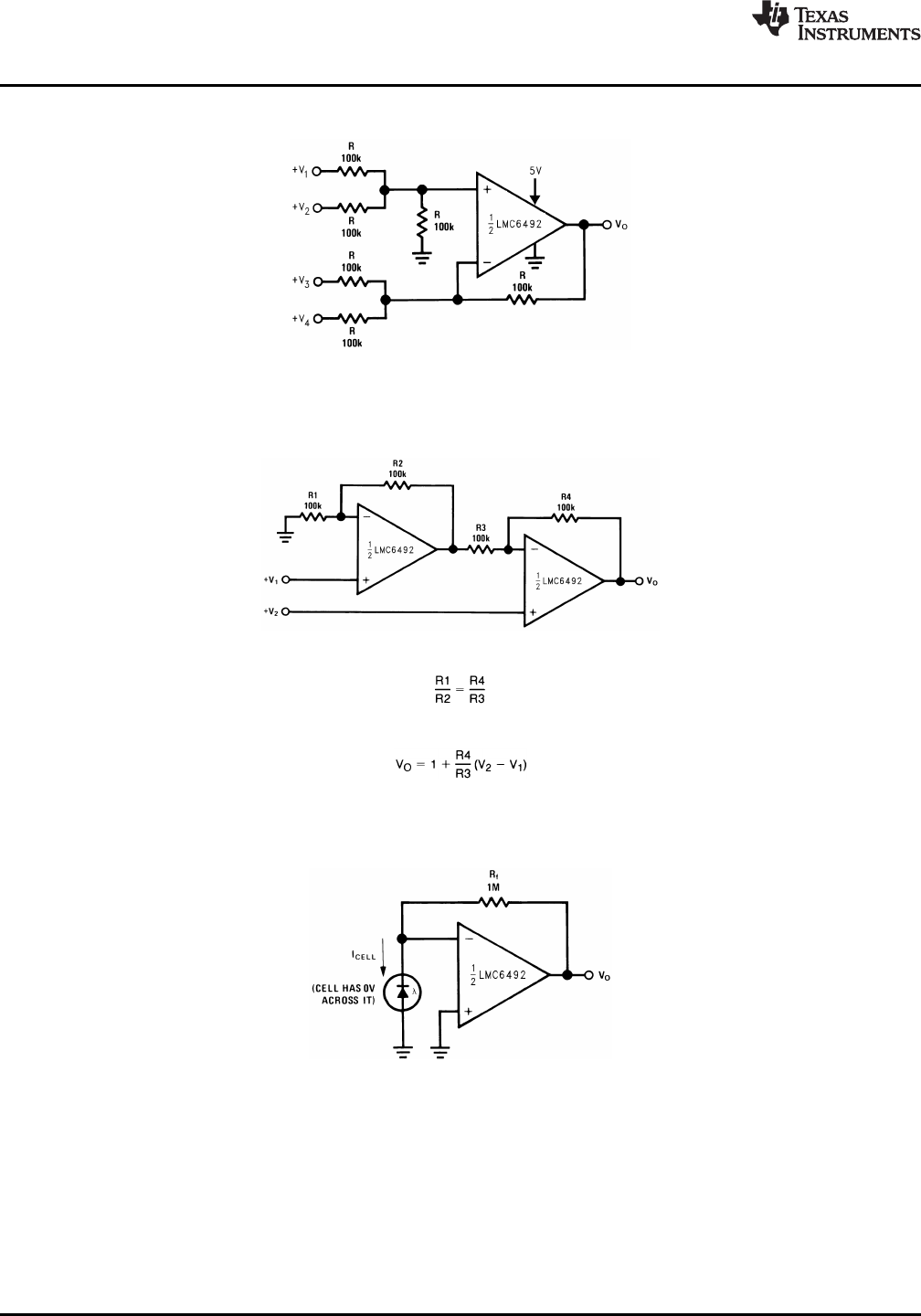

Figure 63. DC Summing Amplifier (V
IN
≥ 0V
DC
and V
O
≥ V
DC
For
(CMRR depends on this resistor ratio match)
As shown: V
O
= 2(V
2
− V
1
)
Figure 64. High Input Z, DC Differential Amplifier
Figure 65. Photo Voltaic-Cell Amplifier
