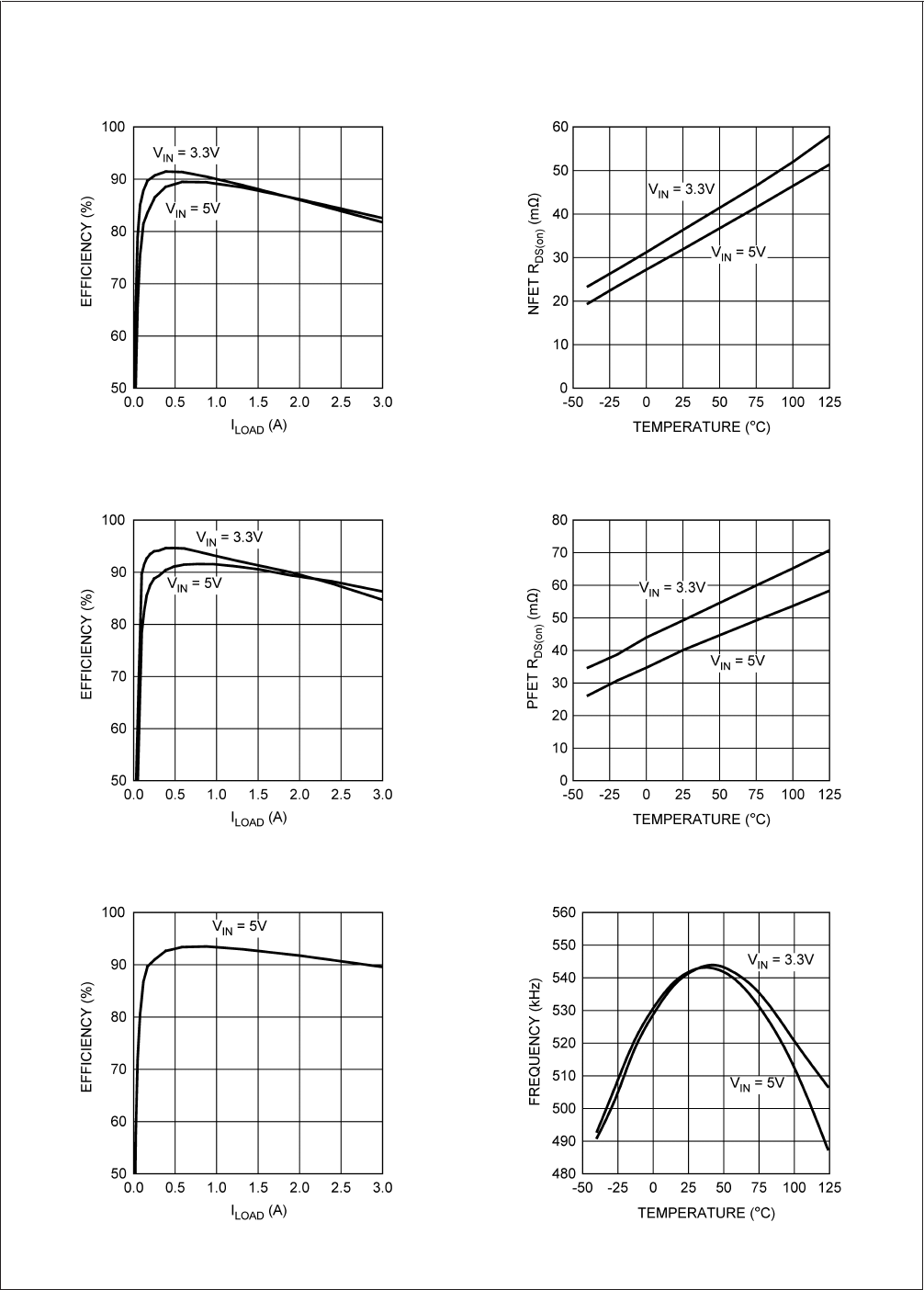

Typical Performance Characteristics Unless otherwise specified, the following conditions apply: V
IN
= AVIN = PVIN = 5V, T
J
= 25˚C.
Efficiency vs. I
LOAD
V
OUT
= 1.8V NFET R
DS(ON)
vs. Temperature
20201507 20201505
Efficiency vs. I
LOAD
V
OUT
= 2.5V PFET R
DS(ON)
vs. Temperature
20201509 20201504
Efficiency vs. I
LOAD
V
OUT
= 3.3V Switching Frequency vs. Temperature
20201508 20201506
LM2853
www.national.com5
