PLC ANALOG OUTPUT MODULE USING THE DAC8562
The DAC8562 can be mated with one of TI's 0- to 20-mA voltage-to-current transmitters to create a low-cost,
programmable current source for use in PLC applications. One specific example includes combining the
DAC8562 with the XTR111 to create a voltage-to-current solution. The DAC output voltage generates a current,
I
SET
, which is determined by the value of the external resistor, R
SET
. This current is internally amplified by 10 and
output at the IS node. A p-channel MOSFET Q1 can be added in an application where a wide compliance
voltage is required, for example, when using a high impedance load. The optional PNP transistor, Q2, along with
the R4 resistor provides external current limiting in a case where the external FET is forced to low impedance.
Additionally, resistors R2 and R3 can be used to scale the 3-V internal regulator to a desired voltage to power
the DAC. Figure 97 shows a working 0- to 20-mA solution using one DAC8562 channel and a ±10-V voltage
output using the other DAC8562 channel. For more information on the ±10-V voltage output circuit see the UP
TO ±15-V BIPOLAR OUTPUT USING THE DAC8562 application.

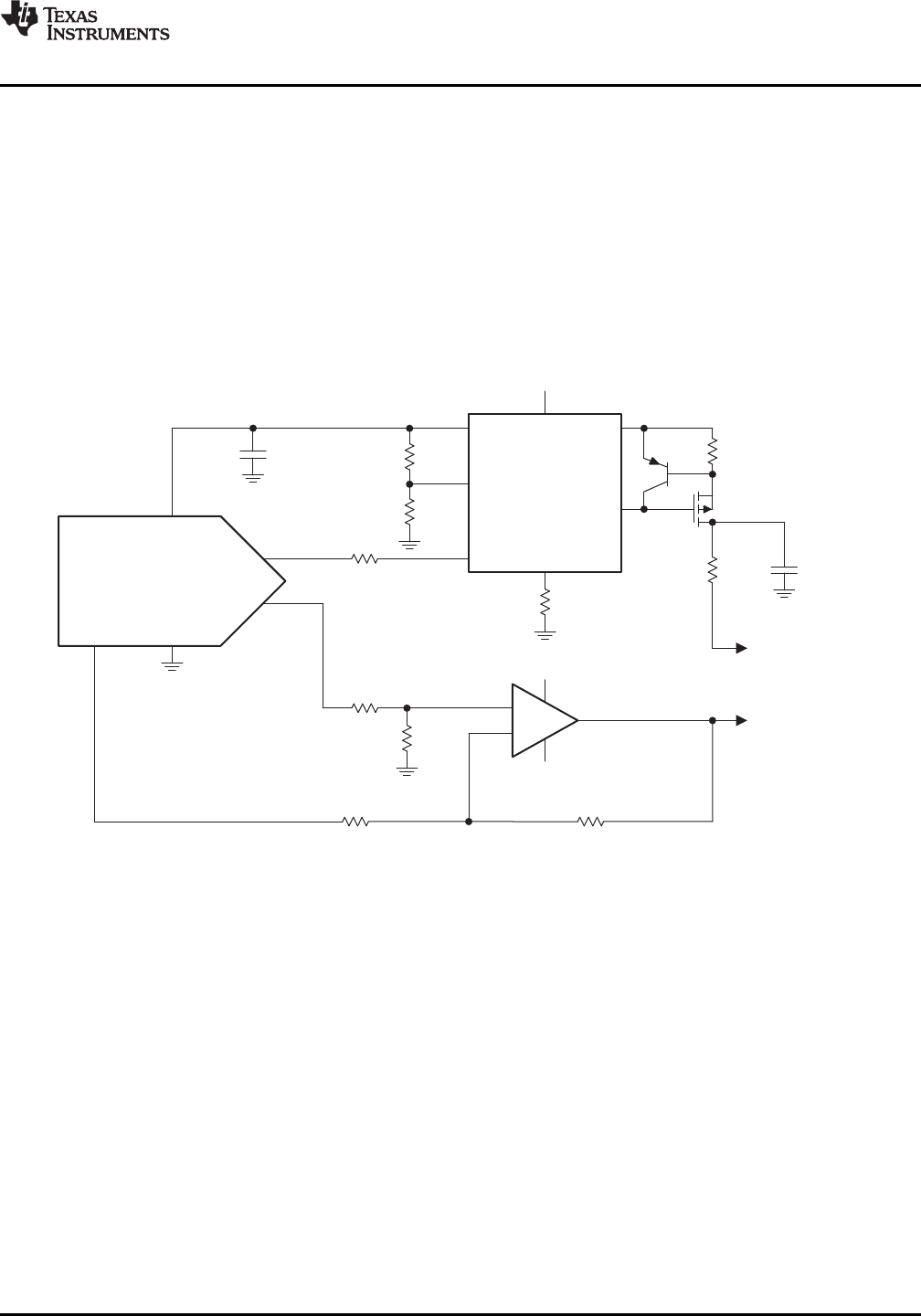

Figure 97. 0- to 20-mA and ±10-V Outputs Using DAC8562
