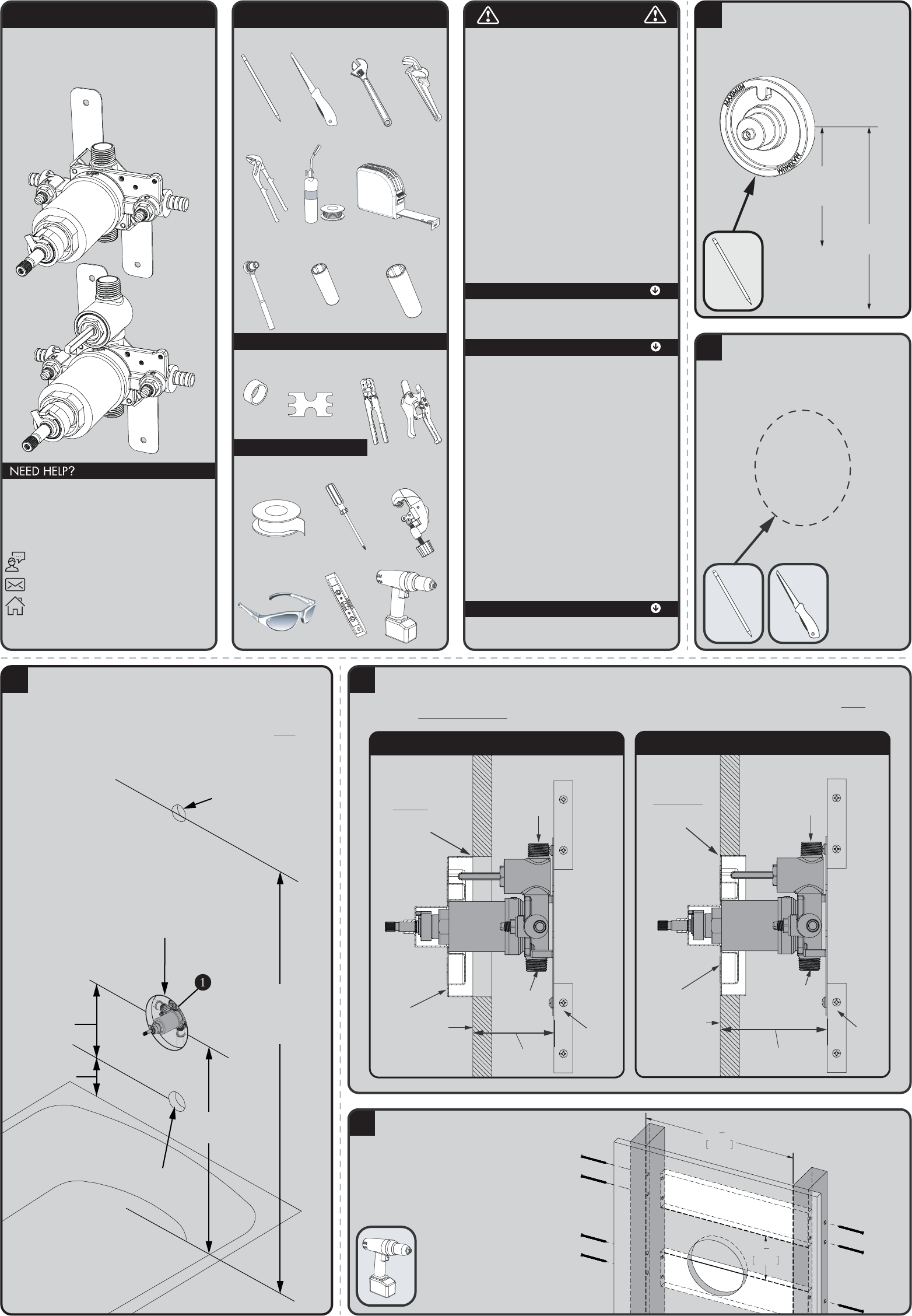

INSTRUCTIONS FOR MODELS

92-CPV-TP-PXC-01

For additional assistance or service please contact:

SPEAKMAN

Company

400 Anchor Mill Road

New Castle, DE 19720

800-537-2107

customerservice@speakman.com

www.speakman.com

CPV-TP-PXC

CPV-TP-DV-PXC

HELPFUL TOOLS & SUPPLIES:

NOTE: PEX tools and supplies NOT INCLUDED.

TOOLS AND SUPPLIES

Drill

Pencil Keyhole

Saw

Adjustable

Wrench

Thread Seal

Tape

9/16” (14mm)

Deep Well Socke

Socket

Wrench

Pipe

Wrench

Crimp

Ring

PEX

Go/No-Go

Gauge

NO GO GO

NO GO

PEX Crimp

Tool

PEX

Cutter

Solder Kit

Phillips

Screwdriver

Measuring

Tape

Safety

Glasses

Tubing

Cutter

Level

Slip Joint

Wrench

13/16” (20mm)

Deep Well Socke

Warranty information can be found at:

www.speakman.com

WARRANTY

Your new Shower/Bath Valve is designed for years of

trouble-free performance. Keep it looking new by

cleaning it periodically with a soft cloth. The use of

harsh chemicals and abrasives on any of the Speakman

custom finish products may damage the finish and void

the product warranty. Please be sure to only use

approved cleaners. Please contact Speakman for any

clarification of acceptable cleaners.

MAINTENANCE

Cover your drain to prevent loss of parts. Be sure to

wear eye protection while cutting pipe.

SAFETY TIPS

IMPORTANT

• Be sure to read instructions thoroughly before

beginning installation.

• Be sure to have properly adjusted the Temperature

Limiting Stop (TLS) as outlined in this Installation

Manual.

• Inspect all connections after installation of valve.

• This valve has an operating range of 20-80 psi.

• This valve is designed to be used in conjunction

with a shower-head rated at 1.5 gpm (5.7 L/min)

or higher flow rate.

• NOTE: This installation manual covers several

models of valves. While the appearance of your

valve may differ from those shown, the installation

method is the same.

• Maximum water pressure: 125 psi static; minimum

water pressure: 20 psi flowing; minimum cold

supply temperature: 40 °F; maximum hot supply

temperature: 160 °F; minimum hot supply

temperature: 5 °F above set point.

This type of valve must be cleaned and maintained on a

regular basis. Periodic maintenance should be

performed at least every 12 months or after any

changes have been made to the building’s plumbing

system. This maintenance should include removing and

cleaning the spring check stop components. Make sure

the stop poppet in each stop moves freely. Valves that

are installed outdoors should be winterized by removing

all of the internal parts and removing any standing

water from the valve. Quarterly the maximum hot

temperature setting (TLS) should be checked and

adjusted accordingly.

Referencing the supplied rough-in dimensions

(located at the end of this manual), determine the

preferred location of valve. Align the supplied

rough-in template with this location and trace

outline of template onto wall.

1’-9” (533mm)

TO CENTERLINE

OF TUB SPOUT

(FOR TUB INSTALLATION)

4’-6” (1.4m)

TO FLOOR

(SHOWER INSTALLATION)

Using a Keyhole Saw or similar tool, cut along

traced line and remove this section of wall.

Shut off the water supply to the Tub and Shower. Verify that the hole sizes and

positions in the wall are correct:

A. The shower and tub spout outlet holes should be 1” diameter.

B. To determine the Valve mounting depth, see STEP 4.

C. The distance from the Valve mounting surface to the finished wall MUST be

between 3-3/16" to 4-3/16". Position the Valve Body ❶ correctly in the wall

with the “UP” pointing up. The 1’-9” minimum from the Valve Body to the Tub

Spout is required for proper operation.

4’-6” (1.4 meters)

Shower Only

1’-9”

(533mm)

Tub/Shower

6’-6” (1.4 meters)

Tub/Shower

Shower Only

Ø1” Hole for Shower Arm

Ø1” Hole for Tub Spout

ØSee Step 4

4”

(102mm)

Tub/Shower

Install the Rough-In Template over the Shower Valve being sure the Rough-In Template sits flush against Valve Body. Following

the rough-in dimensions for your model of valve (located ot the end of this manual) as well as the markings on the supplied

Rough-In Template, install valve at proper depth. The distance from the Valve mounting surface to the finished wall MUST be

between 3-3/16" - 4-3/16". See images below for reference.

SHOWER OUTLET

TUB OUTLET

ROUGH-IN TEMPLATE

THE BACK EDGE OF THE

ROUGH-IN TEMPLATE IS

FLUSH WITH OR INSIDE

THE VALVE ACCESS HOLE.

FINISHED WALL SURFACE

3-3/16” MINIMUM

MOUNTING DEPTH

1" X 4"

DIMENSIONAL

LUMBER

MINIMUM MOUNTING DEPTH

SHOWER OUTLET

TUB OUTLET

ROUGH-IN TEMPLATE

THE FRONT SURFACE OF

THE ROUGH-IN TEMPLATE

IS FLUSH WITH OR OUTSIDE

THE VALVE ACCESS HOLE.

FINISHED WALL SURFACE

4-3/16” MAXIMUM

MOUNTING DEPTH

1" X 4"

DIMENSIONAL

LUMBER

MAXIMUM MOUNTING DEPTH

Mounting Structure behind the wall must

be capable of supporting the Valve in

use. Following the rough-in dimensions

for your model of valve (located ot the

end of this manual), reference the

diagram below for the installation and

placement of the bracing within a 2"x4"

wall, using a 1"x4" brace. Mounting

hardware is not included.

114mm

368mm

Summary of content (5 pages)

PAGE 1
INSTRUCTIONS FOR MODELS TOOLS AND SUPPLIES Pencil CPV-TP-PXC CPV-TP-DV-PXC Keyhole Saw Adjustable Wrench 1 IMPORTANT Pipe Wrench • Be sure to read instructions thoroughly before beginning installation. Referencing the supplied rough-in dimensions (located at the end of this manual), determine the preferred location of valve. Align the supplied rough-in template with this location and trace outline of template onto wall.
PAGE 2
6 If your installation is for a shower only, apply Thread Seal Tape in a clockwise direction to the Tub Outlet Port ❶ and install the included Plug Cap. Wrench tighten. If you are performing a pipe fitting installation, apply Thread Seal Tape around the pipe threads in a clockwise direction. 8 PIPE FITTING INSTALLATION Connect the Shower Outlet Pipe ❸ (not included), and Tub Outlet Pipe ❹ (not included), by threading them into the Valve Body ❶ in a clockwise direction.
PAGE 3
PEX (CRIMP) INSTALLATION INSTRUCTIONS A B Use Plastic Tubing Cutters (not included), to cut the PEX Tubing ❶ to length. Ensure that a good square (90°) cut is obtained. A rough or uneven cut will result in a weakened joint. Slide the correct size i.e., ½” Crimp Ring ❶ (not included) over the ½” PEX Tubing ❷ (not included), approximately 2" past the end of the tubing. C Push the tubing onto the PEX Barb ❶ of the Valve until it touches the shoulder.
PAGE 4
13 TEMPERATURE LIMIT ADJUSTMENT CPV-TP-PXC / CPV-TP-DV-PXC SERVICE INSTRUCTIONS The maximum outlet temperature setting adjustment (Temperature Limit Stop (TLS)) of the Valve has been factory set at 110 °F. To adjust the limit of the maximum outlet temperature the Valve delivers, adjust the Valve’s temperature limit stop (TLS) plate by following the steps below. • Slip the retaining O-ring and the TLS plate towards the end of the spindle.
PAGE 5
SPEAKMAN CPV-TP ROUGH-IN DIAGRAM ® A NOTES: COMPLIANCE: ASME A112.18.1/CSA B125.1 ASSE 1016/ASME A112.1016/CSA B125.16 1" 25mm HOLE FOR SHOWER ARM 6'-6" [2 METERS] TO FLOOR CONNECTIONS: 5-1/2" (140MM) DIA.
