A6V101004423_enUS_b Siemens Industry, Inc.

Building Technologies Division

INSTALLATION INSTRUCTIONS

Model FHA2056-U1/-R1

FS250/MPC Mechanical Migration Kit

This kit contains:

1) Left Bracket (25 x 1.75 x 3.25)

2) Adapter plate (18.75 x 16.50 x 5.20)

3) Inner Door (20 x 19.50 x 1.0)

4) Outer Door (22.55 x 20.20 x 1.70)

NOTE: Prior to installation of this migration kit, verify that all necessary wiring is in place and in good shape,

and panel location will accommodate the dimension of this kit.

1. Remove the FS250/MPC outer and inner door. Refer to Figure 1.

OUTER

DOOR

INNER

DOOR

FS-250 BACK

BOX

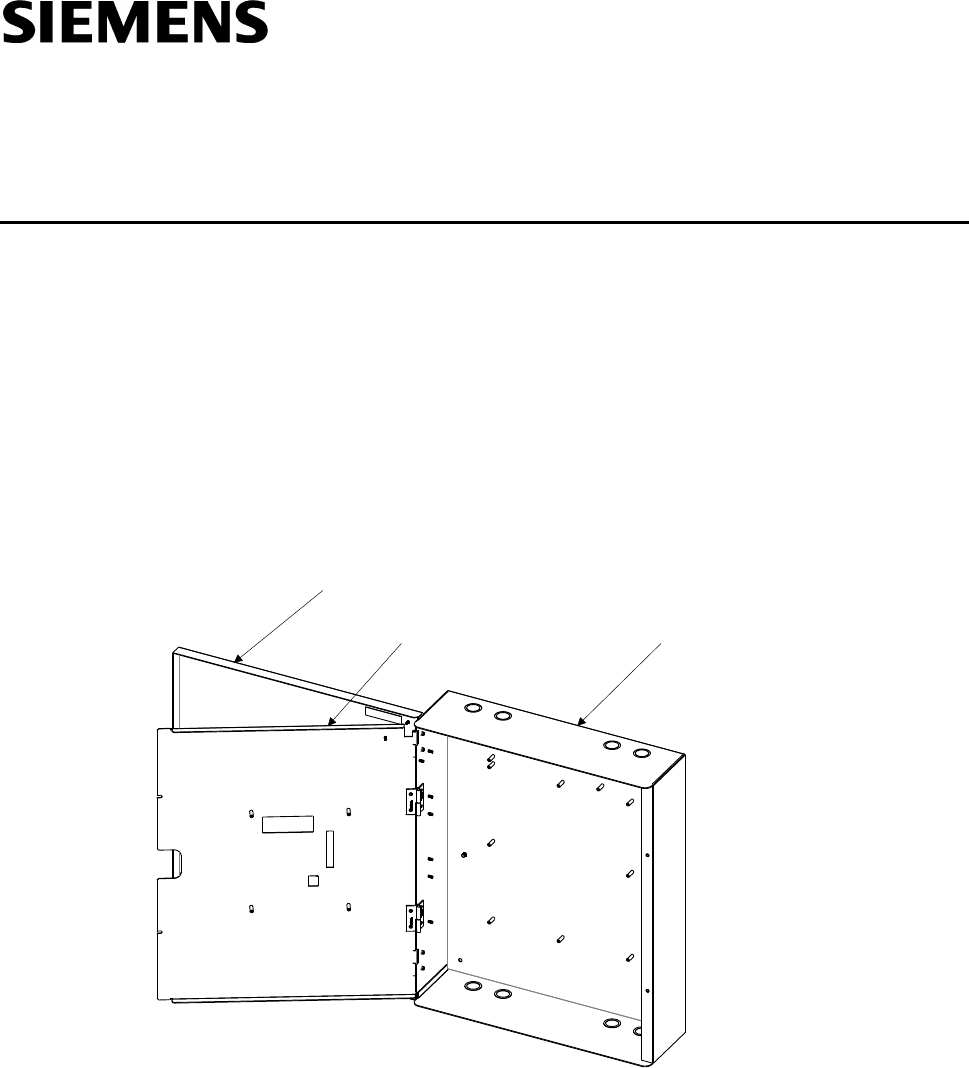

Figure 1: Removing Inner and Outer Doors from the Back Box

NOTE: If the inner door is spot-welded, cut off the locking hinge at the bottom and then slide out from the top

to remove the inner door. Care must be taken to ensure that no sharp edges are protruding due to this

removal.
