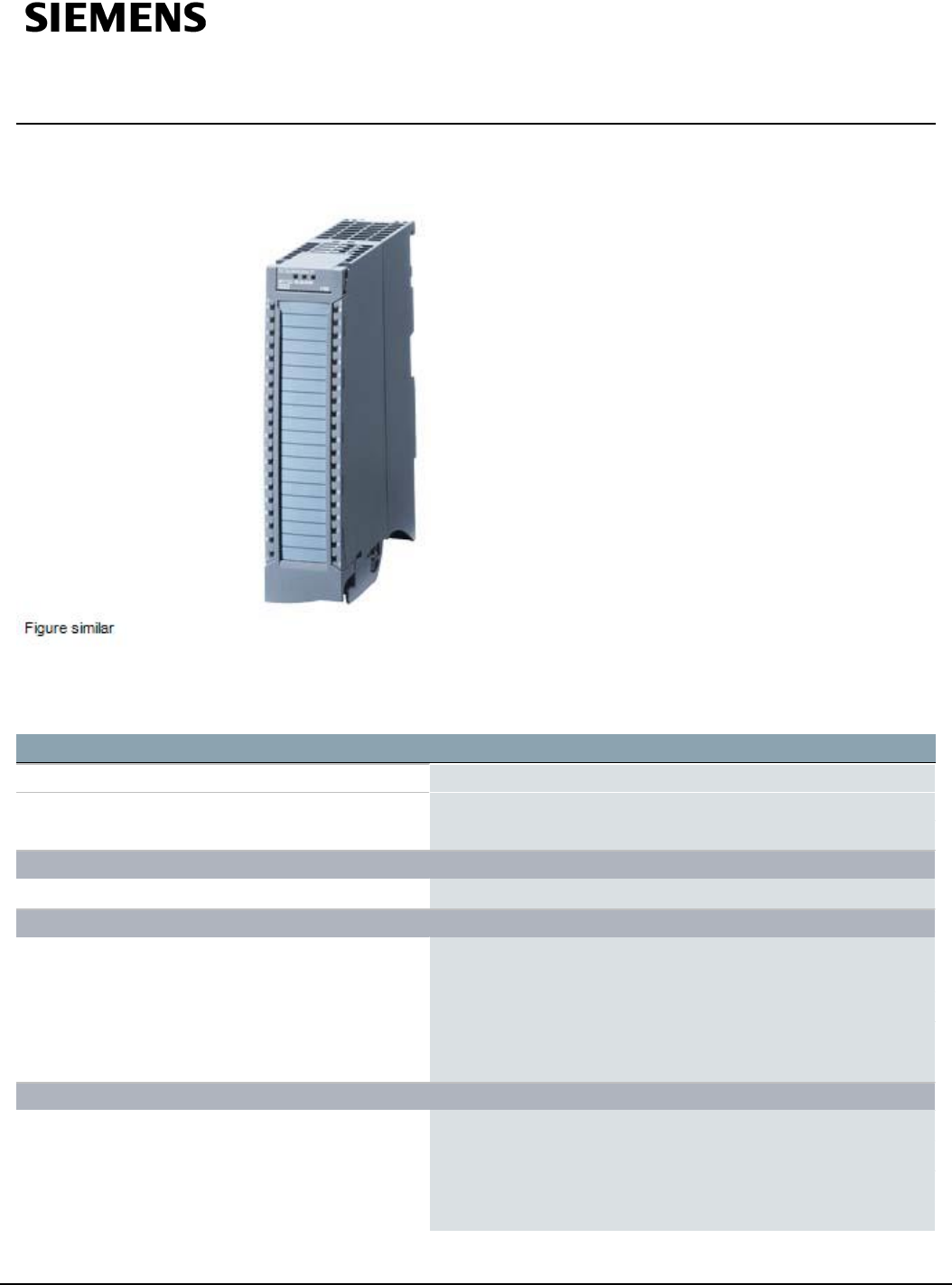

Data sheet 6ES7522-5HF00-0AB0

SIMATIC S7-1500, digital output module DQ 8x230 V AC/5 A ST;

relay; 8 channels in groups of 1; 5 A per group; Diagnostics,

substitute value: Front connector (screw terminals or push-in) to be

ordered separately

General information

HW functional status FS01

Firmware version V2.0.0

● FW update possible

Yes

Product function

● I&M data

Yes; I&M0 to I&M3

Engineering with

● STEP 7 TIA Portal configurable/integrated as of

version

V12 / V12

● STEP 7 configurable/integrated as of version

V5.5 SP3 / -

● PROFIBUS as of GSD version/GSD revision

V1.0 / V5.1

● PROFINET as of GSD version/GSD revision

V2.3 / -

Operating mode

● DQ

Yes

● DQ with energy-saving function

● PWM

● Oversampling

6ES7522-5HF00-0AB0 Subject to change without notice

Page 1/

Summary of content (4 pages)

PAGE 1
Data sheet 6ES7522-5HF00-0AB0 SIMATIC S7-1500, digital output module DQ 8x230 V AC/5 A ST; relay; 8 channels in groups of 1; 5 A per group; Diagnostics, substitute value: Front connector (screw terminals or push-in) to be ordered separately General information HW functional status FS01 Firmware version V2.0.
PAGE 2
● MSO Yes Supply voltage Rated value (DC) 24 V permissible range, lower limit (DC) 20.4 V permissible range, upper limit (DC) 28.8 V Reverse polarity protection Yes Input current Current consumption, max. 80 mA Output voltage Rated value (AC) 230 V; 24 V DC to 120 V DC / 24 V AC to 230 V AC Power Power available from the backplane bus 0.8 W Power loss Power loss, typ.
PAGE 3
● with inductive load, max. 0.5 Hz ● on lamp load, max. 2 Hz Total current of the outputs ● Current per channel, max. 8 A; see additional description in the manual ● Current per group, max. 8 A; see additional description in the manual ● Current per module, max. 64 A; see additional description in the manual Relay outputs ● Number of relay outputs 8 ● Rated supply voltage of relay coil L+ (DC) 24 V ● Current consumption of relays (coil current of all relays), typ.
PAGE 4
Potential separation Potential separation channels ● between the channels Yes; Switching of different phases permitted ● between the channels, in groups of 1 ● between the channels and backplane bus Yes ● Between the channels and load voltage L+ Yes Permissible potential difference between different circuits 250 V AC between the channels and the supply voltage L+; 250 V AC between the channels and the backplane bus; 500 V AC between the channels Isolation Isolation tested with Between channels: 3
