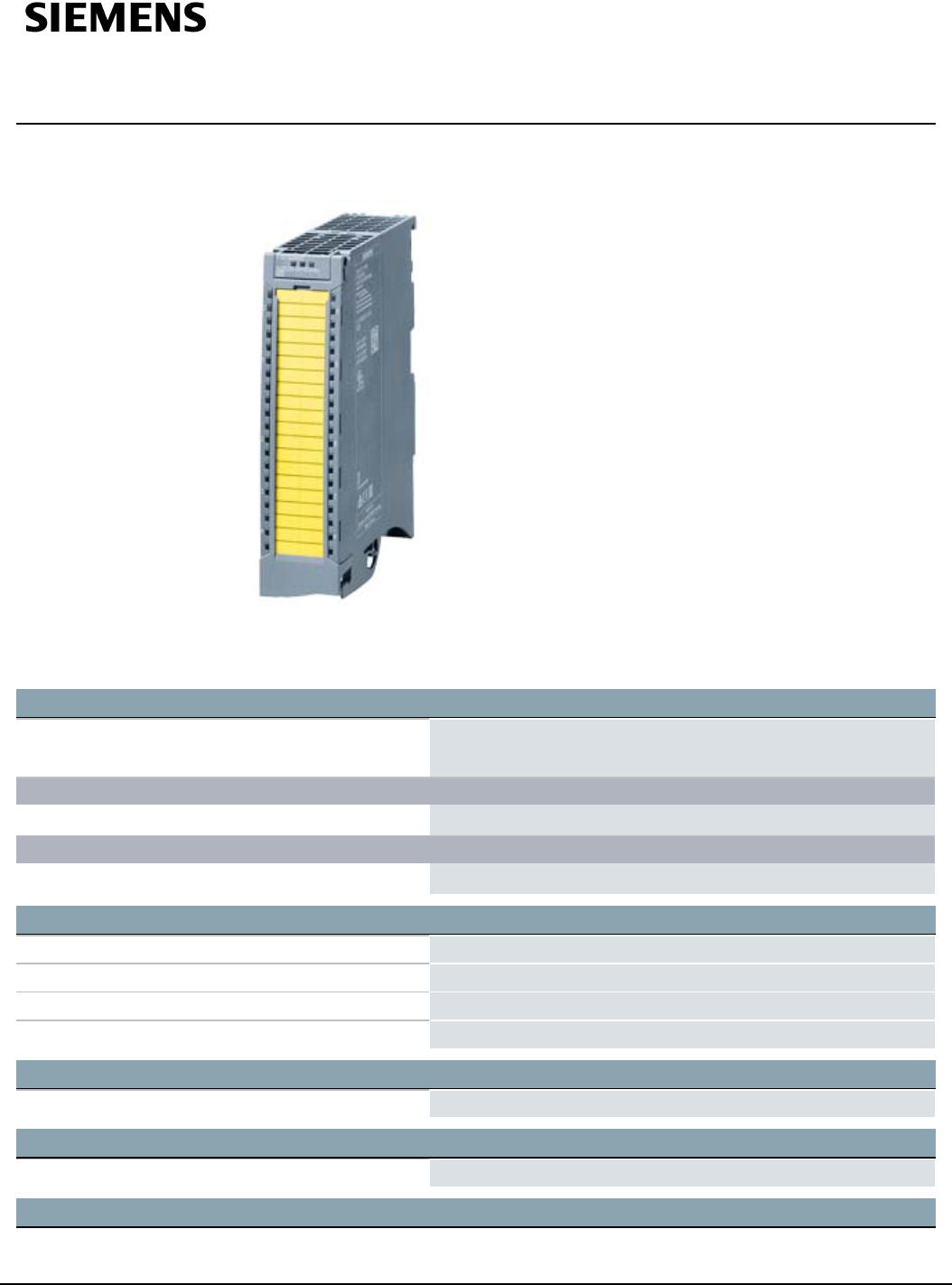

Data sheet 6AG1526-2BF00-2AB0

SIPLUS S7-1500 F-DQ 8x24VDC/2A -25 ... +60°C with conformal

coating based on 6ES7526-2BF00-0AB0 . F DIGITAL OUTPUT

MODULE, F-DQ 8X24VDC 2A "PPM PROFISAFE; 35 mm overall"

"width; UP TO PL E (ISO" 13849-1)/ SIL3 (IEC 61508)

General information

Firmware version

● FW update possible

Yes

Product function

● I&M data

Yes; I&M0 to I&M3

Operating mode

● DQ

Yes

Supply voltage

Rated value (DC) 24V

permissible range, lower limit (DC) 19.2V

permissible range, upper limit (DC) 28.8V

Reverse polarity protection Yes

Input current

Current consumption (rated value) 110mA; without load

Output voltage

Rated value (DC) 24V

Power

6AG1526-2BF00-2AB0 Subject to change without notice

Page 1/

Summary of content (5 pages)

PAGE 1
Data sheet 6AG1526-2BF00-2AB0 SIPLUS S7-1500 F-DQ 8x24VDC/2A -25 ... +60°C with conformal coating based on 6ES7526-2BF00-0AB0 . F DIGITAL OUTPUT MODULE, F-DQ 8X24VDC 2A "PPM PROFISAFE; 35 mm overall" "width; UP TO PL E (ISO" 13849-1)/ SIL3 (IEC 61508) General information Firmware version ● FW update possible Yes Product function ● I&M data Yes; I&M0 to I&M3 Operating mode ● DQ Yes Supply voltage Rated value (DC) 24 V permissible range, lower limit (DC) 19.
PAGE 2
Power available from the backplane bus 0.8 W Power loss Power loss, typ. 11 W Address area Address space per module ● Address space per module, max. 6 byte Hardware configuration Automatic encoding ● Electronic coding element type F Yes Yes Digital outputs Number of digital outputs 8 Current-sinking Yes Current-sourcing Yes Short-circuit protection Yes Open-circuit detection Yes ● Response threshold, typ. Overload protection ● Response threshold, typ.
PAGE 3
vertical installation — up to 40 °C, max. 8A Cable length ● shielded, max. 1 000 m ● unshielded, max.
PAGE 4
● horizontal installation, min. -25 °C; = Tmin ● horizontal installation, max. 60 °C; = Tmax Altitude during operation relating to sea level ● Installation altitude above sea level, max. 2 000 m ● Ambient air temperature-barometric pressurealtitude Tmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) Relative humidity ● With condensation, tested in accordance with IEC 60068-2-38, max. 100 %; RH incl.
PAGE 5
● Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830A Yes; Conformal coating, Class A Dimensions Width 35 mm Height 147 mm Depth 129 mm Weights Weight, approx.
