Controlling the Projector by a Computer
When the RS-232C terminal on the projector is connected to a computer with a DIN-D-sub RS-
232C adaptor (supplied) and an RS-232C serial control cable (cross type, commercially
available), the computer can be used to control the projector and check the status of the
projector. Refer to the “SETUP MANUAL” contained on the supplied CD-ROM for “RS-232C
Specifi cations and Commands”.

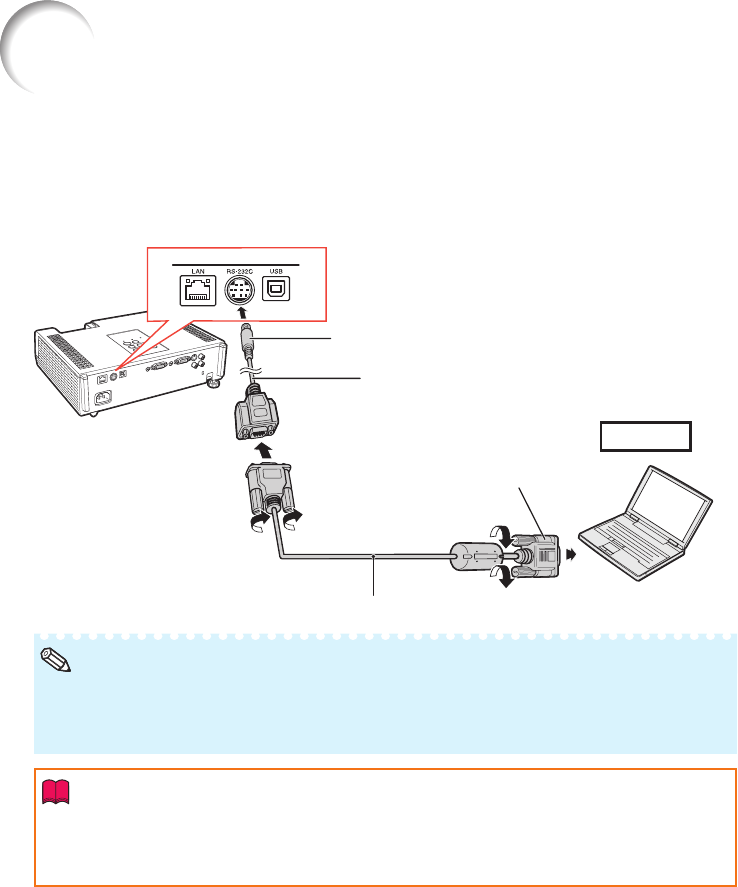

When connecting to a computer using a DIN-D-sub RS-232C adaptor (supplied)
and an RS-232C serial control cable
RS-232C serial control cable (cross type, commercially available)
Computer
DIN-D-sub RS-232C
adaptor (supplied)
To RS-232C terminal
To RS-232C terminal
The RS-232C function may not operate if your computer terminal is not correctly set up. Refer to the
operation manual of the computer for details.
Refer to pages 2 to 9 of the “SETUP MANUAL” contained on the supplied CD-ROM for “Connecting
Pin Assignments” and “RS-232C Specifi cations and Commands”.
•
•
Note
Info
Do not connect the RS-232C cable to a port other than the RS-232C terminal on the computer. This
may damage your computer or projector.
Do not connect or disconnect an RS-232C serial control cable to or from the computer while it is on.
This may damage your computer.
•
•
