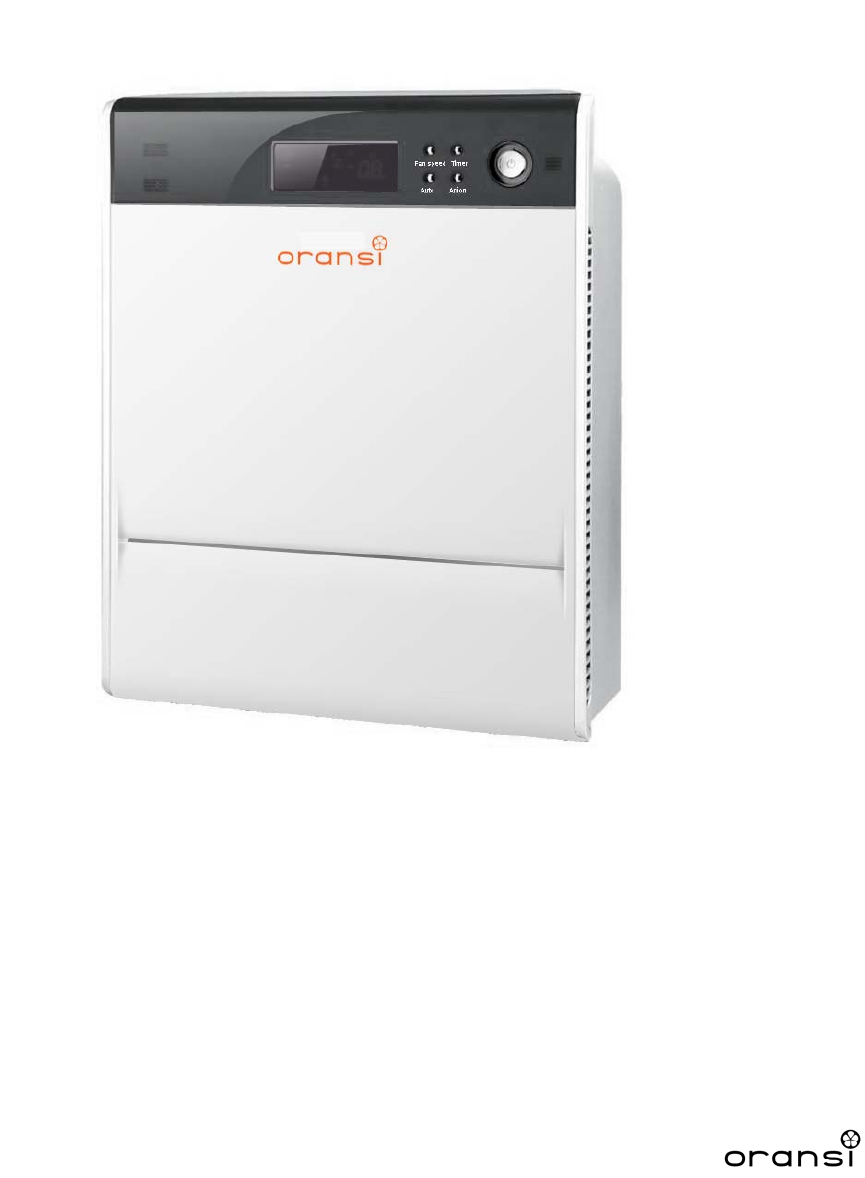

OVHM80 Max Air Purifier
Index Important Safeguards………………………………………….. 2 Air purifier Description…………………………………………..3 Function Description……………………………………………. 4 How to use………………………………………………………..5 Maintenance………………………………………………………6 Troubleshooting…………………………………………………..
Important Safeguards! READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE. WARNING: RISK OF ELECTRICAL SHOCK • • Safety precautions should always be used when operating this or any electrical appliance. Decrease the risk of electrocution, electric shock, injury or fire by reading and following all of the warnings below. • To reduce the risk of electric shock, do not attempt to service the air purifier in any way other than to replace or clean the air filter.
1.Air Purifier Description 1.1 Main Structure A. Front view B. Front air flow inlet C. Front cover D. Pre-filter E. Front panel F. HEPA G. Carbon filter H. Fan I. Side air flow inlet J. Power button K. Air flow outlet L. Function buttons M.LED Display N.Air Quality sensor 1.2 Technical data 120V, 60Hz, 90W, 0.8A 1.3 Purifying Process and Main Features 1.3.1 Pre-Filter Captures larger sized particles like dust. Can be cleaned by vacuuming lightly or wiping with a damp cloth. Do not soak in water. 1.3.
1.3.3 Activated carbon filter The activated carbon filter consists of a vast system of highly adsorbent molecular sized pores to remove gases, light odors and VOC s(volatile organic compounds). 1.3.4 Anion generator Low level and ozone safe negative ionizer to freshen and balance the air (ie neutralizes a surplus of positive charges from TV’s and computer monitors). 1.3.5 Air Quality Sensor (AQS) Measures and displays the air quality.
you are on the Strong fan speed and the air quality is very good the display on the air purifier will show Silent even though the fan speed is operating on Strong (speed 3). The Refresh icon will be illuminated on the panel when the anion feature is activated. can turn this off by pressing the Anion button. You In auto mode, the fan will stay on the speed that you select to run in normal operating mode but will automatically increase speed when the sensor detects extra particulates in the air. 2.
button and the unit will start on the Strong fan speed. Any time the unit is restarted, it will remember its last working status. Night Mode – By pressing the Power button for 3 seconds you can turn off the light around the power button. This will not turn off the icons on the display. 3.2.2 Fan Speed The fan speed cycles in the following order: Strong ---Turbo --- Silent --- Middle The lighted indicator around the power button indicates the fan speed with different colors.
4.3.1 Disassembly Using the front cover removal tool, or any non-conductive item such as a plastic utensil, wooden chop stick or similar, insert the tool into the uppermost side air intake slot and gently push outwards against the back surface of the front cover until the top corner of the front panel ‘pops’ free, as shown below. Repeat this process for the other side and then lift the entire front panel up and away from the main body, exposing the filter compartment.
5. Troubleshooting Problems Cause Solution Air Quality indicator constantly shows poor air quality. Lens inside the sensor is dirty. Turn off and vacuum the sensor (to the right of the power button). Wait a few seconds and power back on. Unit will not turn on. Cover is not fully closed, may be blocked by filters. This occurs sometimes in shipment. Remove the front cover and all of the filters. Re-install the filters and ensure each is fully installed.
