2. If necessary, select the Pattern bank containing the desired Pattern by clicking its pad
grid on the right.
The selected Pattern bank is surrounded by a white border and its Patterns appear in the
list on the left.

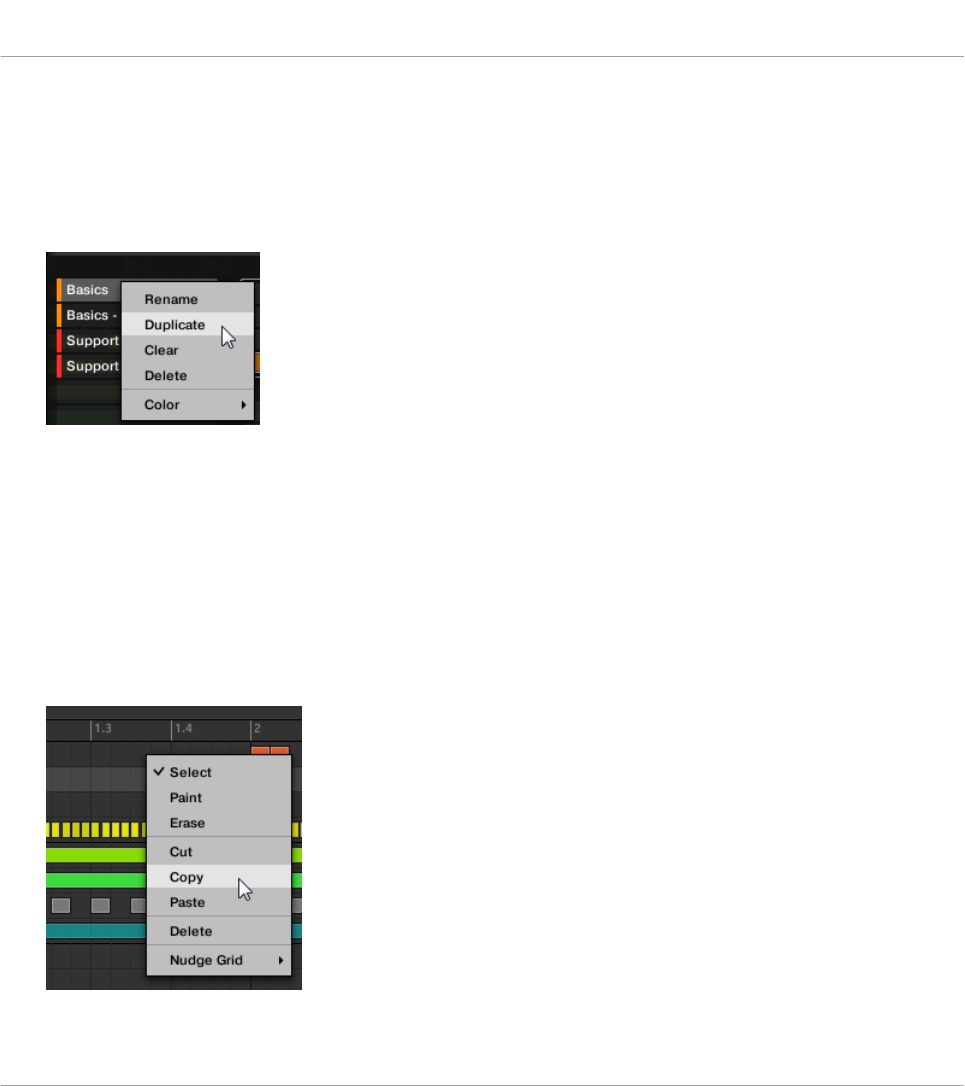

3. Right-click ([Ctrl]-click on Mac OS X) the Pattern slot or the corresponding cell in the pad
grid and select Duplicate from the context menu:
→
A Pattern copy is inserted right after the original Pattern in the Pattern bank — all follow-
ing Patterns are shifted to the next slot.
Copying and Pasting a Pattern
To cut or copy the content of a Pattern and paste it in another Pattern, do the following:
1. Click the Event area’s background to deselect any selected events (your mouse must be in
Select mode).
2. Right-click (on Mac OS X: [Ctrl]+click) the Event area’s background and choose Copy
from the slot’s context menu:
3. Select the Group in which you want to paste the Pattern’s content.
Working with Patterns
Managing Patterns
MASCHINE STUDIO - Manual - 333
