![](/manual/native-instruments/22550/user-manual-english/images/img-292.png)

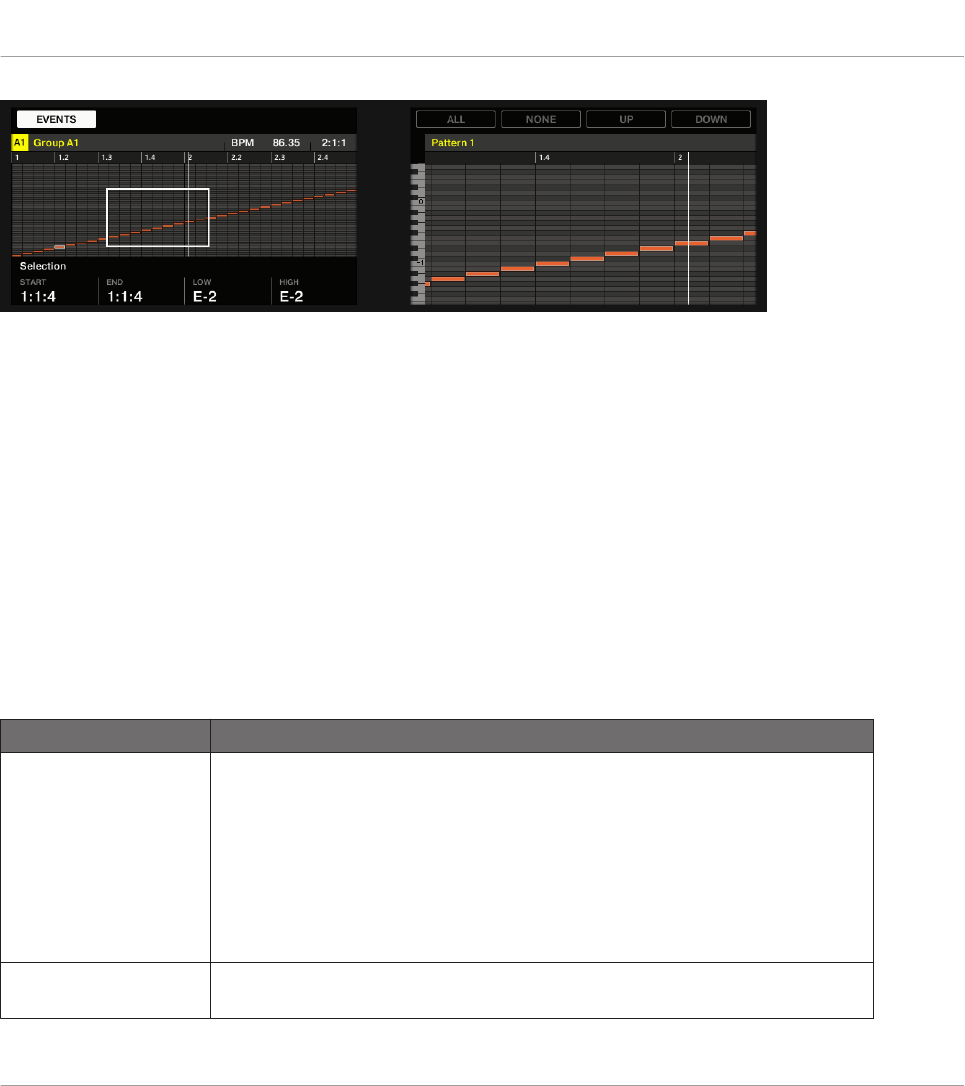

Selecting events on the controller with the pads in Keyboard mode.
▪ The left display shows an overview of the events in your Pattern for all pitches of the fo-
cused Sound.
▪ The right display shows a detailed view of a portion of your Pattern containing events on
two octaves.
You can adjust the right display as follows:
►
Turn Knob 5 and 6 to zoom in/out and scroll on the time axis (horizontal axis), respec-
tively.
►
Turn Knob 7 to scroll on the pitch axis (vertical axis) from events at the lowest pitch until
events at the highest pitch. If all events are within two octaves, they all appear in the dis-
play and Knob 7 is inactive.
You have following selection tools at your disposal:
Selection Tool Description
Pads Unlit pads indicate pitches at which the Pattern has no notes. Nothing happens
when you press them.
Dimmed pads indicate pitches at which notes can be selected: Press any dimmed
pad to add all notes at that pitch to the selection. The pad turns fully lit to indi-
cate that all its notes are selected. You can press any additional dimmed pad to
add its notes to the selection.
Fully lit pads indicate pitches at which all notes are selected: Press any lit pad to
remove all its notes from the selection (the pad turns dim lit).
Button 7/8 (ALL/NONE)
Selects/deselects all notes for all pitches of the current Sound — in short all
events of that Sound.
