OPERATING INSTRUCTIONS INDUSTRIAL SERIES MPS-488HP Power Supply Keep these important operating instructions. Check www.meyersound.com for updates.
DECLARATION OF CONFORMITY ACCORDING TO ISO/IEC GUIDE 22 AND EN 45014 Manufacturer’s Name: Meyer Sound Laboratories Inc. Manufacturer’s Address: 2832 San Pablo Avenue Berkeley, CA 94702-2204, USA Declares that the product: Product Names: MPS-488HP Power Supply Product Options: All Conforms to the following Product Specifications: Safety: EN 60065:2002 EMC: EN55103-1: 1997 emission1 EN55103-2: 1997 immunity2 This device also complies with EN 55103-1 & -2.
SYMBOLS USED These symbols indicate important safety or operating features in this booklet and on the chassis: ! Dangerous voltages: risk of electric shock Important operating instructions Frame or chassis Protective earth ground Pour indiquer les risques résultant de tensions dangereuses Pour indequer important instructions Masse, châssis Terre de protection Warnung vor gefährlicher elektrischer Spannung Wichtige Betriebsanweisung oder Gebrauchsanleitung Rahmen oder Gehäuse Masse Schutzleiter
SAFETY SUMMARY English ■ ■ ■ To reduce the risk of electric shock, disconnect the apparatus from the AC mains before installing audio cable. Reconnect the power cord only after making all signal connections. Connect the apparatus to a two-pole, three-wire grounding mains receptacle. The receptacle must be connected to a fuse or circuit breaker. Connection to any other type of receptacle poses a shock hazard and may violate local electrical codes.
CONTENTS Chapter 1: Introduction How to Use This Manual MPS-488HP External Power Supply Chapter 2: MPS-488HP Front and Rear Panels MPS-488HP Front Panel MPS-488HP Rear Panel MPS-488HP Current Draw Safety Issues 7 7 7 9 9 10 13 13 Chapter 3: Connecting Loudspeakers to the MPS-488HP 15 Appendix A: MPS-488HP Accessories 17 Appendix B: Phoenix and EN3 Cable Assembly 19 Appendix C: MPS-488HP Specifications 25 v
CONTENTS vi
CHAPTER 1: INTRODUCTION HOW TO USE THIS MANUAL MPS-488HP EXTERNAL POWER SUPPLY Make sure to read these operating instructions in their entirety before configuring a loudspeaker system with MPS-488HP power supplies. In particular, pay close attention to material related to safety issues. The MPS-488HP external power supply delivers DC power and balanced audio to up to eight Meyer Sound loudspeakers that require an external 48 V DC power supply.
CHAPTER 1: INTRODUCTION ticonductor cables (such as Belden® 1502 or equivalent) allows a single cable to carry both audio and DC power from the MPS-488HP to the loudspeakers. Longer cable lengths are possible for moderate applications that don't drive the loudspeakers to maximum output, as well as for installations with heavier wire gauges.

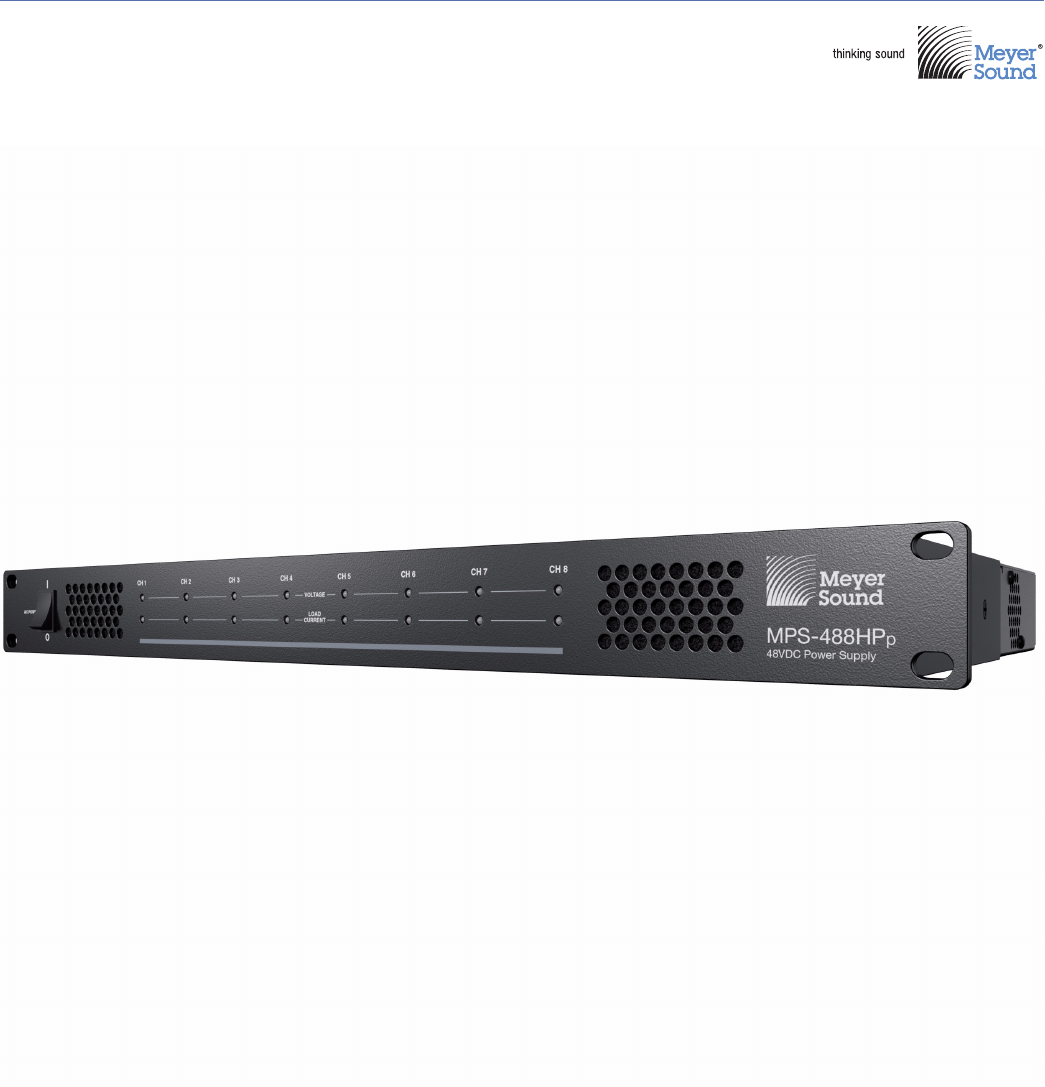

CHAPTER 2: MPS-488HP FRONT AND REAR PANELS MPS-488HP FRONT PANEL Blue Voltage LEDs (1–8) The MPS-488HP front panel includes a power switch and LEDs for monitoring each loudspeaker channel. The blue Voltage LEDs indicate whether voltage is present for the Channel Outputs. These LEDs should be lit when the MPS-488HP is powered on. The MPS-488HP’s intelligent circuit protection shields connected loudspeakers from surges and shorts.
CHAPTER 2: MPS-488HP FRONT AND REAR PANELS Green Load Current LEDs (1–8) MPS-488HP REAR PANEL The green Load Current LEDs indicate whether loudspeakers are connected to the Channel Outputs and receiving power. As a channel’s audio signal increases, its LED glows brighter. If an LED is not lit, check that the channel’s Voltage LED is lit and verify the cable connection to the loudspeaker. The MPS-488HP’s intelligent circuit protection shields connected loudspeakers from surges and shorts.
MPS-488HP OPERATING INSTRUCTIONS Link Switches Routing Two Inputs to Four Outputs Each Link switches determine how Channel Inputs are routed to Channel Outputs. When a Channel Input’s Link switch is OFF (set to the down position), the input is only routed to its corresponding output: for example, Channel Input 1 routed to Channel Output 1.
CHAPTER 2: MPS-488HP FRONT AND REAR PANELS To avoid distortion when linking Channel Inputs, make sure the source device can drive the total load impedance of the linked loudspeakers. The source device must be capable of delivering a minimum of 16 dBV (6.3 V rms into 600 ohms) to yield the maximum peak SPL over the operating bandwidth of the loudspeaker. NOTE: Most source devices are capable of driving loads no smaller than 10 times their output impedance.
MPS-488HP OPERATING INSTRUCTIONS MPS-488HP CURRENT DRAW SAFETY ISSUES The current draw for the MPS-488HP and its connected loudspeakers is dynamic and fluctuates as operating levels change. Since different cables and circuit breakers heat up at varying rates, it is important to understand the following types of current ratings and how they affect circuit breaker and cable specifications. Pay close attention to these important electrical and safety issues.
CHAPTER 2: MPS-488HP FRONT AND REAR PANELS 14
CHAPTER 3: CONNECTING LOUDSPEAKERS TO THE MPS-488HP NOTE: For information on cable requirements for your loudspeaker, refer to its operating instructions. For information on cables and cable accessories available from Meyer Sound, see Appendix A, “MPS-488HP Accessories.” For information on cable assembly, see Appendix B, “Phoenix and EN3 Cable Assembly.” CAUTION: When wiring cable connections for MPS-488HP Channel Outputs, it is extremely important that each pin in the connector be wired correctly.
CHAPTER 3: CONNECTING LOUDSPEAKERS TO THE MPS-488HP ■ When connecting loudspeakers equipped with EN3 connectors to the MPS-488HPe power supply, use EN3 5pin male to EN3 5-pin female cables. 5. Power on the MPS-488HP and monitor the LEDs on its front panel to verify the connections (see “Voltage and Load Current LEDs (1–8)” on page 9). 6. Check loudspeaker LEDs to verify whether the loudspeakers are ready to reproduce audio. 7.
APPENDIX A: MPS-488HP ACCESSORIES PHOENIX AND EN3 CABLE CONNECTORS AND ADAPTERS The following cable connectors and adapters are available from Meyer Sound. Phoenix and EN3 Cable Connectors and Adapters Part Number Connector/Adapter Use 484.065 Phoenix 5-pin female cable mount connector Connects to MPS-488HPp Channel Outputs and loudspeakers equipped with Phoenix connectors 468.069 EN3 5-pin female cable mount connector Connects to loudspeakers equipped with EN3 connectors 468.
APPENDIX A: MPS-488HP ACCESSORIES Phoenix and EN3 Loudspeaker Cables Part Number Cable Color Coating Length 28.163.009.31 EN3 5-pin female to EN3 5-pin male White Plenum 10 ft 28.163.009.32 20 ft 28.163.009.33 30 ft 28.163.009.34 50 ft 28.163.009.35 100 ft 28.163.009.36 150 ft 28.163.033.01 Cable coupler EN3 5-pin female-to-male (joins two cables: one with an EN3 5-pin male cable mount connector to one with an EN3 5-pin female cable mount connector) 28.163.009.
APPENDIX B: PHOENIX AND EN3 CABLE ASSEMBLY CAUTION: When wiring cable connections for MPS-488HP Channel Outputs, it is extremely important that each pin in the connector be wired correctly. Make sure the 48 V DC from the MPS-488HP is wired directly (and only) to the 48 V DC pins on the loudspeaker connector, and that the polarity is observed (negative to negative, positive to positive) to avoid damage to the loudspeaker.
APPENDIX B: PHOENIX AND EN3 CABLE ASSEMBLY 2. If the cable has not been stripped, strip the outer shielding 1 inch and then strip the black, red, blue, and white wires .275 inch. 1” 0.275” 3. Solder the five exposed conductors to the five pins on the EN3 cord connector using the following wiring scheme.
MPS-488HP OPERATING INSTRUCTIONS 5. Repeat the previous steps to attach the EN3 5-pin female connector to the other end of the cable.
APPENDIX B: PHOENIX AND EN3 CABLE ASSEMBLY 2. Insert the five exposed conductors into the five cable holes in the Phoenix connector using the following wiring scheme. Pin #1 Black 48 V DC (–) Pin #2 Red 48 V DC (+) Pin #3 Unshielded Audio shield Pin #4 Blue Audio (–) Pin #5 White Audio (+) Side (cable attached) Connector side up Phoenix 5-Pin Female Cable Mount Connector 3. Secure the conductors by tightening the five screws in the Phoenix conductor. Tighten screws 4.
MPS-488HP OPERATING INSTRUCTIONS 6. Solder the five exposed conductors to the five pins on the EN3 cord connector using the following wiring scheme. Dimple identifies Pin #1 Pin #5, White, audio (+) Pin #5, White, audio (+) Pin #1, Black, 48 V DC (–) Pin #2, Red, 48 V DC (+) Pin #4, Blue, audio (–) Pin #4, Blue, audio (–) REAR FRONT Pin #3, Unshielded, audio shield Pin Destinations for EN3 5-Pin Female Cable Mount Connector 7.
APPENDIX B: PHOENIX AND EN3 CABLE ASSEMBLY 2. Insert the five exposed conductors, from one end of the cable, into the five cable holes in one of the Phoenix connectors. Use the following wiring scheme. Pin #1 Black 48 V DC (–) Pin #2 Red 48 V DC (+) Pin #3 Shield Audio shield Pin #4 Blue Audio (–) Pin #5 White Audio (+) Side (cable attached) Connector side up Phoenix 5-Pin Female Cable Mount Connector 3. Secure the conductors by tightening the five screws in the Phoenix connector.
APPENDIX C: MPS-488HP SPECIFICATIONS MPS-488HP Specifications FRONT PANEL LEDs Eight LEDs to indicate output voltage Eight LEDs to indicate load current REAR PANEL Audio Inputs Eight XLR 3-pin female connectors Link switches to route to outputs Channel Outputs On MPS-488HPp model, eight Phoenix 5-pin connectors On MPS-488HPe model, eight EN3 5-pin connectors Output Voltage 48 V DC per channel (with intelligent circuit protection against surges and shorts) AC POWER AC Connector PowerCon Voltage Sel
APPENDIX C: MPS-488HP SPECIFICATIONS MPS-488HP Specifications Current Draw with Eight MM-10XP Subwoofers Idle Current 0.74 A rms (115 V AC); 0.54 A rms (230 V AC); 0.81 A rms (100 V AC) Maximum Long-Term Continuous Current 3.08 A rms (115 V AC); 1.49 A rms (230 V AC); 3.46 A rms (100 V AC) Burst Current 5.48 A rms (115 V AC); 3.21 A rms (230 V AC); 5.57 A rms (100 V AC) Ultimate Short-Term Peak Current 9.56 A peak (115 V AC); 4.96 A peak (230 V AC); 10.28 A peak (100 V AC) Inrush Current 20.
MPS-488HP OPERATING INSTRUCTIONS MPS-488HPp DIMENSIONS 19.00 [483 mm] 14.10 [358 mm] 16.90 [429 mm] 1.73 [44 mm] 13.
APPENDIX C: MPS-488HP SPECIFICATIONS MPS-488HPe DIMENSIONS 19.00 [483 mm] 14.33 [364 mm] 16.90 [429 mm] 1.73 [44 mm] 13.
