General Description

The MAX4051/MAX4052/MAX4053 and MAX4051A/

MAX4052A/MAX4053A are low-voltage, CMOS analog

ICs configured as an 8-channel multiplexer (MAX4051/A),

two 4-channel multiplexers (MAX4052/A), and three sin-

gle-pole/double-throw (SPDT) switches (MAX4053/A).

The A-suffix parts are fully characterized for on-resistance

match, on-resistance flatness, and low leakage.

These CMOS devices can operate continuously with

dual power supplies ranging from ±2.7V to ±8V or a

single supply between +2.7V and +16V. Each switch

can handle rail-to-rail analog signals. The off-leakage

current is only 0.1nA at +25°C or 5nA at +85°C

(MAX4051A/MAX4052A/MAX4053A).

All digital inputs have 0.8V to 2.4V logic thresholds,

ensuring TTL/CMOS-logic compatibility when using

±5V or a single +5V supply.

________________________Applications

Battery-Operated Equipment

Audio and Video Signal Routing

Low-Voltage Data-Acquisition Systems

Communications Circuits

____________________________Features

♦ Pin Compatible with Industry-Standard

74HC4051/74HC4052/74HC4053

♦ Guaranteed On-Resistance:

100Ω with ±5V Supplies

♦ Guaranteed Match Between Channels:

6Ω (MAX4051A–MAX4053A)

12Ω (MAX4051–MAX4053)

♦ Guaranteed Low Off-Leakage Currents:

0.1nA at +25°C (MAX4051A–MAX4053A)

1nA at +25°C (MAX4051–MAX4053)

♦ Guaranteed Low On-Leakage Currents:

0.1nA at +25°C (MAX4051A–MAX4053A)

1nA at +25°C (MAX4051–MAX4053)

♦ Single-Supply Operation from +2.0V to +16V

Dual-Supply Operation from ±2.7V to ±8V

♦ TTL/CMOS-Logic Compatible

♦ Low Distortion: < 0.04% (600Ω)

♦ Low Crosstalk: < -90dB (50Ω)

♦ High Off-Isolation: < -90dB (50Ω)

MAX4051/A, MAX4052/A, MAX4053/A

Low-Voltage, CMOS Analog

Multiplexers/Switches

________________________________________________________________ Maxim Integrated Products 1

V+

NO2

NO1

NO0

NO3

ADDA

ADDB

ADDC

NO4

NO6

COM

NO7

NO5

INH

V-

GND

TOP VIEW

MAX4051

DIP/SO/QSOP

LOGIC

V+

COMB

COMC

NOC

NCC

ADDC

ADDB

ADDA

NOB

NCB

NOA

COMA

NCA

INH

V-

GND

MAX4053

DIP/SO/QSOP

V+

NO2A

NO1A

COMA

NO0A

NO3A

ADDA

ADDB

NO0B

NO2B

COMB

NO3B

NO1B

INH

V-

GND

MAX4052

DIP/SO/QSOP

LOGIC

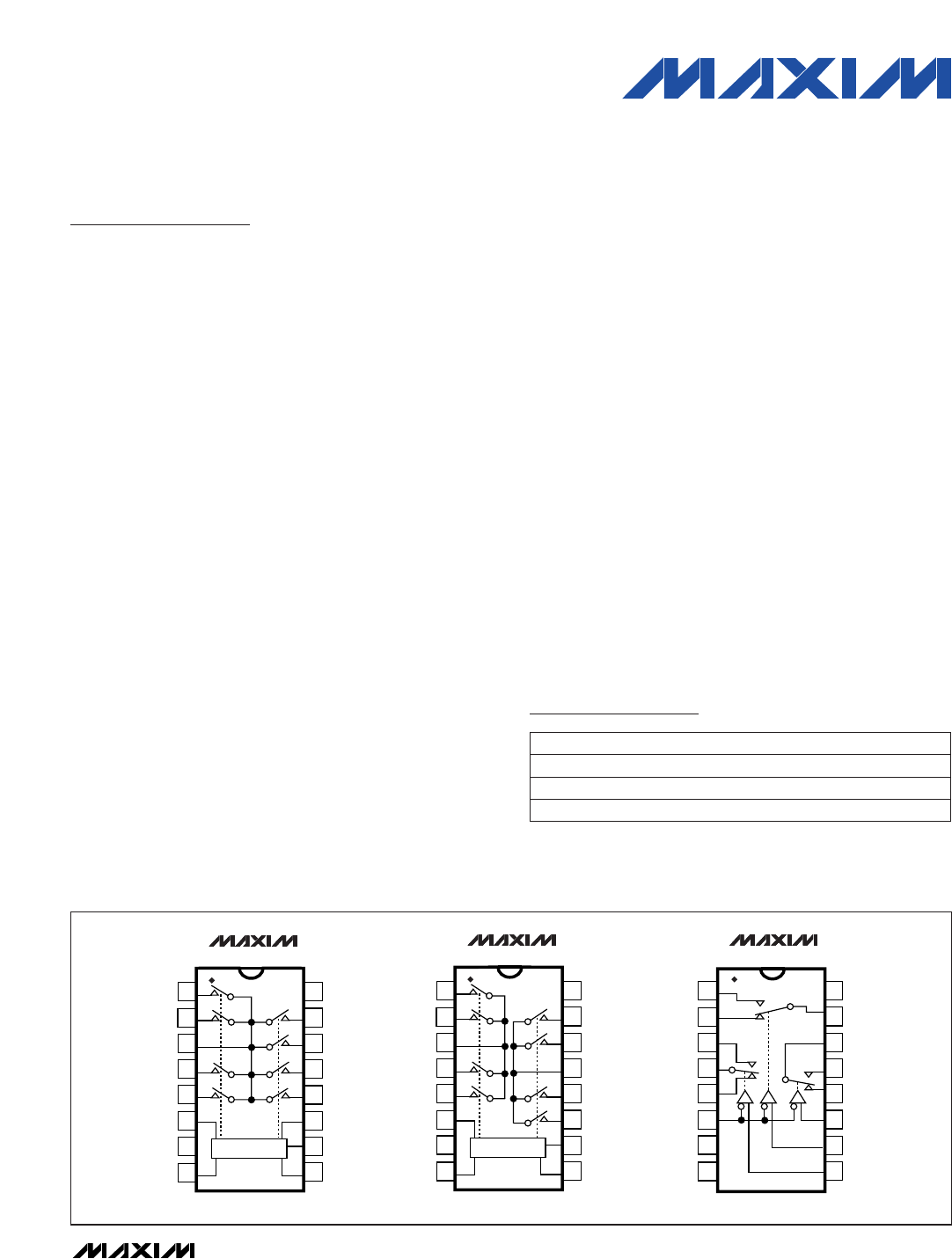

___________________________________Pin Configurations/Functional Diagrams

19-0463; Rev 2; 10/05

PART

MAX4051ACPE

MAX4051ACSE

MAX4051ACEE 0°C to +70°C

0°C to +70°C

TEMP RANGE PIN-PACKAGE

16 Plastic DIP

16 Narrow SO

16 QSOP

Ordering Information

Ordering Information continued at end of data sheet.

For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at

1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.
