Multi-format LCD Monitor Instruction Manual

18
REMOTE SETTING
Settings for the external control
Item To do Setting value
SERIAL TYPE
Select the input terminal used for external control by
serial communication.
RS232C, RS485
PARALLEL TYPE
Select the external control method for the MAKE/
TRIGGER terminal.
MAKE, TRIGGER, SET
PIN1
PIN2
PIN3
PIN4
PIN5
Assign the control functions to the pins of the MAKE/
TRIGGER terminal.
• Assign a function to each pin terminal by selecting
“SET” in “PARALLEL TYPE” mentioned above.
(The functions are assigned for “PIN6” – “PIN8”
and you cannot change the assignment of these
functions.)
☞ “Functions controlled by the
MAKE/TRIGGER system” on
page 21
INFORMATION
Settings for the information display of the monitor
Item To do Setting value
POSITION
Select the position to show the information display. (☞ “On the
Information Display” on page 7)
UPPER, LOWER
SOURCE ID
Select whether the name assigned in “CHARACTER SET.” is
displayed on the screen. (☞ “On the Information Display” on page 7)
• When “AUTO” is selected, the display color synchronizes with the
color of the tally lamp while the tally lamp is lit.
OFF, ON, AUTO
CHARACTER
SET.*
1
Assign a name to each video source as you like (10 characters at
maximum). You can also enter a name using the RS-232C system.
☞ “NOTE”
STATUS DISPLAY
Select whether the status of the current input and the setting of
muting are displayed on the screen. (☞ “On the Status Display” on
page 7)
AUTO, OFF, ON
TIME CODE
Select the type of the TIME CODE display. VITC *
2
, LTC *
2
,
D-VITC
CRC ERROR
Select whether the CRC error indication for the input HD SDI signal is
displayed on the screen. (☞ “On the Information Display” on page 7)
ON, OFF
SUB HOUR METER
Display the hours of use (unit: hour). You can reset this item.
MODEL
Display the model name of the monitor.
VERSION
Display the version of the monitor.
HOUR METER
Display the total hours of use (unit: hour). This item is used for maintenance of the
monitor. You cannot reset this item.
*
1
Memorized for each input.
*
2
Ancillary time code
(☞ “External Control” on pages 20 to 23)

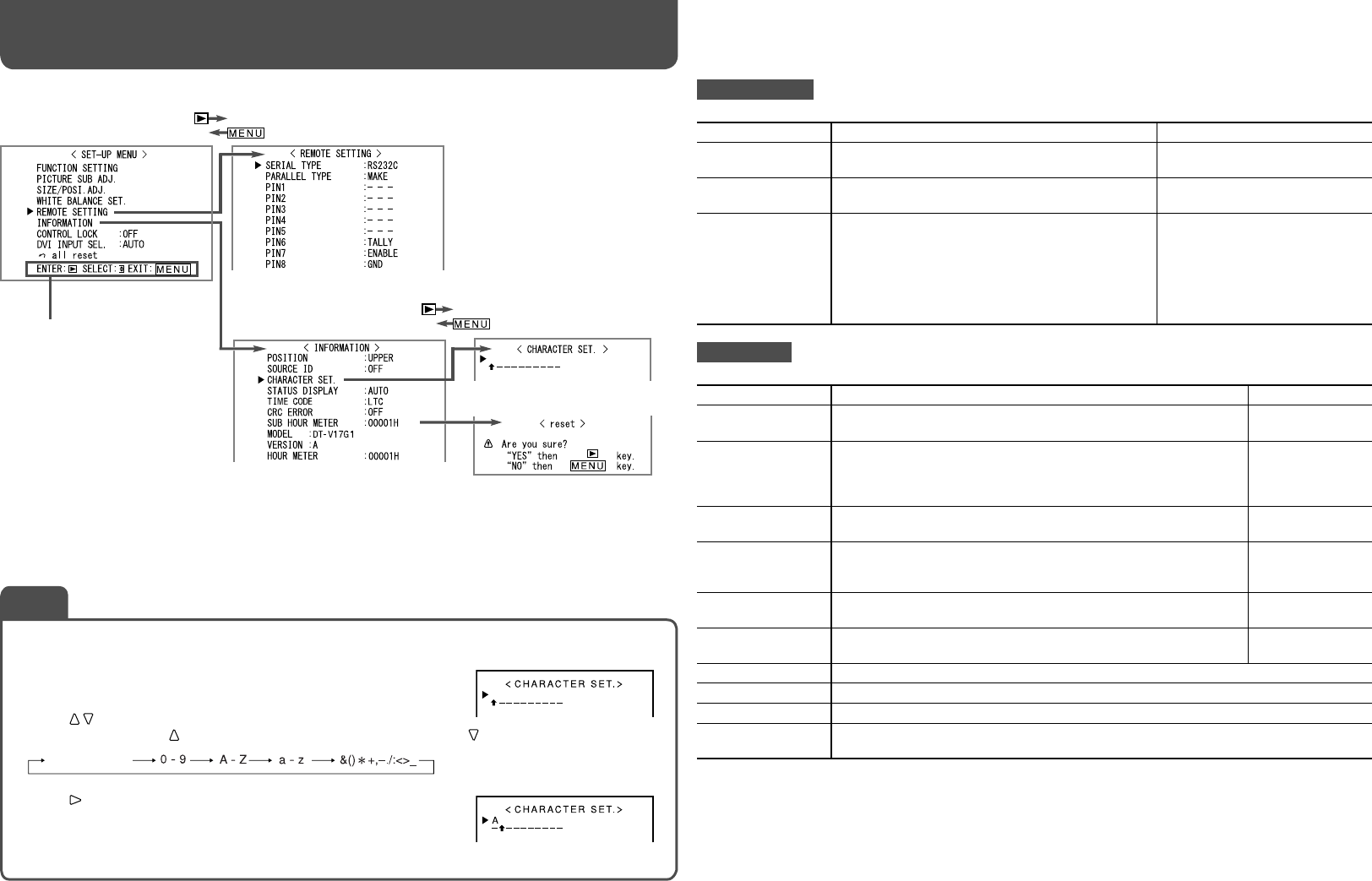

Menu Configuration—SET-UP MENU (cont.)
For the operation procedure, see page 7.
Operation guide
Shows the buttons for each
operation.
Setting of “CHARACTER SET.”
Assign a name for each video source.
1 Change the input to one that you want to assign a video source name for.
2 Select “CHARACTER SET.”
3 Press buttons to select the first character.
• Each time you press button, the character changes as follows. Press button to reverse the order.
4 Press button to move the arrow to the next space.
• The characters entered before moving the arrow are memorized.
5 Repeat steps 3 and 4 (10 characters at maximum).
6 Press MENU button to store the name.
Space
NOTE
• The menu automatically disappears in about 30 seconds after the previous operation.
• Some items may not appear on the menu depending on the input or the input signal.
• The items controlled by the MAKE system do not appear on the menu.
