Multi-format LCD Monitor Instruction Manual

17
ENGLISH

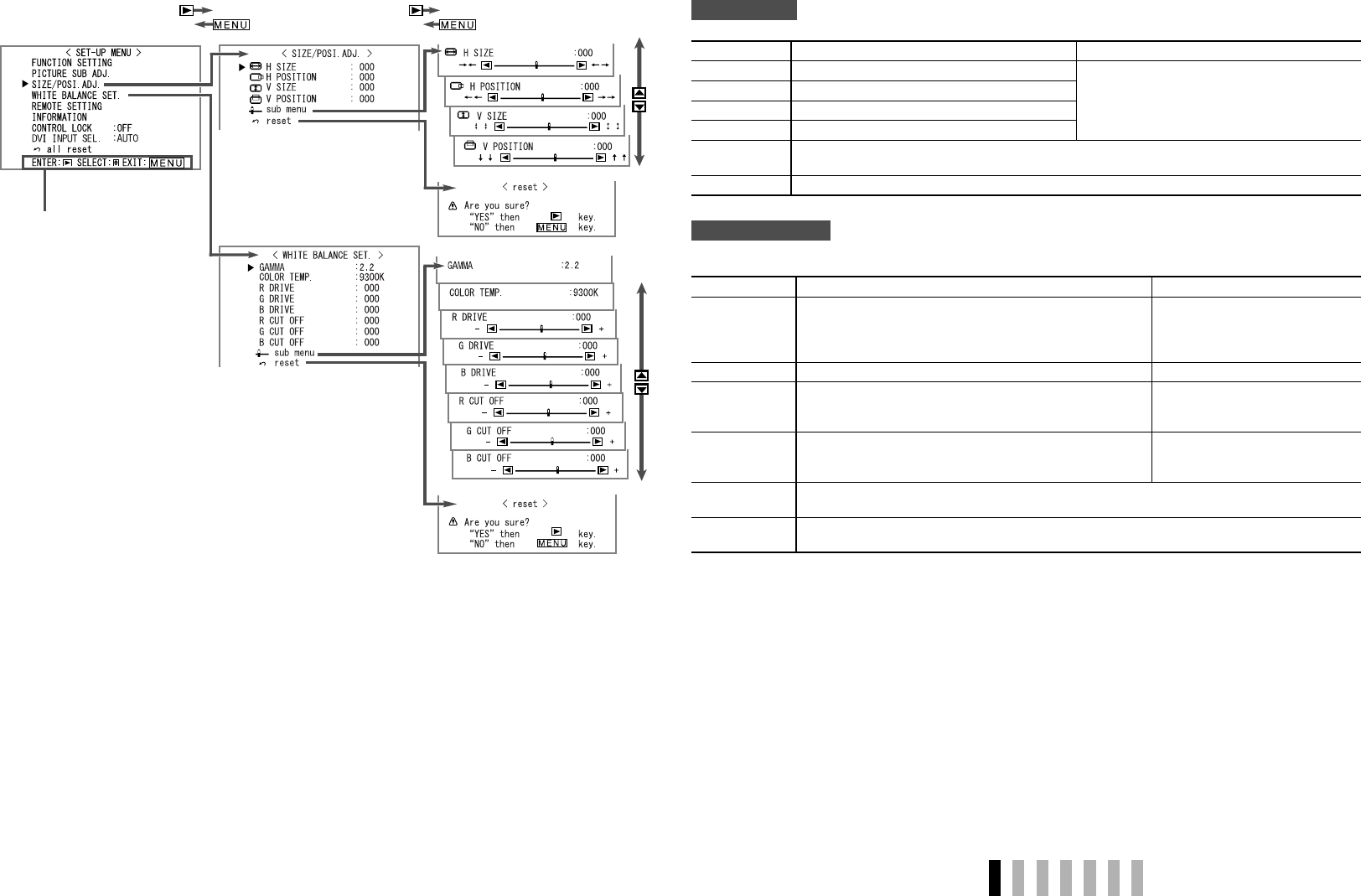

Operation guide
Shows the buttons for each
operation.
• The menu automatically disappears in about 30 seconds after the previous operation.
• Some items may not appear on the menu depending on the input or the input signal.
• The items controlled by the MAKE system do not appear on the menu.
SIZE/POSI. ADJ.
Adjusts the size and position of the picture.
Item To do Setting value
H SIZE*
1
Adjust the horizontal picture size. Setting value varies depending on the signals.
H POSITION*
1
Adjust the horizontal picture position.
V SIZE*
1
Adjust the vertical picture size.
V POSITION*
1
Adjust the vertical picture position.
sub menu
Display the sub menu which enables you to adjust the items of “SIZE/POSI. ADJ.” while
viewing the actual picture.
reset
Restore the default settings for all the items in “SIZE/POSI. ADJ.”
*
1
Memorized for each signal format.
WHITE BALANCE SET.
Selects the GAMMA correction value, color temperature and adjusts the drive level and cutoff point of each color
(R/G/B).
Item To do Setting value
GAMMA
Select the GAMMA correction value. 2.2 (equivalent to Υ 2.2)
2.35 (equivalent to Υ 2.35)
2.4 (equivalent to Υ 2.4)
2.6 (equivalent to Υ 2.6)
COLOR TEMP.
Select the color temperature. 9300K, 6500K, USER
R DRIVE
G DRIVE
B DRIVE*
2
Adjust the drive level of each color (red, green, and blue). MIN – 000 – MAX (in 256 grades)
R CUT OFF
G CUT OFF
B CUT OFF*
2
Adjust the cutoff point of each color (red, green, and blue). MIN – 000 – MAX (in 256 grades)
sub menu
Display the sub menu which enables you to adjust the items in “WHITE BALANCE SET.” while
viewing the actual picture.
reset
Restore the default settings for the drive levels and cutoff points of the selected color
temperature.
*
2
Memorized for each color temperature.
