Dimensions Guide

Architectural Detail Manual
July 2010
JELD-WEN reserves the right to change specifications without notice.
Pa
g
e7-9

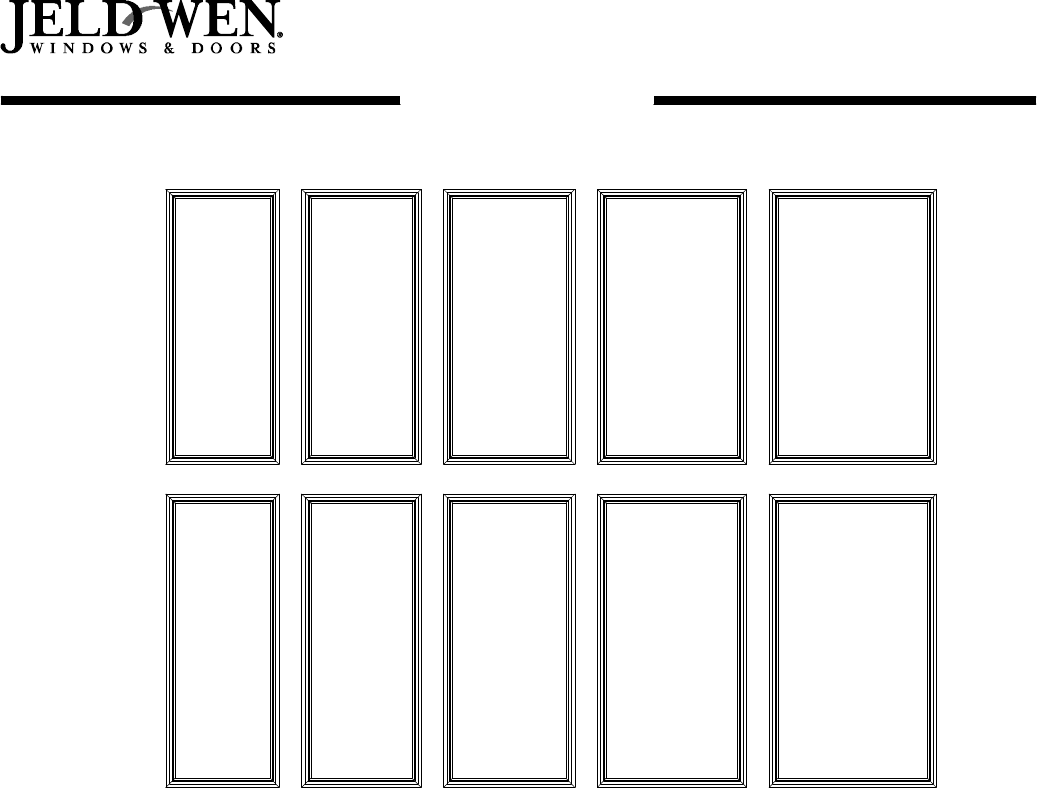

PICTURE UNITS
PPC3690 PPC3890 PPC4290 PPC4890 PPC5490
PPC3696 PPC3896 PPC4296 PPC4896 PPC5496
35 35 35 35 35
35 35 35 35 35
36”(914)
37 3/4”(959)
35 1/2”(902)
31 7/8”(810)
38”(965)
39 3/4”(1010)
37 1/2”(953)
33 7/8”(860)
42”(1067)
43 3/4”(1111)
41 1/2”(1054)
37 7/8”(962)
48”(1219)
49 3/4”(1264)
47 1/2”(1207)
43 7/8”(1114)
54”(1372)
55 3/4”(1416)
53 1/2”(1359)
49 7/8”(1267)DAYLIGHT OPENING
FRAME SIZE
ROUGH OPENING
UNIT SIZE
90”(2286)
91 3/4”(2330) 89 1/2”(2273) 85 7/8”(2181)
96”(2438)
97 3/4”(2483) 95 1/2”(2426) 91 7/8”(2334)
ELEVATION SYMBOL LEGEND:
VALUES IN () ARE IN MILLIMETER CONVERSIONS
## INDICAT ES DESIGN PRESSURE (DP) RATING WITH STANDARD GLAZING
Note: Elevations shown DO NOT have exterior trim. Subtract 1/2”(12.7) from M.O.(Masonry Opening) for Unit Sizes. Masonry openings above include SillNose,seeTrimOptions
page for Si ll Nose specifications. For other Trim Options refer to the Unit Sizing, Rough Opening & Masonry Openings page.
Fixed, Radius and Geometric Windows
Premium Vinyl
SCALE: 1
/
4” = 1’
