Built-In Electric Oven Self Clean Thermal Convection Parts List

ManualsBrandsIKEA ManualsOvenIBS550PWS00

Table Of Contents

OVEN PARTS

For Models: IBS550PWW00, IBS550PWS00

(White) (Stainless)

8−09 Litho in U.S.A. (drd) (eeb)

Part No. W10291023 Rev. A

30" BUILT−IN

ELECTRIC OVEN

SELF CLEAN

THERMAL CONVECTION

Summary of content (7 pages)

PAGE 1
OVEN PARTS For Models: IBS550PWW00, IBS550PWS00 (White) (Stainless) 8−09 Litho in U.S.A. (drd) (eeb) 1 30" BUILT−IN ELECTRIC OVEN SELF CLEAN THERMAL CONVECTION Part No. W10291023 Rev.
PAGE 2
OVEN PARTS For Models: IBS550PWW00, IBS550PWS00 (White) (Stainless) Illus. No. 1 3 4 6 7 8 9 10 11 Part No. DESCRIPTION Literature Parts W10210919 Instructions, Installation W10075750 Instruction, Installer W10270566 Owners Manual W10201489 Tech Sheet 8304572 Installation/ Undercounter Hinge Receiver 4455606 Right 4455605 Left W10105790 Bumper, Door 8285593 Cover, Wire 8303099 Top Chassis 4449809 Screw 4452158 Tube, Vent W10067870 Lens, Light W10009930 Assembly, Oven Light Illus. No. Part No.
PAGE 3
OVEN DOOR PARTS For Models: IBS550PWW00, IBS550PWS00 (White) (Stainless) Illus. No. 1 2 3 4 5 6 7 Part No. DESCRIPTION 9759413 Door Liner Hinge, Door 9760577 Right 9760578 Left 4449259 Glass, Inner 4451722 Insulation, Door 4449743 Screw W10169394 Screw 9759225 Glass, Inner W10291023 Illus. No. Part No.
PAGE 4

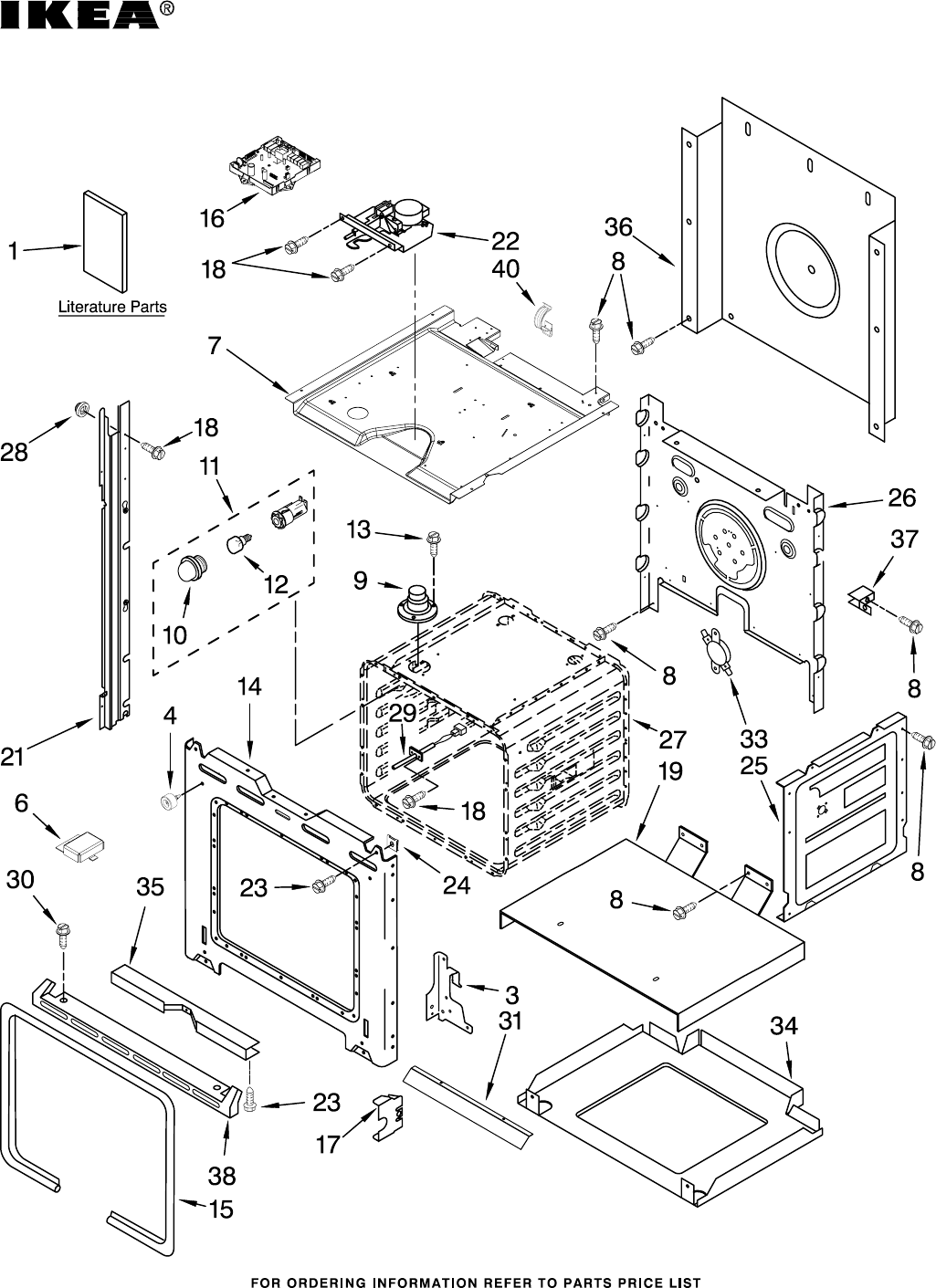

INTERNAL OVEN PARTS For Models: IBS550PWW00, IBS550PWS00 (White) (Stainless) Illus. No. 1 2 3 4 5 6 7 8 9 Part No.
PAGE 5
CONTROL PANEL PARTS For Models: IBS550PWW00, IBS550PWS00 (White) (Stainless) Illus. No. Part No.
PAGE 6
TOP VENTING PARTS For Models: IBS550PWW00, IBS550PWS00 (White) (Stainless) Illus. No. Part No. 1 2 3 4451759 4455178 8300223 4455352 4451758 4455177 9760587 4 5 6 DESCRIPTION Vent, Exhaust Elbow, Vent−Top Blower Bracket Block, Foam Elbow, Vent−Bottom Transformer, Control Illus. No. Part No. DESCRIPTION 7 W10171405 Mounting Plate 8 8303076 Insulation 9 4449040 Screw 10 3400080 Screw 11 7401P038−60 Block, Terminal 12 4450038 Screw 13 8303497 Vent, Control Panel 6 Illus. No. Part No.
PAGE 7
OPTIONAL PARTS For Models: IBS550PWW00, IBS550PWS00 (White) (Stainless) Illus. No. Part No. DESCRIPTION PAINT, TOUCH−UP (1/2oz.) 72017 White 261869 Cord Brown 72032 Black PAINT, SPRAY 350930 White 261900 Citrine White 830864 Black ADHESIVE 591014 Adhesive Loctite (1/3 oz.) 482338 Sealer, Silastic (3 oz.
