HPAV for z/OS user guide for the XP128/XP1024/XP12000/XP10000 45

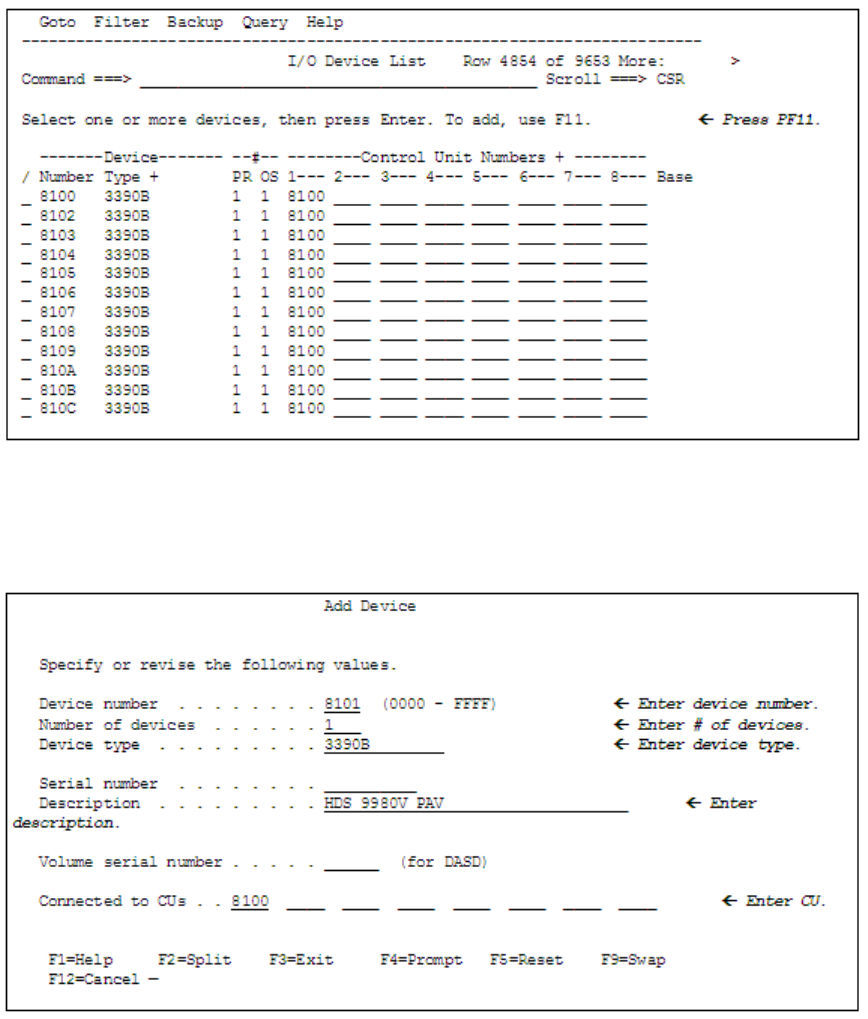

Figure 30 I/O Device List
9. From the Add Device window, enter the following: Device number, Number of devices, Device type:
3390B for an HPAV base device, or 3390A for an HPAV alias device (see the following example).
Figure 31 Add Device
10. After the device is defined using the Add Device window, add this device to a specific
Processor/System-ID combination. ”Device / Processor Definition Panel - Selecting the Processor ID” on
page 46, ”Define Device / Processor Panel” on page 46 and ”Selecting the OS Configuration” on
page 51 show the HCD windows used to select the Processor and System-ID to which this device will be
added.
