HPAV for z/OS user guide for the XP128/XP1024/XP12000/XP10000 39
A Using HCD to Define and View
XP1024/XP128/XP12000/XP10000 LCUs and
Compatible PAV Devices
The XP1024/XP128/XP12000/XP10000 logical control units (LCUs) and PAV base and alias devices are
defined to MVS/ESA and OS/390 systems using the configuration dialog windows of the Hardware
Configuration Definition (HCD) Program. The HCD Program can also display the WLMPAV device
parameter for existing Compatible PAV devices.
This section provides sample instructions for:
• Defining an XP1024/XP12000/XP10000 LCU and base and alias Compatible PAV devices (see
page 39)
• Displaying the WLMPAV device parameters (see page 48)
Using HCD to Define an XP1024/XP12000/XP10000 LCU and the Base and Alias
Devices
The following example shows the sequence of HCD windows used in defining an
XP1024/XP12000/XP10000 LCU and a range of base and alias devices. Before you can define the LCU,
the channel paths must already be defined.
To define an XP1024/XP12000/XP10000 LCU and the base and alias address range that it will support,
use the following example for HCD:
1. From an ISPF/PDF primary options menu, select the HCD option to display the Basic HCD window. On
this window, verify the name of the IODF or IODF.WORK I/O definition file to be used.
2. From the Basic HCD window, select option 1 to display the Define, Modify, or View Configuration Data
window (see the following example).

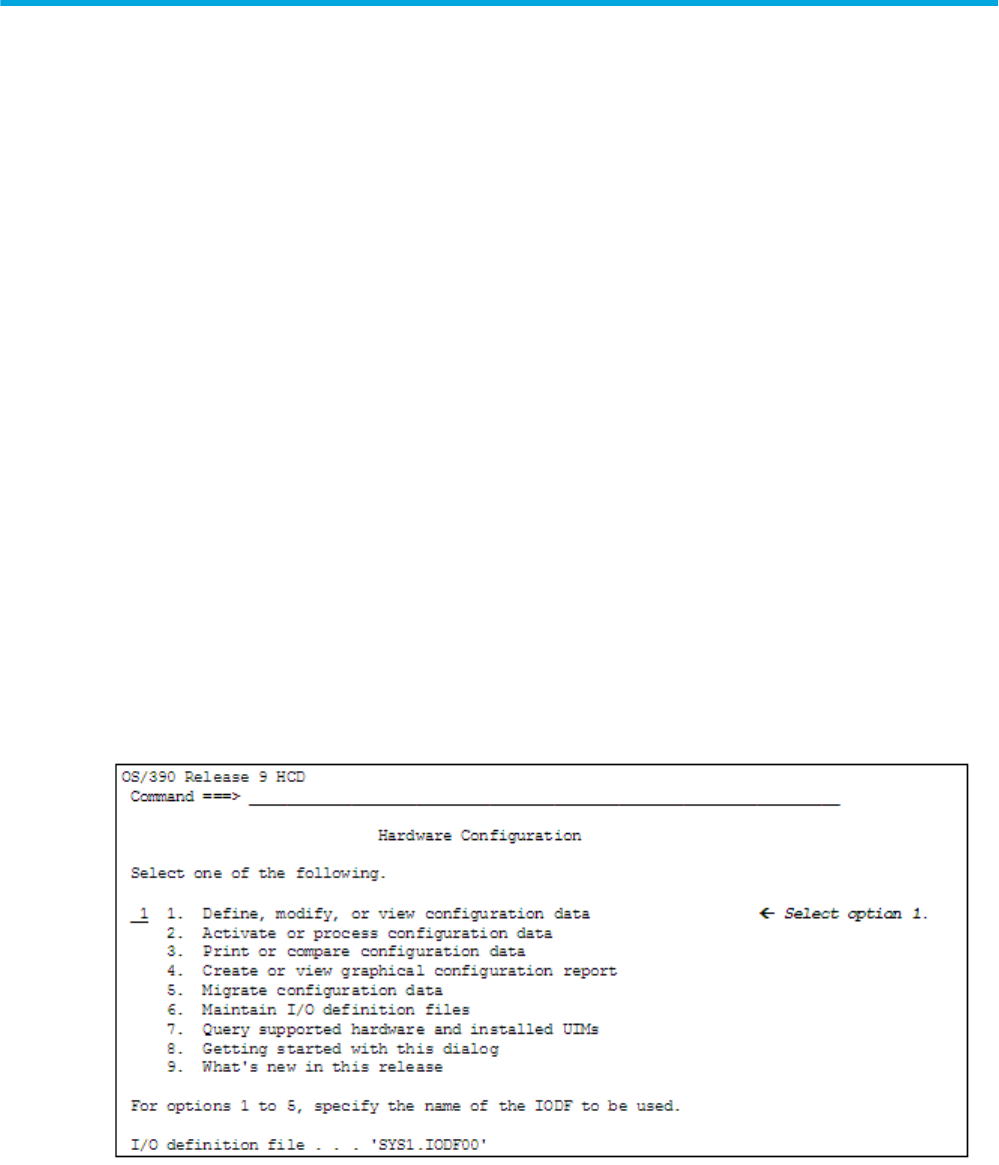

Figure 23 Basic HCD Panel
3. On the Define, Modify, or View Configuration Data panel, select option 4 to display the Add Control
Unit panel (see the following example).
