152 Using an XP12000/XP10000/SVS200 with an EVA3000/5000 external storage
NOTE: You must select external storage LUs through the presenting controller. Failure to do so results in
new external LDEVs being placed in a blockade state shortly after a host attempts to access them.

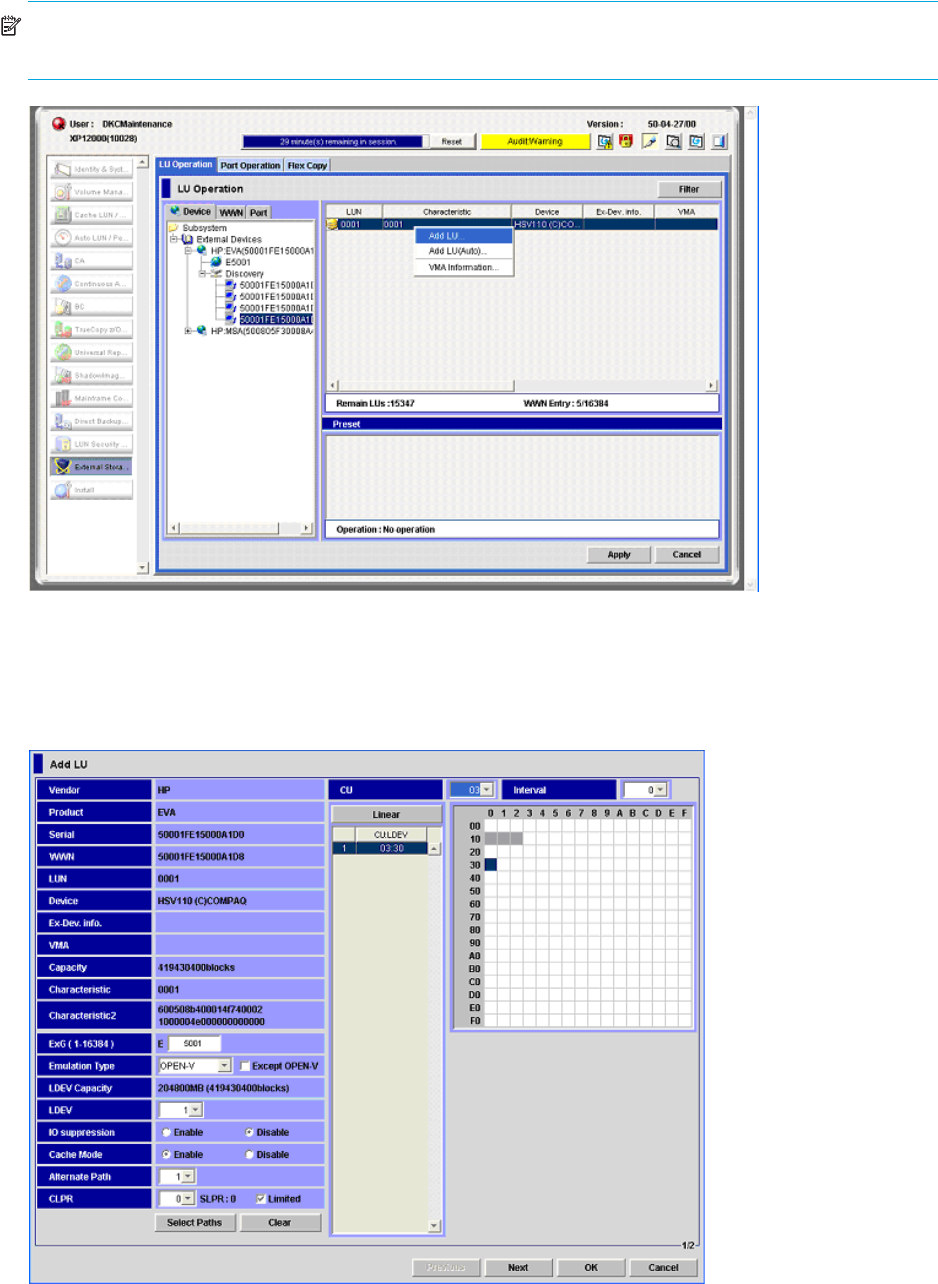

Figure 80 Selecting EVA LUs
After you select an external logical unit (LU), the Add LU pane appears. At this point, you can configure
each individual external LU by choosing options such as the emulation type, the number of LDEVs (CVS is
used), and the LU’s unique LDEV identifiers within the XP12000/XP10000/SVS200. Figure 81 illustrates
this step.
Figure 81 XP External LDEV definition
After this step is complete and external storage LDEVs are created, these LDEVs can be presented to any
XP12000/XP10000/SVS200-attached host for immediate use. For more information about assigning
XP12000/XP10000/SVS200 LDEVs to an XP12000/XP10000/SVS200-attached host, see the
