Table 21 Drive status
DefinitionStatus
Drive has a tape inserted, but there is no activityIDLE
Drive is readingRD
Drive is forwardingFWD
Drive is writingWR
Drive is loading a tapeLD
Drive is unloading a tapeULD
Drive is cleaningCLN
Drive is rewindingRWD
Drive is seekingSEEK
Performing a tape move or tape exchange operationMOV
Drive is erasing a tapeERASE
Drive is calibratingCAL
Performing a testTEST
Performing a firmware upgrade operationUPGR
DecryptingDCR
EncryptingENC
Operator control panel buttons
The four operator control panel buttons, described in Figure 97 (page 102), let you traverse the
OCP menu structure and enter information.

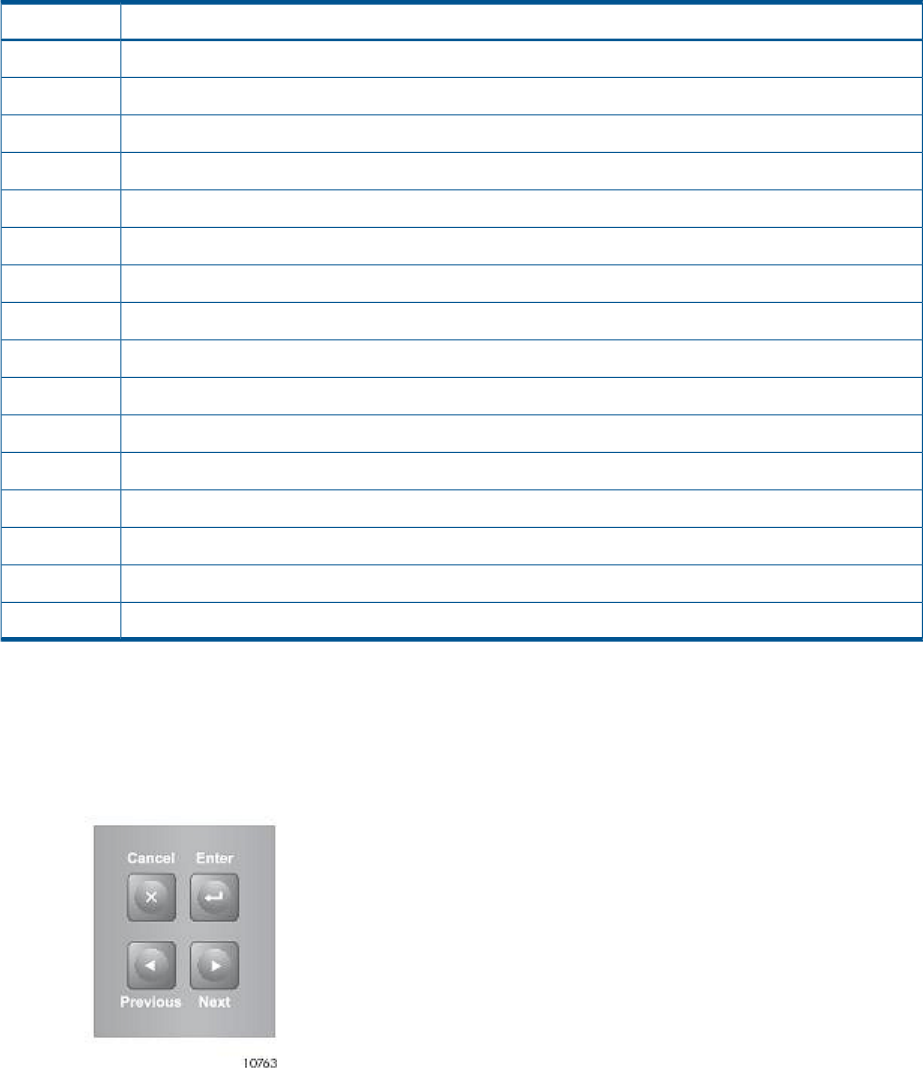

Figure 97 Operator control panel buttons
Cancels the current menu option, returns to the previous menu level, or returns to the Home screen.Cancel
Enters the menu or selects the option displayed on the LCD screen.Enter
Selects the previous item or value in the currently displayed menu.Previous
Selects the next item or value in the currently displayed menu.Next
Understanding the menu structure
The OCP options are organized under five menus: Unlock Mailslot, Status/Information,
Configuration, Operations, and Support.
