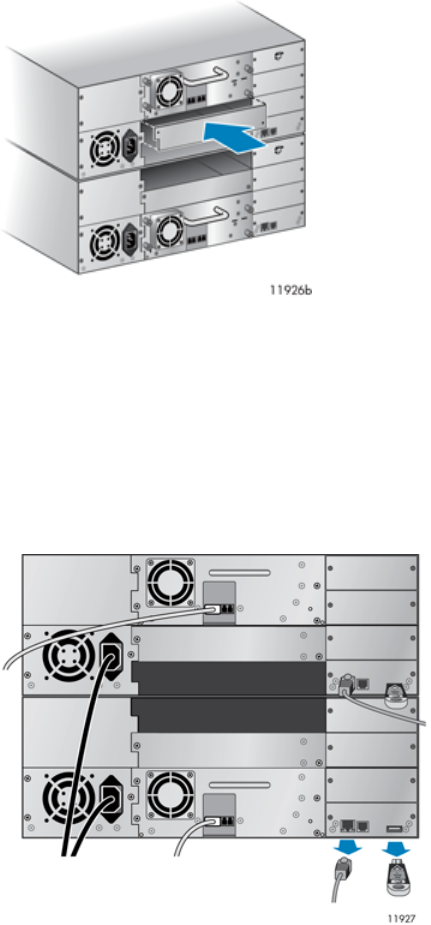

Figure 20 Installing covers on unused drive bays
.
Removing the USB device and Ethernet cable from the lower
Library
Remove the Ethernet cable and USB device from the lower Library as shown in Figure 21, page 37.
When the Library Extender is installed, only the Ethernet and USB ports in the upper Library are active.
Figure 21 Removing the USB device and Ethernet cable from the lower Library
.
Extending the pull-out tab
On the upper Library, fully extend the pull-out tab containing product information.
If the tab has a plastic extension on both sides, clip the left extension, as shown in Figure 22, page 38,
without removing the product information. Leave the tab pulled out while installing the Extender.
