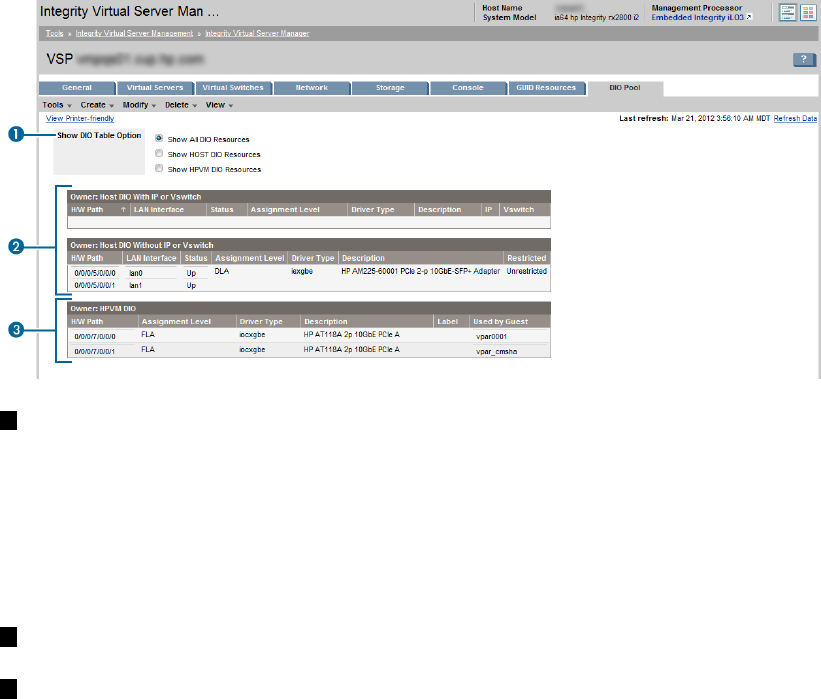

Figure 33 DIO Pool tab
1
The SHOW DIO Table Option lists the options to view the DIOs in the host or HPVM. When
you select an option, its corresponding table is displayed. The following options are listed:
• Show All DIO Resources displays both the host DIO tables and the HPVM DIO
table.
• Show Host DIO Resources displays only the host DIO table. There are two host DIO
tables, one with IP and Vswitch and the other without IP and Vswitch.
• Show HPVM DIO Resources displays only the HPVM DIO table.
2
Host DIO tables. One lists DIOs with IP and as PNIC for Vswitch. For more information about
the parameters, see “Column descriptions” (page 54).
3
The HPVM DIO table include parameters for the Integrity VM (vPar) DIO. For more information
about the parameters, see “Column descriptions” (page 54)
Host DIO table
When you select the Show HOST DIO Resources option, the host DIO tables are displayed.
There are two host DIO tables, one for DIOs with IP or as NPIC for Vswitch. The other one contains
the left DIOs.
In the first table, the host DIO with IP or Vswitch has no check box. These host DIOs cannot be
used to perform normal DIO operations, such as “Change Owner” or “Change Restricted Status”.
This is because they are used by the host as sitelan or as PNIC for Vswitch. The second table lists
DIOs without IP or Vswitch. This table has a check box. You can use the DIOs in this table for
normal DIO operations.
The host DIO table lists the details of the DIOs owned by the host. The following DIO details are
displayed:
• H/W path
• LAN interface
• Status
• Assignment level
• Driver type
• A brief description of the DIO
• Whether the DIO is restricted
• Whether the DIO has IP and is used as PNIC for Vswitch
