HP StorageWorks EML E-Series Ultrium 1840 tape drive moduleupgrade or replacement service guide (AH682-96001, October 2007)

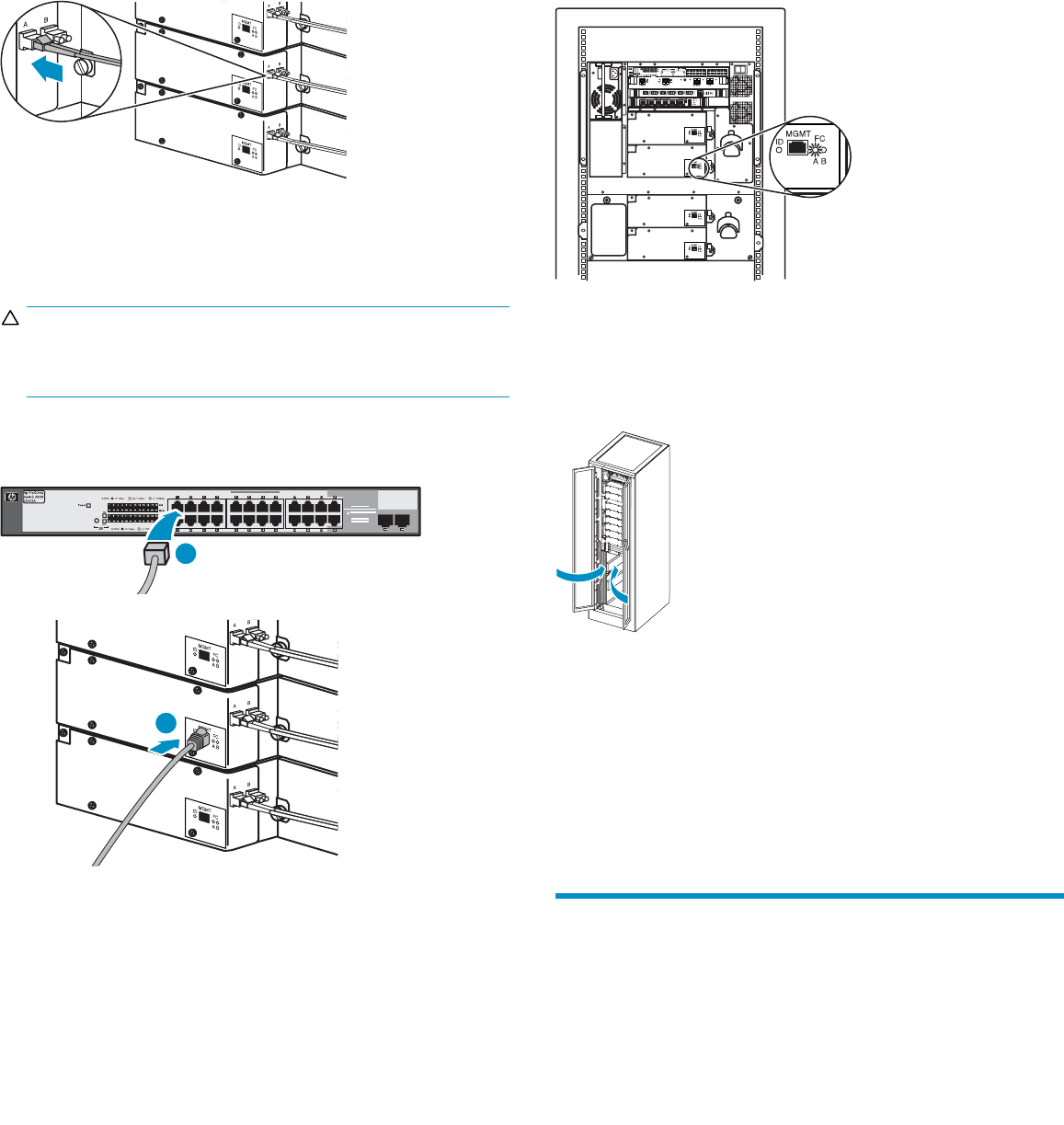

7.4 Connect the F
ibre Channel cable
11552
Reconnect the end of the FC cable that you disconnected from the old
tape drive to the port A FC connector on the new tape drive. The FC
cable s hould click into place. Verify that the other end of the FC cable
is connected to its corresponding port on the SAN.
CAUTION:
To avoid damaging FC cables, do not pinch or bend the cables
sharper than a 5 cm (2 inch) diameter.
7.5 Connect the Ethernet cable
11559
1
2
1) Connect the end of the Ethernet cable that you disconnected from
the old tape drive to the MGMT port of the new tape drive. 2) Verify
that the other end of the Ethernet cable is connected to the internal
network switch installed in the library. Do not connect the MGMT port
or internal network switch to the public or site LAN.
7.6 Verify connectivity
11558
26
Verify that t
he Fibre Channel port A LED on the new tape drive is green
when connect
ed to a sw itch and linked.
7. 7 C l o s e t h e d o o r s
10545
Close the back doors of the library.
7. 8 U p g r a d e t h e d r i v e firmwar e
Ensure that the tape drive has the latest firmware for correct operation.
If necessary, upgrade the drive firmware using the Command View
TL firmware upgrade wizard or the Interface Manager’s Command
Line Interface. See the HP StorageWorks Interface Ma nager and
Command View TL User’s Guide for detailed procedures on upgrading
drive firmware.
Getting help
• HP Product information:
nl
http:/
/www.hp.com/go/storage
• HP tec
hnical support and phone numbers:
nl
http://www.hp.com/support
• HP StorageWorks Library and Tape Tools (L&TT) diagnostic software:
nl
http://www.hp.com/support/tapetools
• Interface Manager and HP StorageWorks Command View TL:
nl
http://www.hp.com/support/cvtl
• HP documentation:
nl
http://www.hp.com/support/manuals
Page 12
