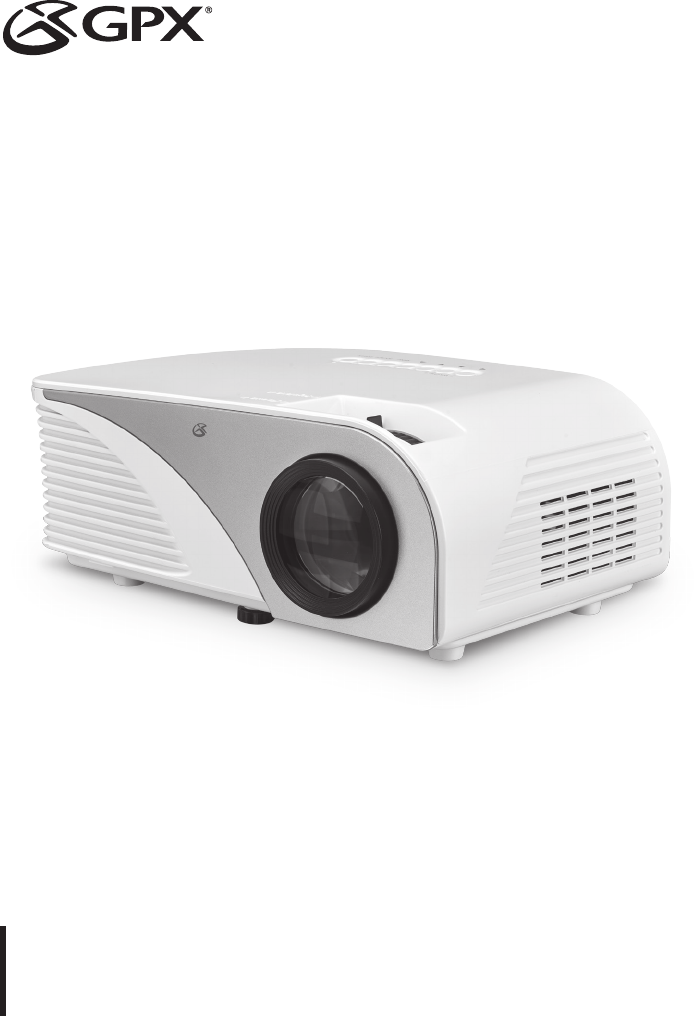

Mini Projector User’s Guide for Model PJ308W v1993-01 For the most up-to-date version of this User’s Guide, go to www.gpx.
Safety Instructions & Warnings Important Safety Instructions • • • • • • • • • • • • • • Read these Instructions. Keep these Instructions. Heed all Warnings. Follow all instructions. Do not use this apparatus near water. Clean only with a dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
• If the air vents become clogged or dirty, use a vacuum or air compressor and nozzle to clean. Do not use canned air, as the gas may leave a residue inside the enclosure. • CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. • Mains plug is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the mains plug should be disconnected from the mains socket outlet completely.
Table of Contents Overview �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 5 Features Includes Projector ���������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 6 Controls & Features Settings Menu Remote �����������������������������������������
Overview Features • Supports 480p, 720p, 1080i, 1080p • Native Resolution: 800 x 480 Includes • Remote control: requires 2 AAA batteries (not included) • LED bulb with 20,000 hour life • 3.
Projector Controls & Features 1 2 3 4 5 6 8 9 7 11 10 USB HDMI IN AUDIO OUT 12 AV IN VGA IN 13 6
1. Focus Adjustment 7. HDMI Input 2. Keystone Adjustment 8. Audio Output 3. Power Indicator Light 9. 3.5mm AV Input 4. Controls 10. Remote Sensor Press Volume to adjust the volume level. for menu navigation. Press Press Menu to access menus and settings. Press Source to select media source (AV In, HDMI, USB, VGA In). 5. Projector Lens Aim here when using the remote. 11. USB Port 12. VGA / PC Input 13. DC Power Port 6. Height Adjustment Peg Settings Menu Press MENU to enter Settings.
Remote Functions Power Press to power ON or OFF. Zoom Press to zoom display image in or out. Zoom Play/Pause Press to play or pause an individual chapter or track. Mute Press to mute volume. Previous / Next Press to skip between chapters or tracks. Back / Fwd Press to search through an individual chapter or track. Ratio Press to switch display ratio (4:3 and 16:9). Arrows/OK Press to navigate and confirm selections in Settings and other menus. Flip Press to flip display image 180°.
Projector Setup Power Plug the AC/DC power adapter (included) into a standard wall outlet and the DC power input on the rear of the unit. After connecting power, please allow approximately 5 seconds to pass before powering the unit ON. USB HDMI IN AUDIO OUT AV IN VGA IN Projector Placement For best results, place the projector in a dark room or other dimly lit area. Use the unit with a dedicated projector screen for best picture resolution.
Projector Setup Height Adjustment Rotate peg to adjust height (peg not to scale). Image Adjustment Focus Adjustment Keystone Adjustment Increase or reduce to image size to sharpen image. Adjust image corners to reduce image distortion.
Note: The following information is intended as a guide to help you determine which type of use may best suit your application. Instructions for connecting the projector to other devices follows on pages 13-15. Basic Setup For use with an external media source using the projector's built-in speakers. Audio/Video cable from media source to projector Setup with External Speakers For use with an external media source and speakers.
Connecting to Other Devices HDMI HDMI offers superior sound and picture quality, and is the easiest way to play media from a computer, Blu-Ray player, or other device with an HDMI output. Requires an HDMI cable (not included) and a device with an HDMI output. 1. Using an HDMI cable, connect the HDMI input on the projector to the HDMI output on your media player. 2. Set the projector's Source to HDMI and use the controls on the connected device to select and play media.
Connecting to Other Devices Audio/Video Input Requires a 3.5mm to 3 x RCA audio/video adapter (included) and a RCA audio/video cable (not included). 1. Connect the 3.5mm to 3 x RCA audio/video adapter to the AV input on the unit. 2. Connect the 3.5mm to 3 x RCA audio/video adapter to an RCA audio/video cable (not included), then connect that RCA audio/video cable to the RCA stereo audio outputs and composite video output on the media player. 3.
Connecting to Other Devices Computer Video (VGA) Note: VGA connections do not support audio. You will need to use the computer's speakers to hear audio. Requires a VGA cable (not included) and a desktop PC or laptop with a VGA output. 1. Using a VGA cable, connect the VGA input on the projector to the VGA output on your computer. 2. Set the projector's Source to PC-RGB and use the controls on the computer to select and play media.
External Audio Note: Speakers must have their own power supply. Requires a 3.5 mm to RCA stereo cable (not included). 1. Using a 3.5 mm to RCA stereo cable, connect the Audio Out on the projector to external powered speakers. 2. The projector will automatically detect the connection and send audio signal to the speakers. Audio Out USB HDMI IN AUDIO OUT AV IN VGA IN Connect to speaker Audio Left Channel - White Audio Right Channel - Red USB Storage Device Supports USB drives up to 32GB.
Customer Support Contact Information Website: www.gpx.com Email Support: prodinfo@dpiinc.com Email Parts: partsinfo@dpiinc.com Phone Support: 1-888-999-4215 Made Green Warranty For Warranty Information and the most up-to-date version of this User’s Guide, go to: www.gpx.com International Support To download this User’s Guide in English, Spanish, and French, or to get answers to frequently asked questions, visit the support section at: www.gpx.
