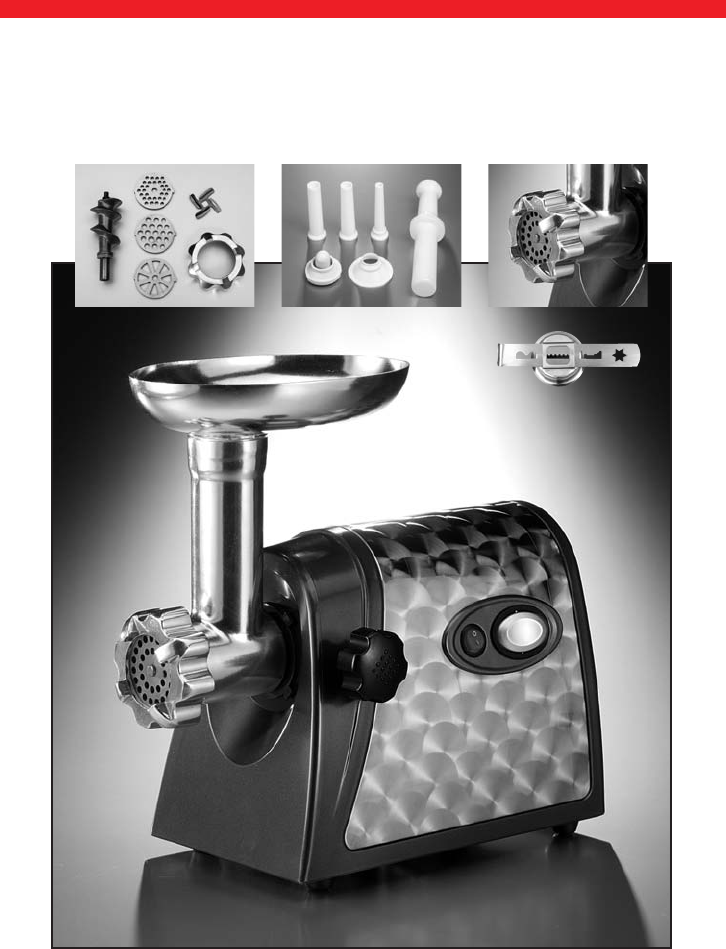

41400_Manual_Fleischwolf_Juli2009.qxp 19.11.2009 09:23 Seite 1 GASTROBACK ® Bedienungsanleitung DESIGN FLEISCHWOLF Art.-Nr. 41400 Bedienungsanleitung vor Gebrauch unbedingt lesen! Modell- und Zubehöränderungen vorbehalten! Read all provided instructions before first usage! Model and attachments are subject to change Bewahren Sie diese Anleitung zur weiteren V erwendung gut auf. Save the instructions for fur ther reference.
41400_Manual_Fleischwolf_Juli2009.qxp 19.11.2009 09:23 Seite 19 Directions for Use ! Carefully read all provided instructions before you star t running the appliance and pay regard to the war nings mentioned in these instructions.
41400_Manual_Fleischwolf_Juli2009.qxp 19.11.2009 09:23 Seite 20 Directions for Use Congratulations on the purchase of your new Gastroback Mincer and hope that it will soon convince you of its many advantages. You will soon find that the Gastroback Mincer is an exceptionally efficient and robust appliance for processing meat and vegetables. Safety and Operating Instructions Gastroback recommends safety first We at Gastroback are ver y safety conscious.
1400_Manual_Fleischwolf_Juli2009.qxp 19.11.2009 09:23 Seite 21 • Never try to take the appliance to pieces or open it. • Never leave children unsupervised when the appliance or units of the appliance are in reach. • Never let children play with the appliance or units of the appliance. Children and invalid people have to be super vised using the appliance. • Never leave the mincer unattended, when connected to the power supply. Keep the appliance well out of reach of children.
41400_Manual_Fleischwolf_Juli2009.qxp 19.11.2009 09:23 Seite 22 • Only install the appliance in proper for m secure grounding receptacle with adequate electric power supply (alternating current; 230/240 V, 50 Hz) and ground fault circuit interrupter. The maximum power consumption of the appliance i s 800 Watt. You should also install a fuse with a release current of maximum 30mA. If necessary ask your electrician for help. • Never pull, rip, bend, clamp, squish or knot the line cord.
41400_Manual_Fleischwolf_Juli2009.qxp 19.11.2009 09:23 Seite 23 • Never push the food into the feeding funnel with your fingers. Always use the feedstick for this purpose! The mincer can not mince hard or stingily ingredients (for example: bones, nuts, ginger). If you use hard ingredients like onions or carrots, you have to steam them before adding them to the meet otherwise they can block the motor.
41400_Manual_Fleischwolf_Juli2009.qxp 19.11.2009 09:23 Seite 24 2. Loosen the screw plug on the left side of the mincer tur ning it anticlockwise. Firmly secure the worm housing in the opening for the drive shaft. The opening of the wor m housing should be upright. Hold the worm housing with one hand and insert the screw plug into the side hole of the motor block. T urn the screw clockwise (see. fig. 1) for tightening. Do not use force and be careful to not overwind the screw thread.
41400_Manual_Fleischwolf_Juli2009.qxp 19.11.2009 09:24 Seite 25 Operating - Mincing meat The mincer operates absolutely dependently and clean. If any problems should occur while operating act upon instructions ´Trouble shooting`. WARNING: For the case that liquid runs over the mincer while operating tur n the mincer OFF immediately and pull the plug. Clean and dr y the appliance according to the instructions ´Care and cleaning`.
41400_Manual_Fleischwolf_Juli2009.qxp 19.11.2009 09:24 Seite 26 out the worm housing eventhough there is still meat in the feed funnel tur n the mincer OFF and work according to the instructions ´Trouble shooting guide`. 6. As soon as the last bit is minced tur n the appliance OFF and pull the plug. 7. Clean and disassemble the appliance right after use and make sure that no leftover food desiccate on the appliance. Work according to the instructions ´Care and cleaning`.
41400_Manual_Fleischwolf_Juli2009.qxp 19.11.2009 09:24 Seite 27 crossed-blade knife with the mincer plate a. Assemble the worm housing in the opening of the driveshaft. Place the worm inside the worm housing (operate according to the instructions ´Assembling` the appliance. see fig. 1 and 2). b. Place the chopper attachment A on the axis of the wor m. The slim end has to face the front (see fig. 7). T urn the chopper attachment a little bit while pushing it into the wor m housing. c.
41400_Manual_Fleischwolf_Juli2009.qxp 19.11.2009 09:24 Seite 28 Disassembling WARNING: To avoid injury and damages of the appliance turn the applianceOFF and then wait for approx. 6 seconds to be certain that the motor is no longer running. Always pull the plug before you star t disassembling or cleaning the appliance. 1. Switch off the mincer and disconnect the power supply cable from the mains. Check that the motor has completely stopped. 2. Detach the worm housing from the motor block. 3.
41400_Manual_Fleischwolf_Juli2009.qxp 19.11.2009 09:24 Seite 29 ating turn OFF the appliance immediately, pull the plug and dr y the appliance with a clean cloth. 8. The motor block must only be wiped clean with a moist cloth. Do not clean the motor block under flowing water, nor should it be immersed in water! Do not use alcohol, benzine, etc.! 9. Grease the mincer plate and knife with salad oil to prevent air corrosion. Storage Always clean the appliance before storing.
41400_Manual_Fleischwolf_Juli2009.qxp 19.11.2009 09:24 Seite 30 Possible problem Easy solution The mincer blocks up permanently while operating. • To ensure that the mincer does not seize, never operate it under excessive pressure. Operate in a slow and constant pace. Do not try to rush the procedure by pushing down the meat with force. • For mincing hard ingredients really fine start with the mincer plate with the bigger holes. Mincing the second time use the finer mincer plate.
41400_Manual_Fleischwolf_Juli2009.qxp 19.11.2009 09:24 Seite 31 Waste disposal The appliance has to be deposed by the definition of the regional waste disposal of electricalscrap. If necessary get information of the regional waste management enterprise. Warranty We guarantee that all our products are free of defects at the time of purchase.
41400_Manual_Fleischwolf_Juli2009.qxp 19.11.2009 09:24 Seite 32 GASTROBACK GmbH Gewerbestraße 20 • D-21279 Hollenstedt/Germany Telefon: +49 (0)4165/2225-0 • Fax: +49 (0)4165/2225-29 www.gastroback.de • info@gastroback.
