3-13MVX 44 / 48 / 84 / 88 VGA Matrix Switchers • Operation

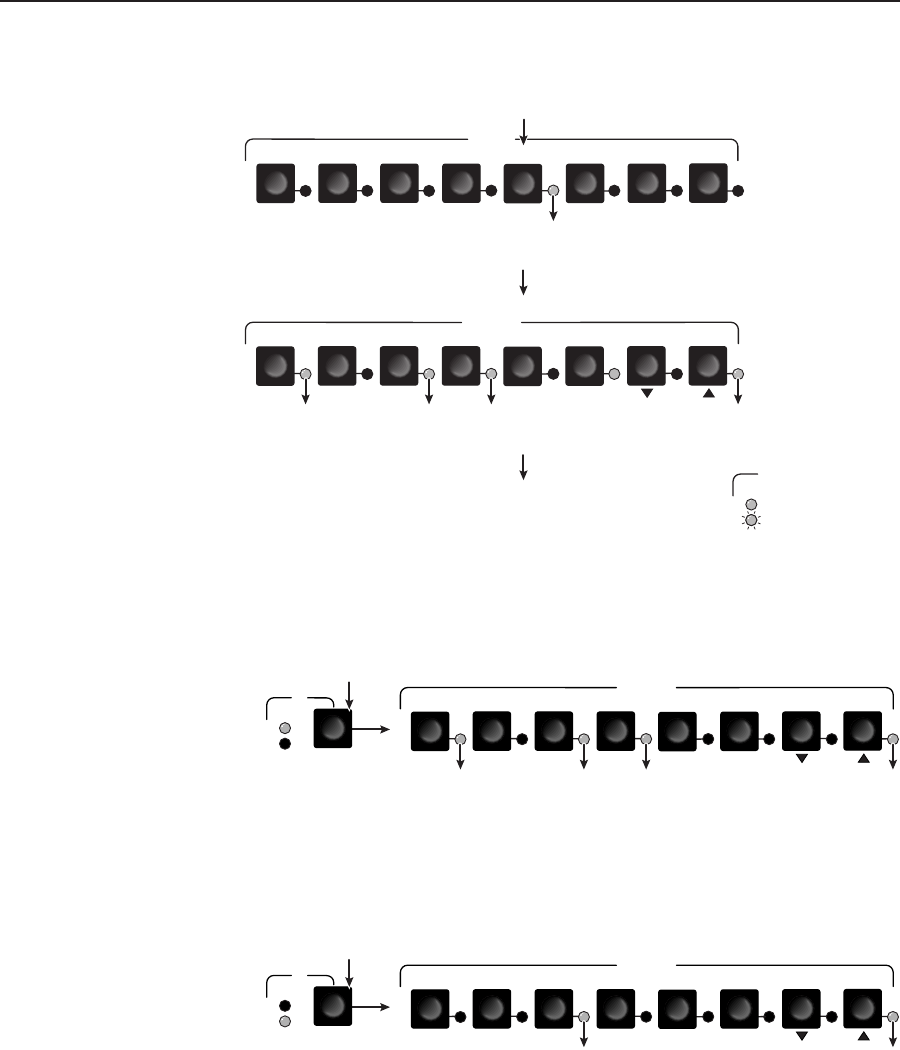

2. Press and release the Input 5 button (figure 3-19).
2
7
6
5
2 4
1
INPUTS
OUTPUTS
8
3
1
8
6
5
4
3
7
I/O
AUD
VID
+dB
-dB
Press and release the Input 5 button.
The Input 5 LED lights to
indicate that input 5 is selected.
The Output 1, Output 3, Output 4, and Output 8 LEDs light to indicate the
video ties created in examples 1, 2, and 3.
The audio LED blinks to indicate that for at least one tie audio is
routed from a different source or not tied at all (audio breakaway).
Figure 3-19 — Select an input
3. Press and release the I/O button (figure 3-20).
2
OUTPUTS
1
8
6
5
4
3
7
I/O
AUD
VID
+dB
-dB
The Output 1, Output 3, Output 4, and Output 8 LEDs light to indicate the video
ties created in example 1 and 2.
Press the button
to deselect audio.
The video LED lights
when video is selected.
The audio LED is off
when audio is deselected.
Figure 3-20 — Deselect audio to view video only
4. Press and release the I/O button (figure 3-21).
2
OUTPUTS
1
8
6
5
4
3
7
I/O
AUD
VID
+dB
-dB
The Output 3 and Output 8 LEDs light to indicate the audio ties created in
example 1. (Example 2 created a video only tie. Example 3 deleted an audio tie.)
Press the button to deselect
video and select audio.
The video LED is off
when video is deselected.
The audio LED lights
when audio is selected.
Figure 3-21 — Deselect video and select audio to view audio only
5. Allow the 5-second input and output button timeout to deselect the input.
