Operation, cont’d
MVX 44 / 48 / 84 / 88 VGA Matrix Switchers • Operation3-10

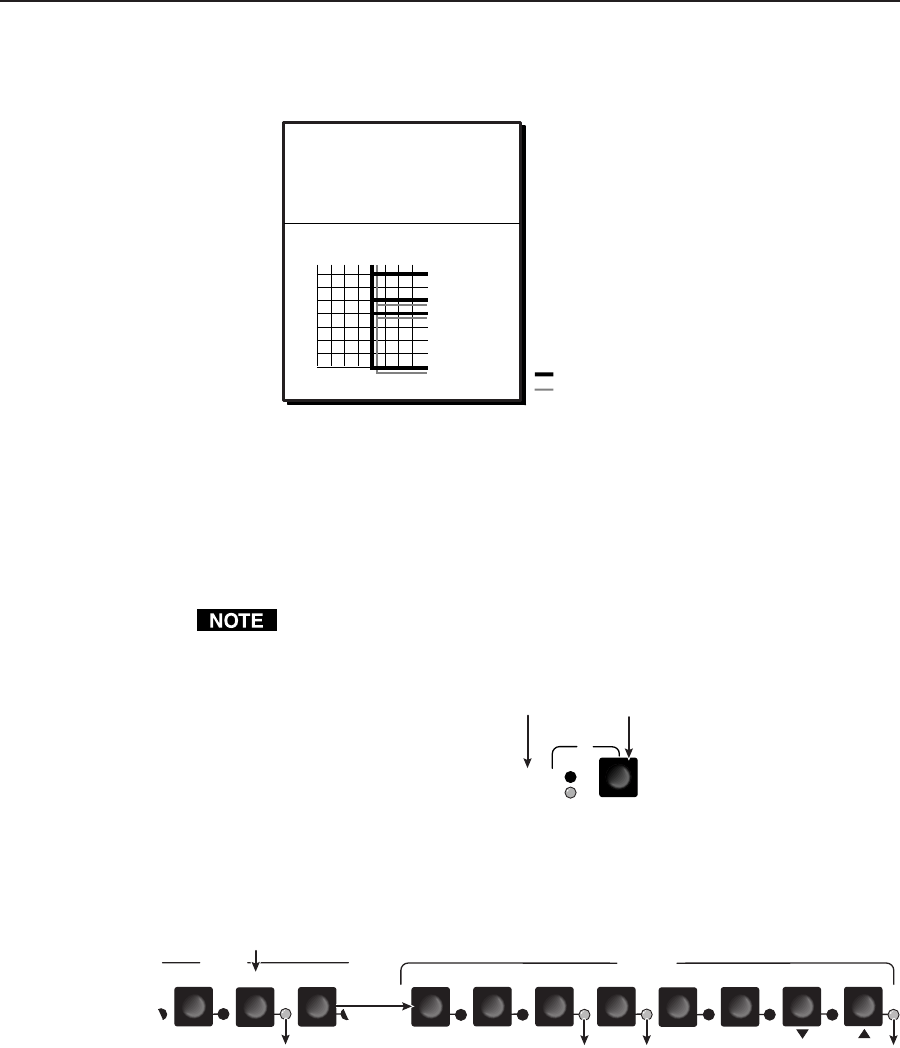

The current configuration (figure 3-12) is now:
• Input 5 video tied to output 1, output 3, output 4, and output 8
Input 5 video tied
to outputs 1, 3, 4, and 8.
Input 5 audio tied
to outputs 3, 4, and 8.
Input
Output
1
3
4
8
5
Video
Audio
Figure 3-12 — Example 2 configuration
Example 3: Remove a tie from a set of ties
The following steps show an example in which an existing tie is removed from the
current configuration. The example shows the front panel indications that result
from your actions.
This example assumes that you have performed example 1 and example 2.
1. Select audio only for the tie (figure 3-13).
I/O
AUD
VID
Press the button to cycle
through the selections.
The video LED is off when video is deselected.
The audio LED lights when audio is selected.
Figure 3-13 — Select audio only
2. Press and release the Input 5 button (figure 3-14).
2
6
5
4
INPUTS
OUTPUTS
1
8
6
5
4
3
7
Press and release the Input 5 button.
The Input 5 LED lights to
indicate that input 5 is selected.
The Output 3, Output 4, and Output 8 LEDs light to indicate the ties created in
example 1.
Figure 3-14 — Select an input
