Everlight Electronics Co., Ltd. http://www.everlight.com Rev.2 Page: 1 of 10

Device No. : DSE-0001426 Prepared date:07-May-2009 Prepared by: Huang yongxin

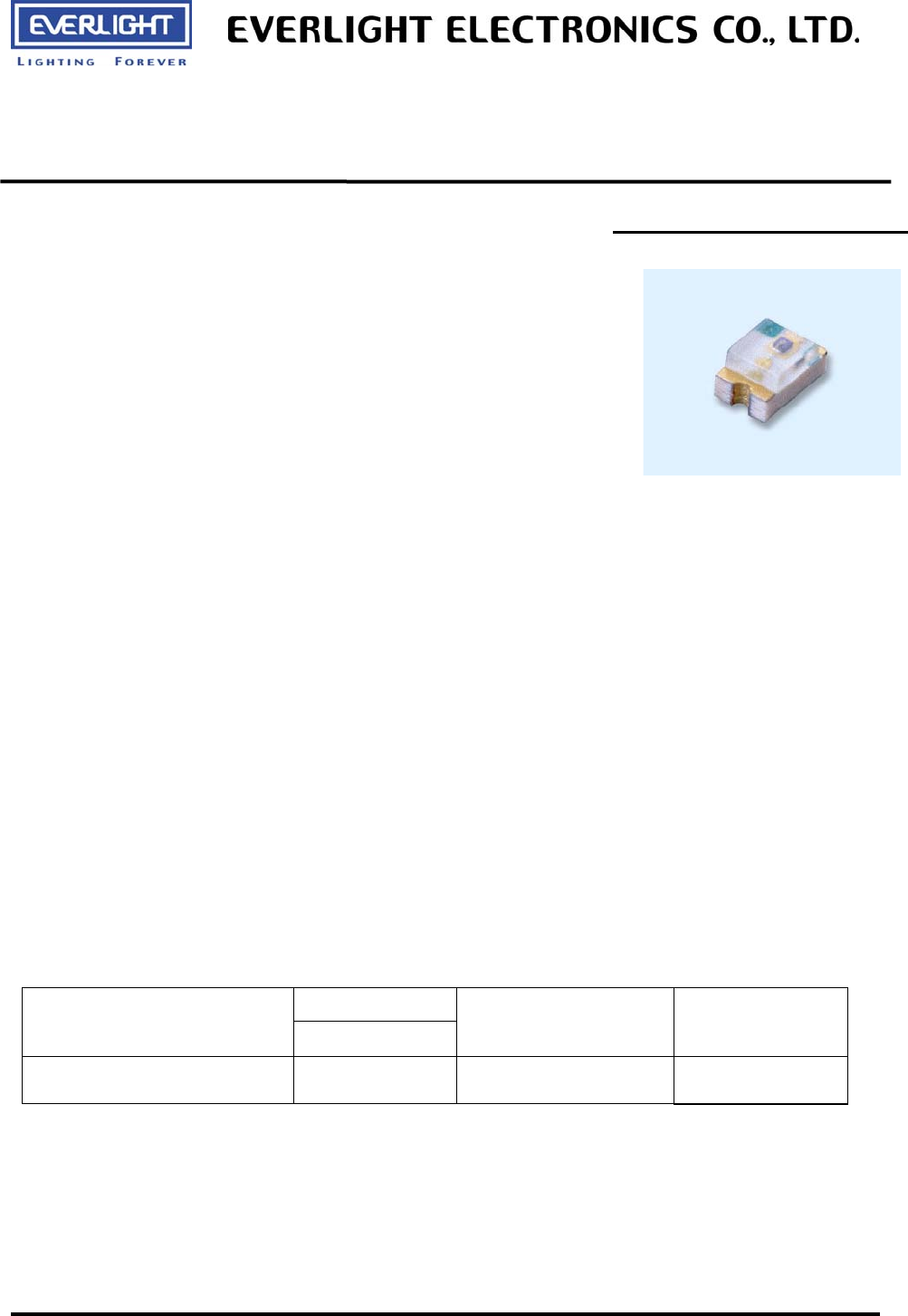

Technical Data Sheet

0805 Package Chip LED(1.0mm Height)

17-21/G6C-AP1Q1B/3T

Features

․Package in 8mm tape on 7〞diameter reel.

․Compatible with automatic placement equipment.

․Compatible with infrared and vapor phase reflow

solder process.

․Mono-color type.

․Pb-free.

․The product itself will remain with in RoHS compliant version.

Descriptions

․The 17-21 SMD LED is much smaller than lead

frame type components, thus enable smaller board

size, higher packing density, reduced storage space

and finally smaller equipment to be obtained.

․Besides, lightweight makes them ideal for

miniature applications. etc.

Applications

․Backlighting in dashboard and switch.

․Telecommunication: indicator and backlighting in

telephone and fax.

․Flat backlight for LCD, switch and symbol.

․General use.

Device Selection Guide

Chip

Part No.

Material

Emitted Color Resin Color

17-21/G6C-AP1Q1B/3T AlGaInP Brilliant Yellow Green Water Clear

Summary of content (10 pages)

PAGE 1
Technical Data Sheet 0805 Package Chip LED(1.0mm Height) 17-21/G6C-AP1Q1B/3T Features ․Package in 8mm tape on 7〞diameter reel. ․Compatible with automatic placement equipment. ․Compatible with infrared and vapor phase reflow solder process. ․Mono-color type. ․Pb-free. ․The product itself will remain with in RoHS compliant version.
PAGE 2
17-21/G6C-AP1Q1B/3T Package Outline Dimensions - 1.05 + Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm Everlight Electronics Co., Ltd. Device No. : DSE-0001426 http://www.everlight.com Prepared date:07-May -2009 Rev.
PAGE 3
17-21/G6C-AP1Q1B/3T Absolute Maximum Ratings (Ta=25℃) Parameter Symbol Rating Unit Reverse Voltage VR 5 V Forward Current IF 25 mA IFP 60 mA Pd 60 mW ESD 2000 V Operating Temperature Topr -40 ~ +85 ℃ Storage Temperature Tstg -40 ~ +90 ℃ Soldering Temperature Tsol Peak Forward Current (Duty 1/10 @1KHz) Power Dissipation ElectrostaticDischarge (HBM) Reflow Soldering: 260 ℃ for 10 sec Hand Soldering: 350℃ for 3 sec Electro-Optical Characteristics (Ta=25℃) Parameter Symbol Mi
PAGE 4
17-21/G6C-AP1Q1B/3T Bin Range Of Dom. Wavelength Groups A Bin Min Max C16 569.5 571.5 C17 571.5 573.5 C18 573.5 575.5 C19 575.5 577.5 Unit Condition nm IF=20mA Unit Condition mcd IF=20mA Unit Condition nm IF=20mA Bin Range Of Luminous Intensity Bin Min Max P1 45.0 57.0 P2 57.0 72.0 Q1 72.0 90.0 Bin Range Of Forward Voltage Groups Bin Min Max 0 1.75 1.95 1 1.95 2.15 2 2.15 2.35 B Notes: 1.Tolerance of Luminous Intensity ±11% 2.
PAGE 5
17-21/G6C-AP1Q1B/3T Typical Electro-Optical Characteristics Curves Ta=25°C Forward Current I (mA) Relative luminous intensity ( % ) Ta=25°C Wavelength λp(nm) Forward Voltage VF (V) Relative luminous intensity ( %) Relative luminous intensity ( % ) Ta=25°C Ambient Temperature Ta (°C ) Forward Current I (mA) Forward Current I (mA) Ta=25°C Ambient Temperature Ta (°C ) Everlight Electronics Co., Ltd. Device No. : DSE-0001426 http://www.everlight.com Prepared date:07-May -2009 Rev.
PAGE 6
17-21/G6C-AP1Q1B/3T Label explanation CAT: Luminous Intensity (mcd) HUE: Dom. Wavelength (nm) REF: Forward Voltage (V) Reel Dimensions Note: The tolerances unless mentioned is ±0.1mm,Unit = mm Everlight Electronics Co., Ltd. Device No. : DSE-0001426 http://www.everlight.com Prepared date:07-May -2009 Rev.
PAGE 7
17-21/G6C-AP1Q1B/3T Carrier Tape Dimensions: Loaded quantity 3000 PCS per reel Note: The tolerances unless mentioned is ±0.1mm , Unit = mm Moisture Resistant Packaging Everlight Electronics Co., Ltd. Device No. : DSE-0001426 http://www.everlight.com Prepared date:07-May -2009 Rev.
PAGE 8
17-21/G6C-AP1Q1B/3T Reliability Test Items And Conditions The reliability of products shall be satisfied with items listed below. Confidence level : 90 % LTPD : 10 % Test Sample No. Items Test Condition Hours/Cycles Size Temp. : 260℃±5℃ 1 Reflow Soldering 22 PCS. 6 Min. Min. 5sec. 2 3 4 5 Ac/Re 0/1 Temperature Cycle H : +100℃ 15min ∫ 5 min L : -40℃ 15min 300 Cycles 22 PCS. 0/1 Thermal Shock H : +100℃ 5min ∫ 10 sec L : -10℃ 5min 300 Cycles 22 PCS. 0/1 Temp. : 100℃ 1000 Hrs. 22 PCS. 0/1 Temp.
PAGE 9
17-21/G6C-AP1Q1B/3T Precautions For Use 1. Over-current-proof Customer must apply resistors for protection , otherwise slight voltage shift will cause big current change ( Burn out will happen ). 2. Storage time 2.1 Do not open moisture proof bag before the products are ready to use. 2.2 Before opening the package: The LEDs should be kept at 30℃ or less and 90%RH or less. 2.3 After opening the package: The LED's floor life is 1 year under 30℃ or less and 60% RH or less.
PAGE 10
17-21/G6C-AP1Q1B/3T 4.Soldering Iron Each terminal is to go to the tip of soldering iron temperature less than 350℃ for 3 seconds within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder. 5.Repairing Repair should not be done after the LEDs have been soldered.
