Installation guide

INSTRUCTIONS FOR

Touch Interactive Bracket Kits (Small and Large)

Tools Required for Installation Installation

1. Using the provided #4 x ½” screws and #4 nuts, attach the

touch module base plate to the bracket.

NOTE: Some touch modules will attach to the bracket with

magnets. If the touch module allows attachment using

hardware or magnets, hardware attachment is

recommended.

2. Remove the cover from the touch module. Using the screws

provided with the projection system, attach the touch

module to the touch module base plate.

3. Position the bracket with touch module along the top of the

IDEA Screen or IDEA Panoramic according to the projector

manufacturer’s instructions. Using the two provided #8 x ½”

screws, attach the bracket and touch module to the IDEA

frame with the touch module facing towards the audience.

NOTE: If the projector instructions do not specify a position,

center the bracket relative to the projected image. The lat

vertical surface of the touch interactive bracket should be

lush to the face of the IDEA frame.

4. Follow manufacturer’s instructions for aligning the IR curtain.

Required Hardware - Provided

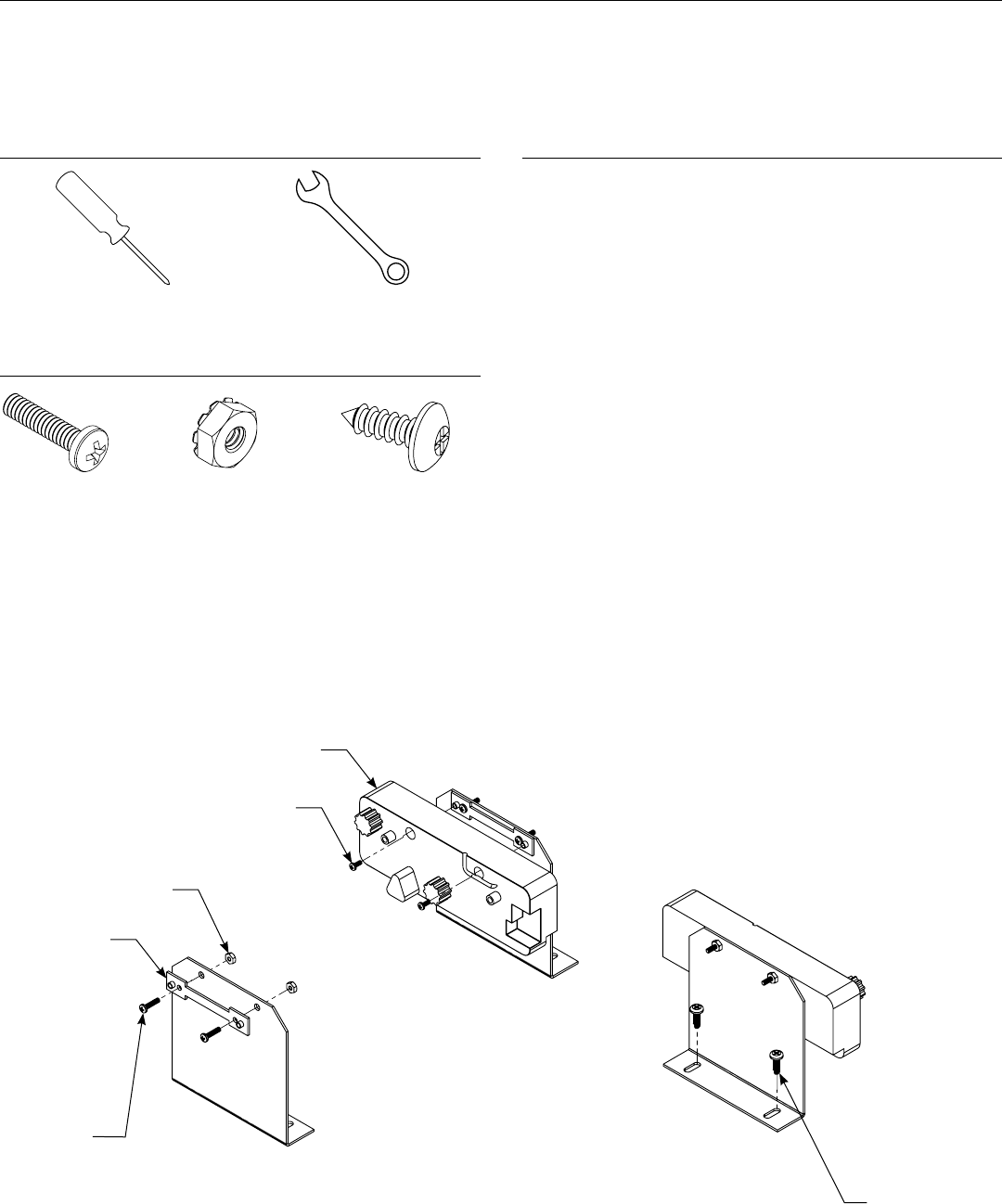

Figure 1

Small Bracket Installation

Phillips Screwdriver

(2) #8 x ½” Screws(2) #4 x ½” Screws (2) #4 Nuts

NOTE: Interactive module terminology may vary from manufacturer to manufacturer.

#8 x ½" Screws

#4 x 1/2”

Screws

#4 Nuts

Screws Supplied with

Touch Module

Base Plate

Touch Module

1/4” Wrench

PAGE 1
INSTRUCTIONS FOR Touch Interactive Bracket Kits (Small and Large) Small Bracket Installation NOTE: Interactive module terminology may vary from manufacturer to manufacturer. Tools Required for Installation Installation 1. Phillips Screwdriver (2) #4 x 1/2” Screws NOTE: Some touch modules will attach to the bracket with magnets. If the touch module allows attachment using hardware or magnets, hardware attachment is recommended.
PAGE 2
Large Bracket Installation NOTE: Interactive module terminology may vary from manufacturer to manufacturer. Tools Required for Installation Installation 1. Phillips Screwdriver (2) M4 x 30mm Screws NOTE: Some touch modules will attach to the bracket with magnets. If the touch module allows attachment using hardware or magnets, hardware attachment is recommended. 7mm Wrench Required Hardware - Provided (2) M4 Nuts Remove the cover from the touch module.
