User Manual

38
NOTES: HHMM
(hours/minutes) and EC
selected in the tune mode.
No events used. Soak-
Deviation = 10EC (also
assured soak limit).
Minimum operating
temperature = 50EC. Ramp
and soak times of zero in
any one segment ignores
remaining segments.

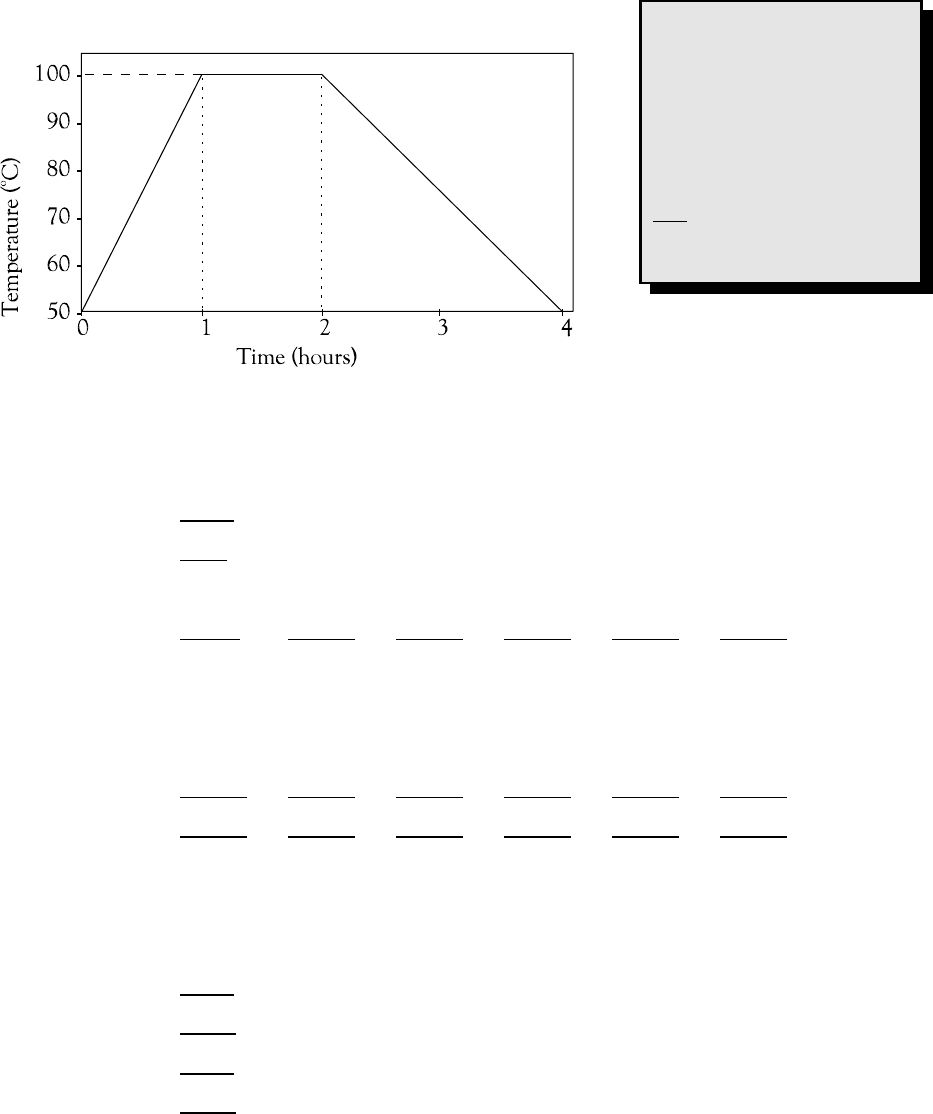

Figure 10. Example Temperature Profile
Example 5 - Program Mode
Complete characteristic curve five times.
Display Setting(s)
HL 115
PRO- 1
SEG- 1 2 3 4 5 6
RAMP 0100 0200 0000 0000 0000 0000
E-1 _____ _____ _____ _____ _____ _____
E-2 _____ _____ _____ _____ _____ _____
E-3 _____ _____ _____ _____ _____ _____
TEMP 100 0000 0000 0000 0000 0000
SOAK 0100 0001 0000 0000 0000 0000
E-1 _____ _____ _____ _____ _____ _____
E-2 _____ _____ _____ _____ _____ _____
E-3 _____ _____ _____ _____ _____ _____
SOAK-DEV 10
GOTO End
REPEAT TIMES 5
HOLD NO
