10GBASE-LR SFP+ Optical Transceiver Preliminary

FEATURES

 RoHS compliant

 Compliant to SFP+ Electrical MSA SFF-8431

 Compliant with SFF-8472 MSA

 Standard LC duplex fiber-optic connector

 I

C for integrated Digital Optical Monitoring

 Power consumption ＜1W

Description

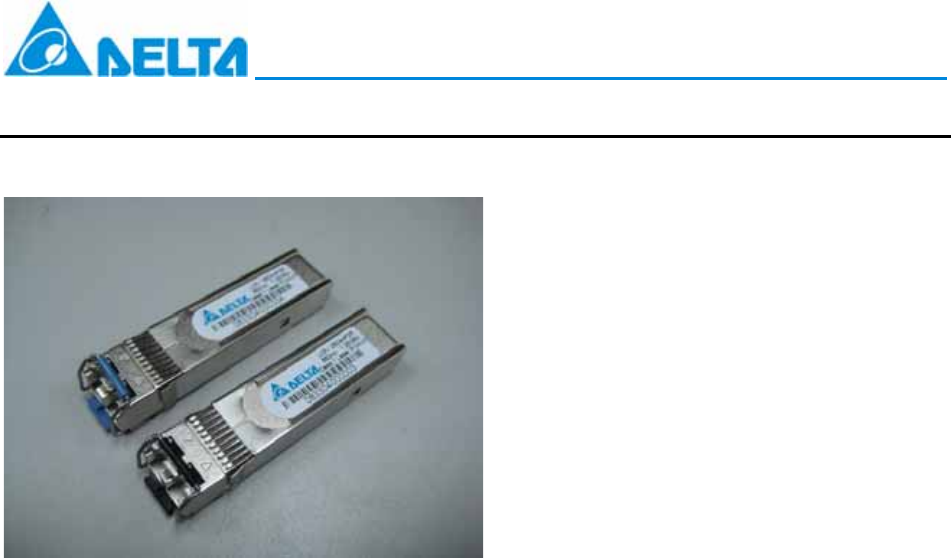

The LCP-10G3B4QDR is a hot pluggable

10Gbps small form factor plus transceiver

module integrated with the high performance

1310nm DFB Laser transmitter, high sensitivity

linear PD-TIA receiver for 10Gbps applications.

It is compliant with the SFF-8431 SFP+

Electrical Multi-source Agreement (MSA) with

five digital monitoring functions: Temperature,

Vcc, Tx optical power, Tx laser bias current and

Rx received optical power.

Applications



10G LAN switch



10G Ethernet switch/router



10G Fiber channel

 SAN applications

Performance



LCP-10G3B4QDR: Link distance up to 10km

over 9um SMF

Summary of content (14 pages)

PAGE 1
LCP-10G3B4QDR 10GBASE-LR SFP+ Optical Transceiver Preliminary FEATURES RoHS compliant Compliant to SFP+ Electrical MSA SFF-8431 Compliant with SFF-8472 MSA Standard LC duplex fiber-optic connector I2C for integrated Digital Optical Monitoring Power consumption ＜1W Description Applications The LCP-10G3B4QDR is a hot pluggable 10Gbps small form factor plus transceiver module integrated with the high performance 1310nm DFB Laser transmitter, high sensitivity linear PD-TIA receiver for 10Gbps applications.
PAGE 2
LCP-10G3B4QDR Absolute Maximum Ratings Parameter Storage Temperature Supply Voltage Range @3.3V Symbol TS VCC3 Min. -40 -0.5 Typ. Max. 85 3.6 Unit ºC V Symbol TC VCC3 VCM Min. -5 3.135 5 0 Typ. Max. +70 3.465 85 3.6 Unit ºC V % V Recommended Operating Conditions Parameter Case Operating Temperature Supply Voltage @3.3V Relative Humidity (non condensation) DC Common Mode Voltage 3.30 Low Speed Electrical Characteristics (VCC=3.135V to 3.
PAGE 3
LCP-10G3B4QDR Optical Transmitter Characteristics (TC = -5℃ to 70℃) Parameter Symbol Signaling speed (nominal) R Signaling speed variation from nominal Center Wavelength λ Side Mode Suppression SMSR Ratio Optical Modulaion OMA Amplitude Average output power AP Extinction Ratio ER Transmitter eye mask definition {X1, X2, X3, Y1, Y2, Y3} Min Typ Max Units 10.3125 1260 Gb/s ±100 ppm 1355 nm 30 dB -5.2 dBm -8.2 3.5 Notes +0.5 dBm dB {0.25, 0.40, 0.45, 0.25, 0.28, 0.40} Notes: 1.
PAGE 4
LCP-10G3B4QDR SFP+ Transceiver Electrical Pad Layout 4 DELTA ELECTRONICS, INC. Revision: 0B 2008/9/5 www.deltaww.
PAGE 5
LCP-10G3B4QDR Module Electrical Pin Definition Pin Logic 1 Symbol VeeT Name/Description Module Transmitter Ground 1 Module Transmitter Fault 2 Transmitter Disable; Turns off transmitter laser output 3 2 LVTTL-O TX_Fault 3 LVTTL-I TX_Disable 4 LVTTL-I/O SDA 2- write Serial Interface Data Line 5 LVTTL-I/O SCL 2- write Serial Interface Clock 6 MOD_ABS Note Module Absent, connected to VeeT or VeeR in the module 4 7 LVTTL-I RS0 Not Implement 8 LVTTL-O RX_LOS 9 LVTTL-I RS1 N
PAGE 6
LCP-10G3B4QDR Low speed electrical control pins and 2-wire interface In addition to the 2-wire serial interface, the SFP+ module has the following low speed pins for control and status: ‧ ‧ ‧ ‧ ‧ TX_Fault TX_Disable RS0/RS1 MOD_ABS RX_LOS 1 TX_Fault .TX_Fault is a module output pin that when High, indicates that the module transmitter has detected a fault condition related to laser operation or safety. The TX_Fault output pin is an open drain/collector and must be pulled p to the Host_Vcc with 4.
PAGE 7
LCP-10G3B4QDR Recommend Circuit Schematic 7 DELTA ELECTRONICS, INC. Revision: 0B 2008/9/5 www.deltaww.
PAGE 8
LCP-10G3B4QDR Package Outline Drawing for Metal Housing with Bail de-latch Complies with 21 CFR 1040.10 and 1040.11 Made in x FS Latch Color Identifier Blue 8 DELTA ELECTRONICS, INC. Revision: 0B 2008/9/5 www.deltaww.
PAGE 9
LCP-10G3B4QDR Timing parameters for SFP+ management Parameter TX_DISABLE Assert time TX_DISABLE Negate time Time to initialize 2-wire interfase Time to initialize Time to initialize cooled module Time to Power Up to Level 2 Time to Power Down from Level 2 TX_Fault assert TX_Fault assert for cooled module TX_Fault Reset Module Reset RS0, RS1 rate select timing for FC RS0, RS1 rate select timing non FC RX_LOS assert delay RX_LOS negate delay Symbol t_off t_on Min. Max.
PAGE 10
LCP-10G3B4QDR Enhanced Digital Diagnostic Interface The memory map in the following describes an extension to the memory map defined in SFP MSA. The enhanced interface uses the two wire serial bus address 1010001X(A2h) to provide diagnostic information about the module’s present operating conditions.
PAGE 11
LCP-10G3B4QDR EEPROM Serial ID Memory Contents (2-Wire Address A0h) Address 00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 Hex 03 04 07 20 00 00 00 00 00 00 00 03 67 00 0A 64 00 00 00 00 44 45 4C 54 41 20 20 20 20 20 20 20 20 20 20 20 00 00 00 00 4C 43 50 ASCII 10G Base-LR 10km 10km D E L T A L C P Address 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 8
PAGE 12
LCP-10G3B4QDR Digital Diagnostic Monitoring Interface Alarm and Warning Thresholds (2-Wire Address A2h) Address # Bytes 00-01 02-03 04-05 06-07 08-09 10-11 12-13 14-15 16-17 18-19 20-21 22-23 24-25 26-27 28-29 30-31 32-33 34-35 36-37 38-39 40-45 56-91 92-94 95 96-97 98-99 100-101 102-103 104-105 106-109 110 111 112-119 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 16 36 3 1 2 2 2 2 2 4 1 1 8 Name Temp High Alarm Temp Low Alarm Temp High Warning Temp Low Warning Voltage High Alarm Voltage Low Alarm Voltage Hig
PAGE 13
LCP-10G3B4QDR 6) State/ Control Bits Byte 110 110 110 110 110 110 110 110 Bit 7 6 5 4 3 2 1 0 Name Tx Disable State Soft Tx Disable Reserved Rate Select State Soft Rate Select Tx Fault LOS Data_Ready_Bar Description Digital state of the Tx disable input pin Read/ Write bit that allow software disable of laser Rate Select State Software Rate Select State Digital state of the Tx fault output pin Digital state of the LOS output pin.
PAGE 14
LCP-10G3B4QDR Regulatory Compliance Feature Test Method Laser Eye Safety Component Recognition Performance FCC Part15 Class B EN 55022 Class B (CISPR 22A) Electromagnetic Interference (EMI) Radio Frequency Electromagnetic Field Immunity Electrostatic Discharge (ESD) to the Duplex LC Receptacle Electrostatic Discharge (ESD) to the Electrical Pins Reference Contact Discharge Air Discharge IEC/EN 61000-4-2 (1) Satisfied with electrical characteristics of product spec.
