Chapter 2 Creating and Editing Screens|ScrEdit Software User Manual
Revision Apr. 30th, 2007, 2007PDD23000002 2-99
Other tab in Configuration option
Enable Edit Multi-
Language User Interface
Use this option can enable multi-language user interface.
The user can view multi-language display in property table
if this option is selected. The editing interface will be

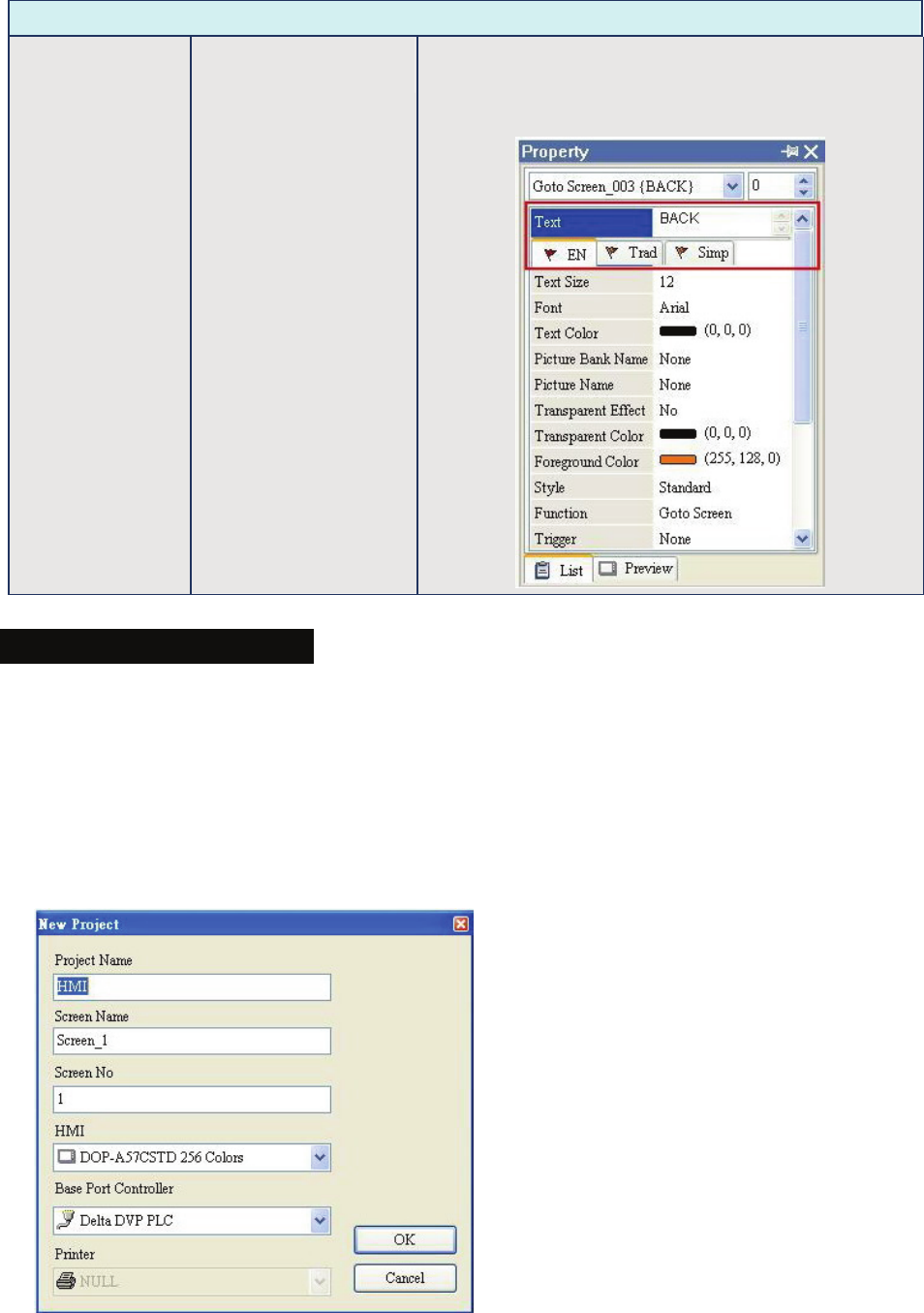

shown as the figure below:
Multi Language Function Example
Example:
Create a Screen that has “English”, “Traditional Chinese” and “Simplified Chinese” three languages selection
for the user to switch. Also, teach the user how to set an “Increment” button to switch the language selection
within the screen.
1. Create a new project.
Select HMI model “DOP-A57CSTD 256 Colors”.
2. Create two button elements on the screen. “Set” and “Increment” these two button elements.
