Jumpers and Connectors 161
SAS Backplane Board Connectors

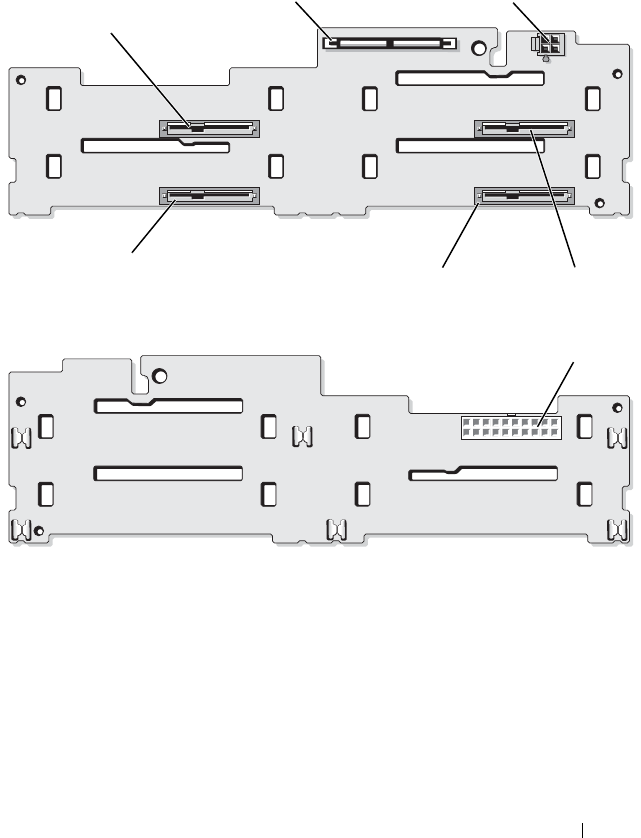

Figure 6-3 shows the location of the connectors on the SAS backplane board.
Figure 6-3. SAS Backplane Board Components: 3.5-inch x4
1 drive 0 (SASDRV0) 2 SAS (SAS_A)
3 tape drive power connector
(J_TBU_PWR)
4 drive 2 (SASDRV2)
5 drive 3 (SASDRV3) 6 drive 1 (SASDRV1)
7 backplane power
(J_BP_PWR)
5
7
front
back
3
2
1
6
4
Book.book Page 161 Monday, September 14, 2009 12:57 PM
