![](/manual/dell/powervault-dl2000/storage-system-hardware-owners-manual/images/img-110.png)
Installing System Components 111

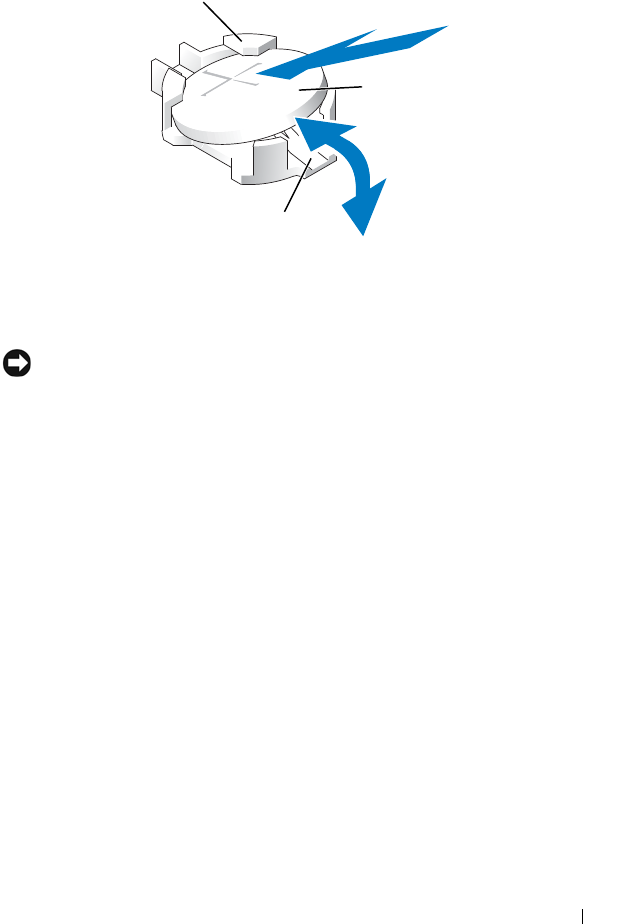

Figure 3-22. Replacing the System Battery
NOTICE: To avoid damage to the battery connector, you must firmly support the
connector while installing or removing a battery.
5
Install the new system battery.
a
Support the battery connector by pressing down firmly on the positive
side of the connector.
b
Hold the battery with the "+" facing up, and slide it under the
securing tabs at the positive side of the connector.
c
Press the battery straight down into the connector until it snaps into
place.
6
Close the system. See "Closing the System" on page 67.
7
Reconnect the system to its electrical outlet and turn the system on,
including any attached peripherals.
8
Enter the System Setup program to confirm that the battery is operating
properly. See "Entering the System Setup Program" on page 45.
9
Enter the correct time and date in the System Setup program's
Time
and
Date
fields.
10
Exit the System Setup program.
1 positive side of battery connector 2 system battery
3 negative side of battery connector
2
3
1
Book.book Page 111 Monday, September 14, 2009 12:57 PM
