Configuring the Dell™ PowerVault™ MD3000i Array as a Backup Target for CommVault™ Simpana™
Page 7

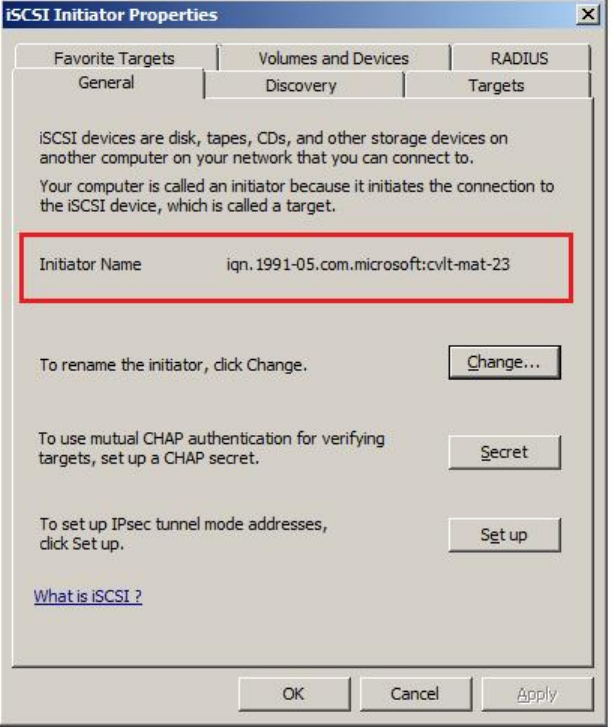

Figure 3: iSCSI Initiator Name
6. For the Specify Host Group step, choose, NO: This Host will NOT share access to the same
virtual disks with other hosts
7. Click Finish to complete the Host setup.
8. Click on the Configure tab and select Create Host-to-Virtual Disk Mappings.
9. Select the newly created Host from the list of available hosts and click Next
10. Select all Virtual Disk(s) to be mapped to the DL Backup to Disk Appliance Host and click
Finish.
