6 Dell PowerVault 56F Systems Rack Installation Guide

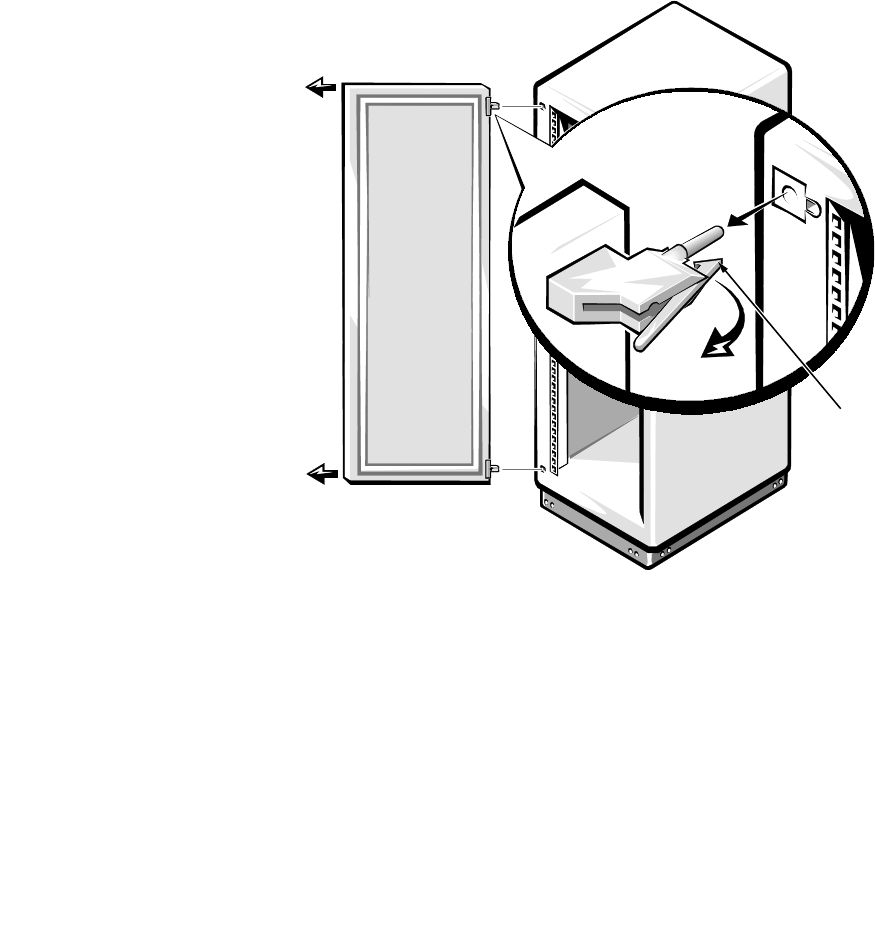

If you have a 42-U rack cabinet
, perform the following steps (see Figure 5):
a. One person should grasp the top of the door to stabilize it. The other person
should grasp the bottom of the door.
b. The person holding the bottom of the door should press the release lever on
the bottom hinge and then pull the bottom of the door away from the rack
cabinet a few inches.
c. The person holding the top of the door should press the release lever on the
top hinge and then pull the door away from the rack.
!
Repeat steps 1 and 2 to remove the back door from the rack.
Store the doors in an area where they will not fall over while you install the kit.
hinge
release
lever
