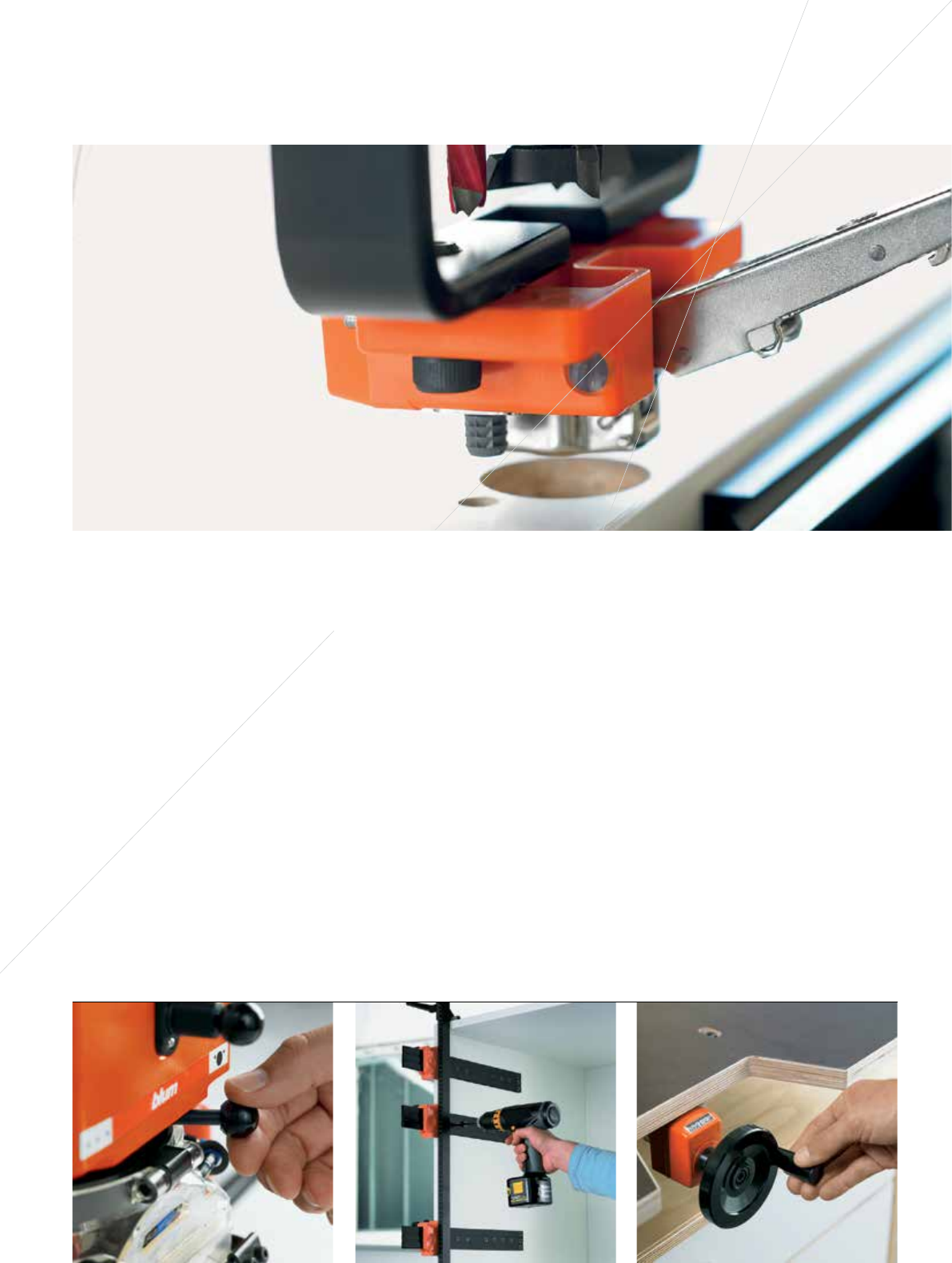

Blum Assembly Devices Precise assembly is required to ensure Blum products function optimally. Designed and manufactured by Blum to support assembly and installation to the highest standard, Blum Assembly Devices make the Blum product experience fast and efficient in the workshop or on site with customers. The wide range of drilling and insertion machines provide you with the right solution for common assembly situations.
TANDEMBOX antaro Style with a sophisticated edge Be amazed at the sophistication and freedom of design with TANDEMBOX antaro. TANDEMBOX antaro has a clear style – whether it’s open with a gallery or as a closed drawer with a side design element. TANDEMBOX antaro has minimalist side options to create the look you want, with proven TANDEM running action and BLUMOTION soft-close technology which ensures drawers glide open and close softly.
Assembly Devices DYNALOG D.2 MINIPRESS PRO D.4 MINIPRESS PRO - Drill Heads & Accessories D.5 MINIPRESS P D.6 MINIPRESS P - Drill Heads & Accessories D.7 Drawer Assembly Devices BOXFIX M D.8 Centre Bit D.8 Universal Drilling Template D.9 Universal Drilling Template - SPACE CORNER Application D.9 Universal Individual Template D.10 Universal Individual Template - SPACE CORNER Application D.
Assembly Devices DYNALOG Drawers, Hinges & Assembly Devices D DYNALOG Cabinet Planning & More DYNALOG - CABINET PLANNING AND MORE • • • DYNALOG, the Blum planning and ordering software, enables flexible cabinet planning and easy ordering of Blum fittings. DYNALOG can be learned quickly and is easy to operate even if you only use it occasionally.
Assembly Devices DYNALOG DYNALOG 2.9 • • • • • DYNALOG includes 3 modules: DYNACAT (CD-ROM product catalogue) DYNASHOP (shopping basket) DYNAPLAN (cabinet planner) Its modular design makes it easy to use and supports product selection, ordering and cabinet planning Description DYNALOG 2.9 Blum No. Code DAA.
Assembly Devices MINIPRESS PRO - VERSATILE MINIPRESS PRO • • • Take advantage of the MINIPRESS PRO’s versatility for easy vertical cabinet, door and front drilling. Blum hardware fittings can be assembled with absolute workshop precision and efficiency thanks to the quick and easy MINIPRESS PRO options. MINIPRESS PRO has many components so you can customise the amount of applications you would like to achieve. Drawers, Hinges & Assembly Devices D D.
Assembly Devices MINIPRESS PRO - DRILL HEADS & ACCESSORIES DRILLING & INSERTION HEAD DRILLING HEAD • • • • • • • 3 spindles Drilling hinge pattern Hinge insertion (additional RAM required 1-344-025) 1 x Black and 2 x Orange drill bits required (sold separately) Description MINIPRESS PRO drilling and insertion head Code MZK.2000 1-340-003 Description MINIPRESS PRO drilling head Blum No Code MZK.2810.
Assembly Devices MINIPRESS P - SPECIALISED MINIPRESS P • • MINIPRESS P is a specialised machine to carry out precise routine drilling and insertion of Blum fittings to maximise user efficiency. With additional standard inclusions such as, Hold Clamps, Quick Connect Chucks, Calibrated Display, 16mm ruler adjustment, tool holder, MINISTICKS and MINISTICK drilling charts the MINIPRESS P is now even safer and more accurate. Drawers, Hinges & Assembly Devices D Description MINIPRESS P Kit Code M53.
Assembly Devices MINIPRESS P - DRILL HEADS & ACCESSORIES 9 SPINDLE DRILLING HEAD 8 SPINDLE DRILLING HEAD • • • • • • • • In line (Horizontal) drilling capability Shelf Holes Retro Kit needed for pre 2010 model MINIPRESS 4 x Black and 5 x Orange drill bits required (sold separately) Description MINIPRESS P, 9 Spindle Drilling Head Blum No Code MZK.190S 1-343-111 Blum No Code MZL.1250 1-344-055 Description Ruler Supports (suits MZL.1250) Blum No Code MZV.
Assembly Devices DRAWER ASSEMBLY DEVICES BOXFIX M • • • • • • • Designed to assemble TANDEMBOX Drawer side lengths 270 to 650mm Cabinet widths 275 to 1200mm Back heights up to 350mm BOXFIX M includes: - Centre Bit x 1 - Width Stop x 1 D Drawers, Hinges & Assembly Devices Description BOXFIX M Blum No. Code ZMM.3350 1-343-005 CENTRE BIT Description Centre Bit Replacement Bit 2.6mm Blum No. Code MO1.ZZ03 2-315-905 M01.
Assembly Devices DRAWER ASSEMBLY DEVICES UNIVERSAL DRILLING TEMPLATE • • • • • • • Template for pre-drilling the fixing positions for cabinet profiles, lift mechanisms, mounting and adapter plates The template can be used with assembled and unassembled cabinets Set the height and depth position using the calibration Suitable for overlay and inset applications Includes drilling depth stop Includes 5mm (system screws) and 2.
Assembly Devices DRAWER ASSEMBLY DEVICES UNIVERSAL INDIVIDUAL TEMPLATE • • • • • • • Template for pre-drilling the fixing positions for cabinet profiles, lift mechanisms, mounting and adapter plates The template can be used with assembled and unassembled cabinets Set depth position using the calibration Suitable for overlay and inset applications Includes drilling depth stop Includes 5mm (system screws) and 2.
Assembly Devices DRAWER ASSEMBLY DEVICES DRILLING TEMPLATE FOR SPACE CORNER WITH SYNCROMOTION • Template for drilling the fixing positions for the SPACE CORNER SYNCROMOTION fittings D SYNCROMOTION Drilling Place drilling template on the side and drill for corner front piece Description Drilling Template For SPACE CORNER With SYNCROMOTION Complete drilling pattern Material Nylon/Steel Blum No. Code ZML.
Assembly Devices DRAWER ASSEMBLY DEVICES DRILLING TEMPLATE FOR MOVENTO AND TANDEM • • Template for drilling the runner hook postions Pre-drilling the MOVENTO/TANDEM locking device fixing positions D Drawers, Hinges & Assembly Devices Hook Drilling Drilling for TANDEM-locking Pre-drilling of locking device fixing positions Pre-drilling of locking device fixing positions Description Drilling Template for MOVENTO and TANDEM Pre-drilling of locking device fixing positions Screw on locking device Mater
Assembly Devices DRAWER ASSEMBLY DEVICES DRILLING TEMPLATE FOR SERVO-DRIVE BRACKET PROFILE ATTACHMENT • • • • • • Template for marking or pre-drilling the fixing positions for the SERVO-DRIVE bracket profile adapter The drilling template can be attached to an assembled and unassembled cabinet as well as to individual components (bottom panel/top panel/cross bar) Assembly on a marking line Suitable for TANDEMBOX, MOVENTO and TANDEM Includes 1 x drilling depth spacer 10mm Includes 1 x marking template 10mm
Assembly Devices DRAWER ASSEMBLY DEVICES TEST JACK CONNECTOR FOR SERVO-DRIVE • • Enables you to easily check the correct cabling of SERVO-DRIVE components using a toolfree, plug-in connector Can only be used with the SERVO-DRIVE transformer D Drawers, Hinges & Assembly Devices Checking SERVO-DRIVE components D.
Assembly Devices DRAWER ASSEMBLY DEVICES METABOX MARKING GAUGE • • • • • Suits METABOX Single (320) and Full Extension (330) M (86mm), K (115mm) and H (150mm) heights Includes Left and Right Gauge Right hand Gauge has adjustable stop for correct drawer overlay set up D Material Nylon/Steel Blum No. Code ZML.1500 1-285-694 METABOX FRONT BRACKET INSERTION TOOL • • Suits METABOX ZSF.1300 and ZSF.
Assembly Devices HINGE ASSEMBLY DEVICES DRILLING HEAD - BLUM HINGE PATTERN • • • • • To drill the Blum hinge pattern Fourth drilling spindle to drill fixing holes for horizontal mounting plates and connectors For all drilling and insertion machines, dowel insertion machines etc.
Assembly Devices HINGE ASSEMBLY DEVICES DRILLING TEMPLATE FOR HINGES • • • • Template for drilling the side fixing positions for hinges (Ø 8 and/or Ø 2.
Assembly Devices HINGE ASSEMBLY DEVICES TEMPLATE FOR HINGE, PLATES AND AVENTOS • • • • • Template for drilling the fixing positions for mounting plates (Ø 2.
Assembly Devices HINGE ASSEMBLY DEVICES DRILLING TEMPLATE FOR BLUMOTION/TIP-ON • • Template for drilling insert BLUMOTION for doors, as well as TIP-ON for doors and AVENTOS Assembly on a marking line D BLUMOTION assembly Position template on marking line Position template on marking line Distance from cabinet inner side to centre Distance from cabinet inner side to centre drilling 7.5 mm drilling 7.
Assembly Devices HINGE & AVENTOS ASSEMBLY DEVICES CABINET ANGLE TEMPLATE • • Template for determining the cabinet angle Determining the correct hinge solution Drawers, Hinges & Assembly Devices D Position template on angled cabinet Note cabinet angle and angled application A suitable hinge solution depends on the cabinet angle or angled application Description Cabinet Angle Template Number refers to applicable hinge. See Section B for specific selection Material Nylon Blum No Code 65.5810.
