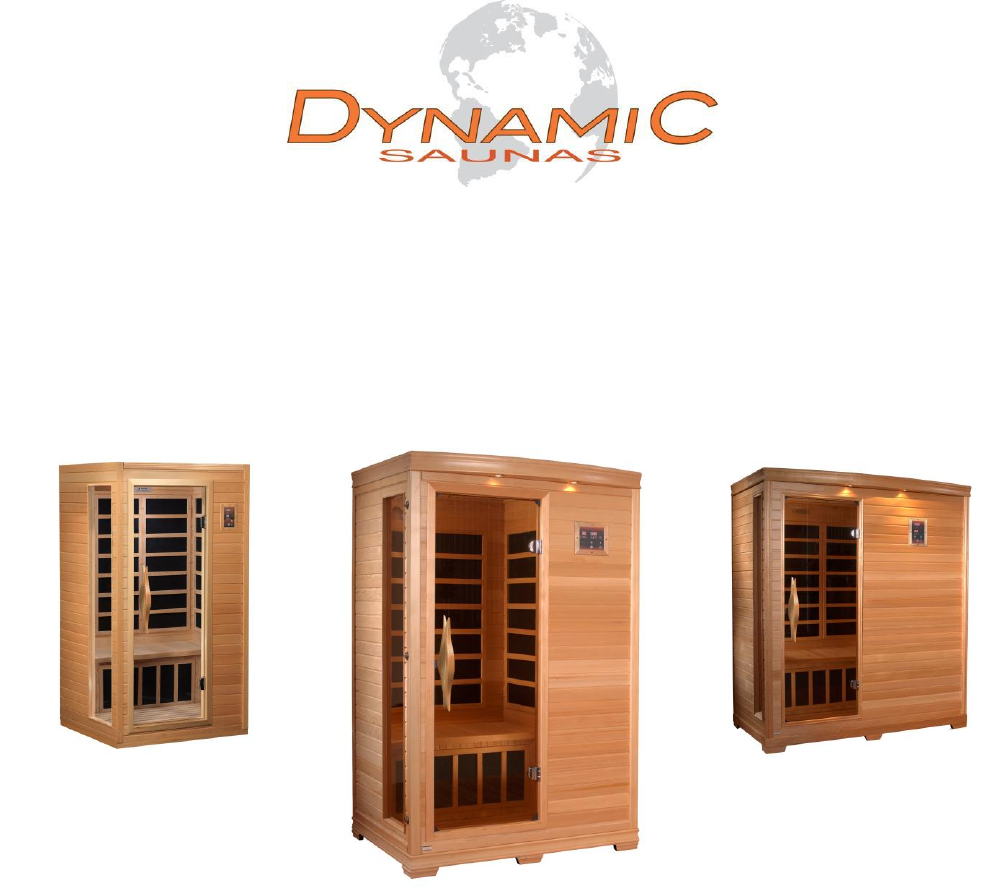

DYN3106 / DYN3206 / DYN3306 1 – 3 Person Saunas OWNER’S MANUAL FOR CARBON MODEL SAUNAS INDOOR USE ONLY 120VAC 15 AMP ( 1 & 2-PERSON MODELS) DEDICATED CIRCUIT 120VAC 20 AMP (3-PERSON MODELS) DEDICATED CIRCUIT Sauna: Now you can enjoy the European secret for youthful vitality. Carefully and thoroughly read this manual before using the sauna. We recommend keeping this manual for regular review and future reference.
*PLEASE READ INSTRUCTIONS BEFORE ASSEMBLY* DYN-3106 DYN-3206 *The above assembly diagrams are for quick reference visual guides only. All sauna models are not shown. Parts and accessories may vary.
*PLEASE READ INSTRUCTIONS BEFORE ASSEMBLY* DYN-3306 *The above assembly diagram i s for a quick reference visual guide only. All sauna models are not shown. Parts and accessories may vary.
WHAT ARE INFRARED RAYS? Infrared is the band of light we perceive as heat. We cannot see this band of light with the naked eye, but we can feel this type of light in the form of heat. Our sun produces most of its energy output in the infrared segment of the spectrum. Infrared rays heat your body without having to heat the air in-between. This process is called conversion. The infrared is divided into 3 segments by wavelengths measured in microns: near infrared: 0.76-1.5 microns; middle infrared: 1.5-5.
HOW IT WORKS Infrared Saunas differ from traditional saunas in that they use infrared radiant energy to directly penetrate into the body's tissue to produce perspiration. Traditional saunas use steam to heat the air inside the sauna, which then heats your body until you begin to perspire. In order for this to be effective, temperatures would need to reach in the upwards of 190 degrees Fahrenheit. Infrared saunas only need a temperature of up to 120 degrees Fahrenheit to obtain the same effect.
Benefits include, but are not limited to: - Pain relief from Rheumatoid Arthritis - Relaxing muscle spasms - Increases blood circulation - Cardiovascular conditioning - Clears rashes, acne - Reduces cellulite - Removes toxins and mineral waste - Reduces stress and fatigue - Enhances skin tone SAUNA MAINTENANCE Since infrared saunas do not require hot rocks, water, or steam to operate, they require very little maintenance. You can simply wipe it down with water and a soft clean cloth.
TABLE OF CONTENTS Product Introduction 7 Parts Description 8 Assembly Instructions 13 Operating the Sauna 19 Tips for Using Your Sauna 21 Safety Instructions 22 Safeguards for Your Sauna 23 Troubleshooting Guide 23 Warranty 25 Warranty Card 27 WARNING: Visually inspect all heaters before assembly to make sure they are not damaged. Any excessive vibrations during transport could cause damage to the heating elements.
PARTS DESCRIPTION DYN-3106 DYN-3206 8
DYN-3306 9
I. Power Supply (Control Box) The POWER SUPPLY BOX is the control center of the sauna room. It is installed on the ROOF PANEL and has input/outputs connected to it as seen below. (see Figure 1) Figure 1 MAIN POWER HT1, HT2, HT3, HT4 LIGHT ROOF LAMP CTRL CD/SIG main power of the sauna room emitter power output cords reading lamp power output cord roof lamp power output cord (optional) control panel connection signal cable group II.
III. Buckles A. External Buckles The external buckles are used to connect the REAR WALL PANEL to the LEFT SIDE WALL PANEL and RIGHT SIDE WALL PANEL. Also the external buckles are used to connect the FRONT WALL PANEL to the LEFT SIDE WALL PANEL and RIGHT SIDE WALL PANEL. (see Figure 2) Figure 2 B. Wood Guide Inserts on the Floor Panel The wood guide inserts (quarter round moldings) indicated by the arrows in the diagram below are located on the FLOOR PANEL.
Figure 4 BENCH HEAT EMITTER Cut-Outs Figure 5 B. Front of Sauna Room Understanding The Wall Panels The REAR WALL PANEL will have 2 carbon heat emitter panels (3 carbon heat emitter panels on the 3 person model) and both SIDE WALL PANELS will have (1) carbon heat emitter panel each (2 carbon heat emitter panels on the 2 and 3 person models).
C. Roof Panel The ROOF PANEL houses the power supply, speakers, MP3 AUX jack, and reading lamp. Once installed, all the wiring harnesses, plugs, and connections will sit on the exterior side of the roof panel. V. MP3 Auxiliary Socket The MP3 Auxiliary Socket allows you to connect a MP3 player or radio (with auxiliary out function) to the speakers for your listening pleasure. (see figure 8) Figure 8 Assembly Instructions A. Choose a good location to assemble the sauna 1.
B. Installing the FLOOR PANEL 1. Place the FLOOR PANEL on the floor. Some models have wood braces that must be installed on the underside of the FLOOR PANEL. Please check to see if such wood braces were packed in the box containing the FLOOR PANEL. If so, mount according to the designated labels located on the underside of the FLOOR PANEL. Once installed, turn the FLOOR PANEL right side up. Make sure the front side of the FLOOR PANEL is facing the correct direction.
Figure 12 E. Installing the FRONT WALL PANEL with GLASS DOOR 1. Place the FRONT WALL PANEL onto the FLOOR PANEL. Align the Buckles on the FRONT WALL PANEL and the LEFT SIDE WALL PANEL. Then latch the Buckle shut. Do the same for the RIGHT SIDE WALL PANEL. (see Figure 13) Figure 13 F. Installing the BENCH HEAT EMITTER PANEL, BENCH, and FLOOR HEAT EMITTER PANEL 1. Installing the FLOOR HEAT EMITTER PANEL can be done by laying it down on the FLOOR PANEL.
Figure 14 Figure 15 Figure 16 G. Installing the ROOF PANEL 1. The side of the ROOF PANEL with the power supply (control box) is the top of the ROOF PANEL. 2. The edge nearest the power supply is the front of the ROOF PANEL. Be careful of the wires coming from the SIDE and REAR PANELS when you set the ROOF PANEL down onto the panels. Feed the wires through the holes in the ROOF PANEL. Feed the control cable and buzzer plug up through the ROOF PANEL. 3.
Figure 17 I. Figure 18 Figure 19 Installing the TEMPERATURE SENSOR 1. Enter the sauna and remove the protective covering (masking tape) from the TEMPERATURE SENSOR. Situate the TEMPERATURE SENSOR so that it is vertical and pointing downward. (see Figure 20) Figure 20 Note: Some sauna models are shipped with a spare TEMPERATURE SENSOR in case the TEMPERATURE SENSOR is damaged during transit. The manufacturer decides this according to sauna models and packaging. J. Putting on the ROOF COVER 1.
K. Optional MP3 Shelf 1. If your sauna comes with the optional MP3 shelf, use the two screws provided to mount the self on either the side panels or front panel. (see figure 22) Figure 22 L. Assembling the RADIO BOX (optional) 1. Locate the wood sides for the CD/Radio housing. There is one for the front, side, and bottom. (see figure 15) 2. Attach “A” on side panel with “A” on bottom panel and insert screws. (see figure 16) 3.
3. 5. Connect the antenna plug to the CD/RADIO. (see figure 20) Insert the CD/RADIO into the RADIO BOX. It is not necessary to mount the CD/RADIO once you slide it into the RADIO BOX because the radio will just sit in place. (see figure 21) Figure 18 Figure 19 Figure 20 Figure 21 Operating the Sauna NOTE: Before the sauna is turned on, remove plastic protective covering from the CONTROL PANELS.
3. Press the up/down arrows under the TIME DISPLAY to adjust the amount of time you want the sauna to remain on. Press the C/F button to choose between Celsius and Fahrenheit. Press the up/down arrows under the TEMPERATURE DISPLAY to adjust the temperature setting. Once you have set these adjustments to the desired settings, press the START/WORK button. If you don’t press the button for 5 seconds, the control panel will stop flashing and the set-up values will be memorized.
Power On/Off: Press to control the main power of the sauna Power Indicator: Indicates the status of the sauna’s main power Work Start/Stop: Press to control the working functions of the sauna Work Indicator: Indicates the working status of the sauna Heat Indicator: Indicates the status of heating function Light: Press to control the lighting function Time Display: Displays the heating time of the sauna in minutes Time: Press to adjust the setting of the timer Temperature Display: Displays the actual interio
5) At the first sign of a cold or flu, increasing your sauna sessions may be beneficial in boosting your immune system and decreasing the reproductive rate of viruses. 6) To help relieve sore and tense muscles, massage the affected areas during your sauna session. 7) To treat your ankles and feet more effectively, you can elevate them and move them close to one of the heat emitters to achieve a deep heating effect.
15. Do not use the sauna during an electrical storm to avoid risk of shock. 16. Do not continuously switch the power on and off as it will compromise the life of the electrical components. 17. Your hands must be dry and free of moisture before plugging and unplugging cords and wiring harnesses from the power supply and circuit boards. Never operate the sauna with wet hands or wet feet to avoid risk of electric shock. Never touch the metal prongs of the plug. 18. Do not attempt to make any repairs yourself.
to wait about five minutes to confirm if the heat emitters are generating heat. Remove the original temperature sensor from its hole and replace it with the spare one. 2. Control Panel Malfunctioning Solution: The control panel will turn on, but will not turn off. Go to the roof and locate the connection labeled “CTRL”. This was connected when the roof was placed on top of the sauna room.
Limited LifetimeWarranty *Limited Lifetime Warranty: Golden Designs, Inc. warranties the heating elements and electronics against defects in material and workmanship for the life of the product from the original date of purchase. This sauna is for INDOOR use only. Placing your sauna outdoors will VOID this warranty. Any damage due to exposure to outdoor elements such as rain, snow, sun, wind or extreme temperatures will not be covered by this warranty.
PAGE INTENTIONALLY LEFT BLANK 26
WARRANTY CARD Congratulations on your purchase of an Infrared Sauna from Golden Designs, Inc. Please take the time to complete the following Warranty Card and mail it back to: Golden Designs, Inc. 1920 S. Proforma Ave Ontario, CA 91761 Please include a copy of your sales receipt showing date of purchase as this will serve as proof of purchase. Warranty will be VOID if the following warranty card is not mailed back within 60 days of purchase date along with proof of purchase.
