Installation Guide

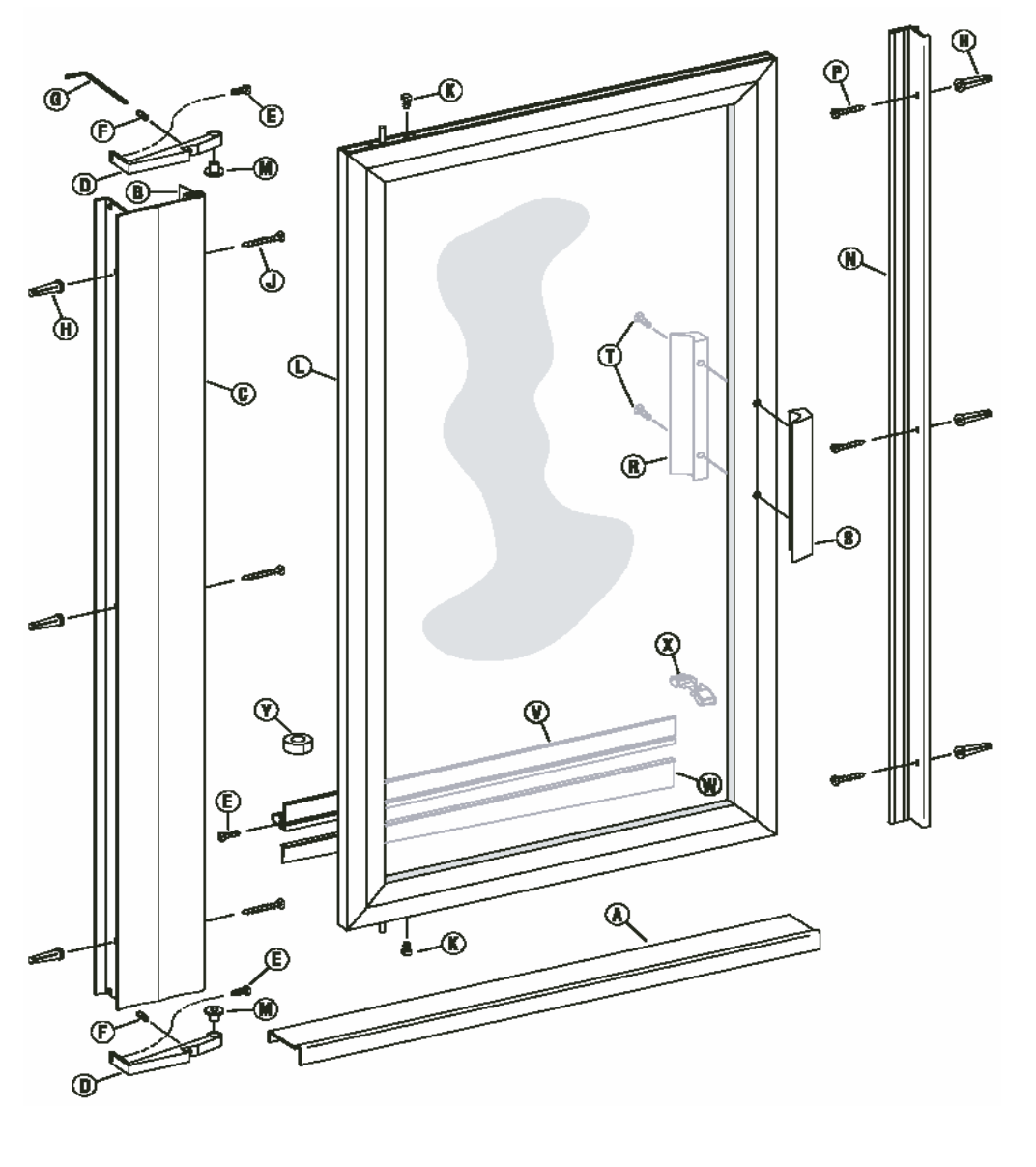

PARTS LIST
A. 1 Curb J. 3 #8 x 2” Truss Head Screws T. 2 #6 x 1 1/4” Round Head
B. 1 Jamb Wiper Vinyl K. 2 #10 x 7/16” Sq. Hd Set Screws V. 1 Drip Rail
C. 1 Pivot Jamb L. 1 Glazed Door Panel W. 1 Tapered Drip Vinyl
D. 2 Pivot Brackets M. 2 Nylon Pivot Bushing X. 2 Drip Plugs
E. 3 #6 x 3/8” Truss Head Screws N. 1 Strike Jamb (Magnetic) Y. 1 Roll Drip Tape
F. 2 #8 x 1/8” Allen Set Screws P. 3 #8 x 1 ½” Flat Head Screws
G. 1 Allen Wrench (5/64”) R. 1 Interior Handle
H. 6 Plastic Wall Anchors S.
1 Exterior Handle
** If installing on a fiberglass unit you may need to snip outside corner
to match corners on wall jambs and tub tracks to match radius on fib-
erglass unit **
QCI5001 Rev 0 Page 3 Certified 06/21/2016
