Status Reporting System
General Status Register Model
Condition Register and Transition Filter
When the status register has a transition filter, there is a lower register called a condition
register under the event register. The transition filter is between the event register and the
condition register.
The transition filter enables you to select a positive and/or negative transition of the
condition register bit in order to set a bit in the corresponding event register. For example,
using the negative transition filter to set bit 3 to “1” causes bit 3 of the event register to be
set to “1” when bit 3 of the condition register makes a negative transition, that is, changes
from 1 to 0.

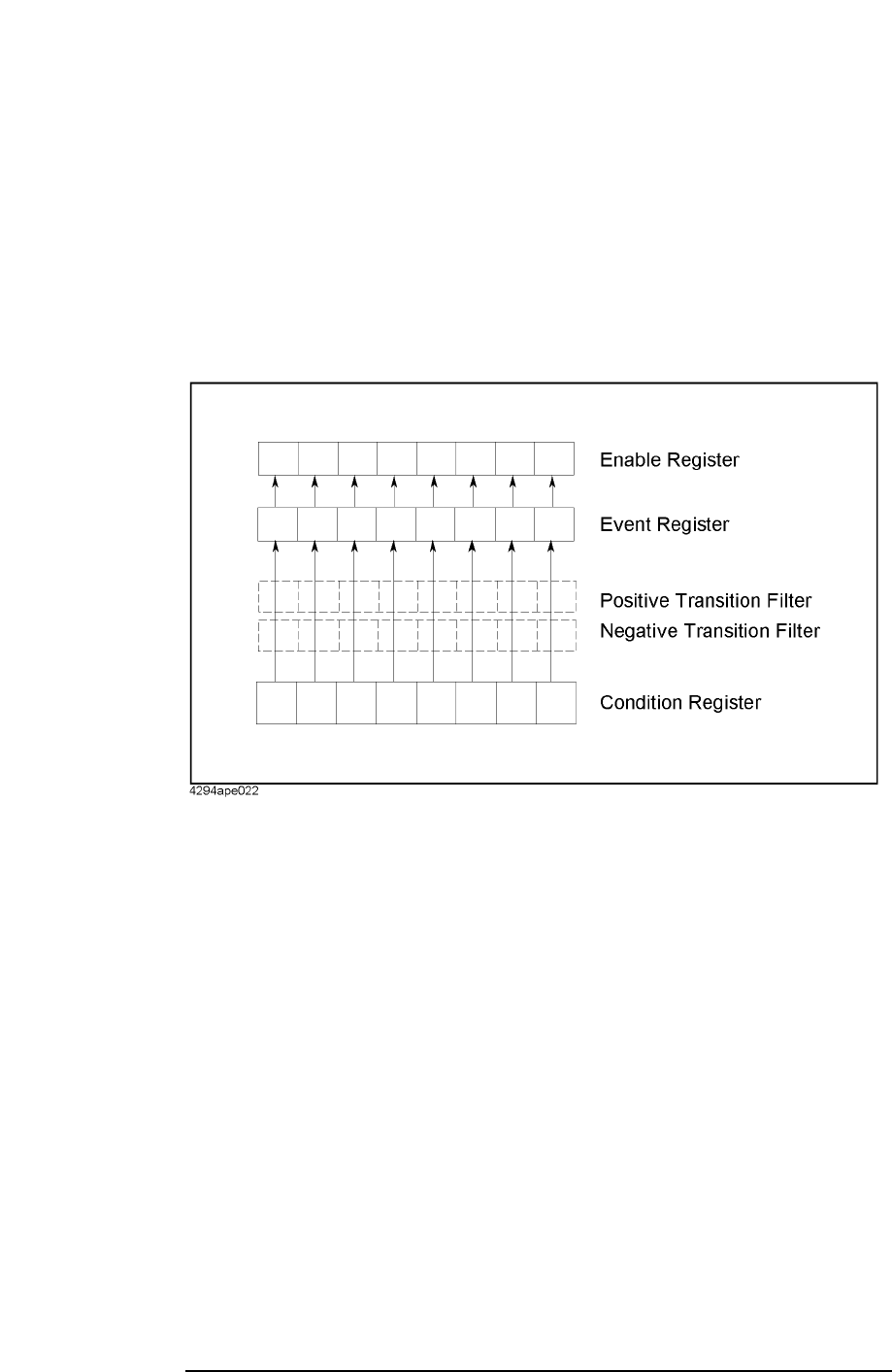

Figure B-2 Transition filter and condition register
In the E5061A/E5062A, the following registers provide a condition register and transition
filter:
Operation status register
Questionable status register
Questionable limit status register
Questionable limit extra status register
Questionable limit channel {1-16} status register
Questionable limit channel {1-16} extra status register
