Controlling Using Telnet Server

This section describes how to control the E5061A/E5062A using WinSock API in the

Windows environment, with a sample program written in Visual Basic (VBA macro). You

can find the source file of this program, named ctrl_lan.xls (Microsoft Excel file), on the

sample program disk.

Using VBA macro

Opening ctrl_lan.xls in Microsoft Excel display a screen as shown in Figure 12-5.

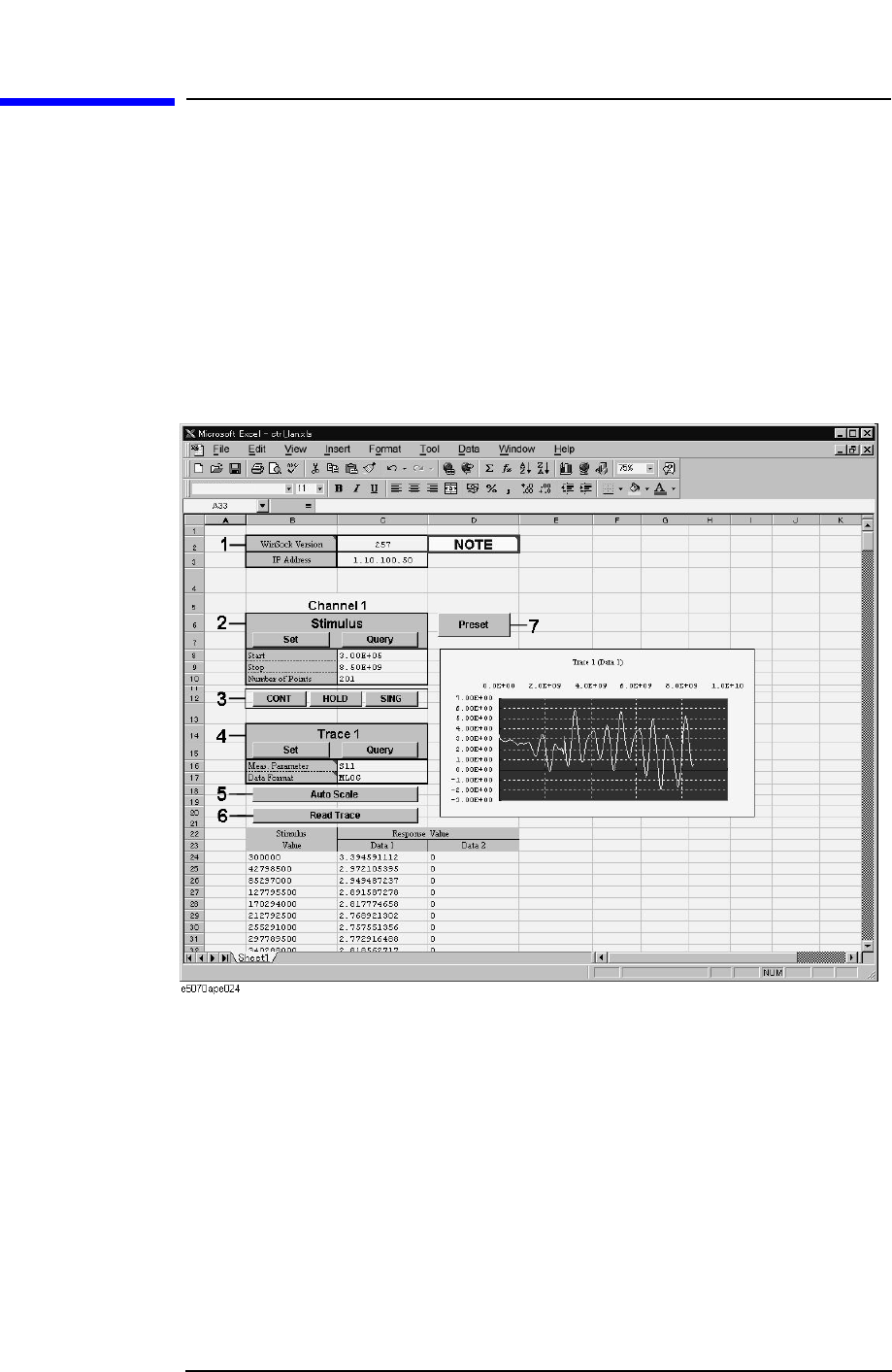

Figure 12-5 ctrl_lan.xls

For how to use each element in Figure 12-5, refer to the following description.

We begin describing the part 1. Enter the version number of WinSock API in the cell right

side of “Winsock Version.” The version number is obtained by multiplying 256 by the

major version then adding the minor version. For example, when the version of your

Winsock API is 1.1, the version number is obtained as follows: 256×1+1=257. Enter the IP

address of the E5061A/E5062A in the cell right side of “IP Address.” This VBA macro

will not work properly without appropriate values in the two cells.

In the part 2, sweep range (start and stop points) and number of measurement points are set.

Clicking the button labeled as “Set” executes setting operation as specified with the setting

table, while clicking the button labeled as “Query” retrieves the current settings of the

E5061A/E5062A.
